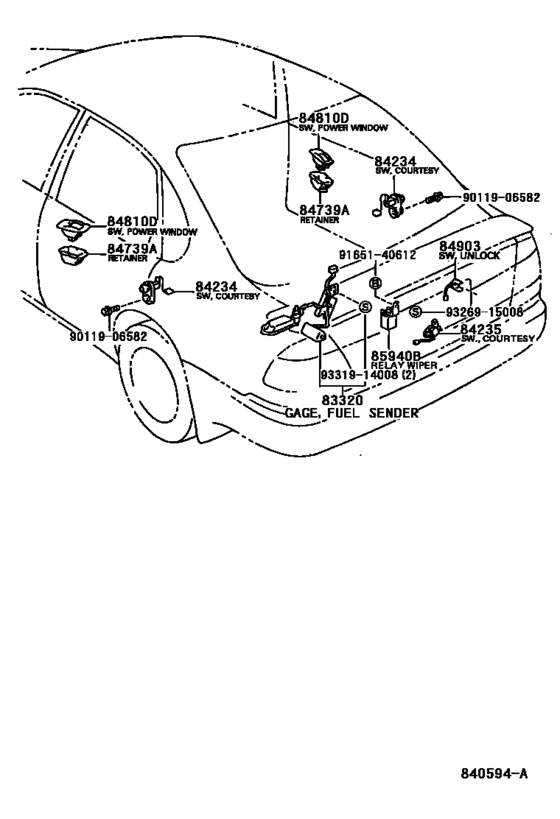

Switch & Relay & Computer ([02.1994 - ] FLOOR,REAR DOOR & LUGGAGE (9402- )) Diagram Toyota COROLLA
- Year
- 1994 - 1996
- Sales region
- General
- Frame
- AE102
- grade
- GLI
- body
- LB
- ENGINE
- 7AFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 02.1994
- To
- 05.1996
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-80271
Gage Assy, Fuel Sender
[02.1994 - 05.1996] AE102 |
83320-80271 |
— | ||
| replacement | |||||
|
83320
|
83320
83320-12512 Gage Assy, Fuel Sender[02.1994 - 05.1996] AE102 |
83320-12512 |
from US $101.34 |
||
|
84234
|
84234
84231-12080 Switch Assy, Courtesy Lamp (For Front Door)[02.1994 - 05.1996] AE102 |
84231-12080 |
US $17.26 |
||
| replacement | |||||
|
84234
|
84234
84231-32040 Switch Assy, Courtesy Lamp (For Front Door)[02.1994 - 05.1996] AE102 |
84231-32040 |
from US $14.24 |
||
|
84235
|
84235
84231-12100 Switch Assy, Courtesy Lamp(For Back Door)COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM) [02.1994 - 05.1996] AE102 |
84231-12100 |
US $14.41 |
||
| replacement | |||||
|
84235
|
84235
84231-12110 Switch Assy, Courtesy Lamp(For Back Door)[02.1994 - 05.1996] AE102 |
84231-12110 |
US $14.12 |
||
|
84739A
|
84739A
84739-12010 Retainer, Switch[02.1994 - 05.1996] AE102 |
84739-12010 |
US $6.84 |
||
|
84810D
|
84810D
84810-20220-B0 Switch Assy, Power Window Regulator[02.1994 - 05.1996] AE102 SHADOW GRAY,TRIM1# |
84810-20220-B0 |
US $47.90 |
||
| replacement | |||||
|
84810D
|
84810D
84810-20220-C0
Switch Assy, Power Window Regulator
[02.1994 - 05.1996] AE102 SHADOW GRAY,TRIM1# |
84810-20220-C0 |
— | ||
|
84903
|
84903
84903-12090 Switch Sub-Assy, Door Un-LockDOOR UN-LOCK [02.1994 - 05.1996] AE102 |
84903-12090 |
US $33.20 |
||
|
84903
|
84903
84903-12100 Switch Sub-Assy, Door Un-LockDOOR UN-LOCK [02.1994 - 05.1996] AE102 LH |
84903-12100 |
US $49.94 |
||
|
84903
|
84903
84903-12110 Switch Sub-Assy, Door Un-LockDOOR UN-LOCK [02.1994 - 05.1996] AE102 RH |
84903-12110 |
US $49.94 |
||
|
85940B
|
85940B
85940-12101 Relay Assy, Rear WiperREAR WIPER [02.1994 - 05.1996] AE102 |
85940-12101 |
US $170.35 |
||
| replacement | |||||
|
85940B
|
85940B
85940-12100 Relay Assy, Rear WiperREAR WIPER [02.1994 - 05.1996] AE102 |
85940-12100 |
US $171.81 |
||
|
9011906582
|
9011906582
90119-06582 New Genuine Part |
90119-06582 |
US $1.60 |
||
| replacement | |||||
|
9011906582
|
9011906582
90119-06601
New Genuine Part
|
90119-06601 |
— | ||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9326915008
|
9326915008
93269-15008 New Genuine Part |
93269-15008 |
US $0.96 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $1.28 |
||
