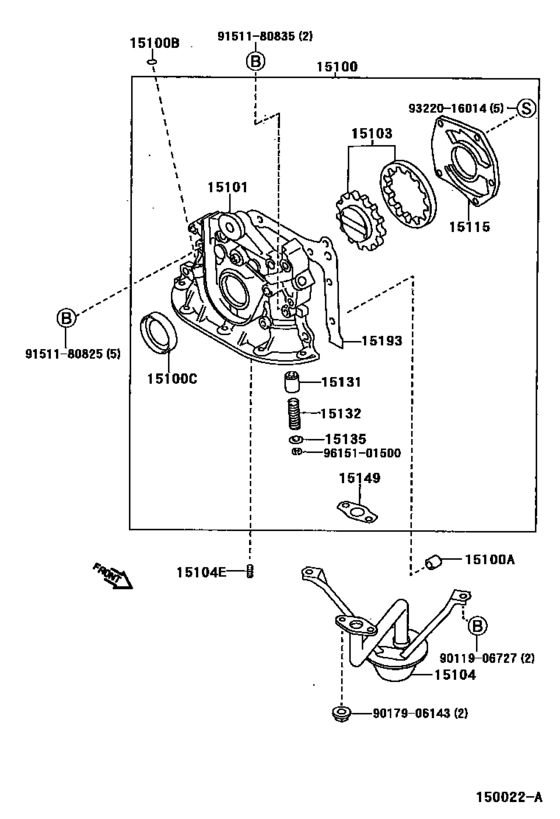

Engine Oil Pump ([04.1997 - ] (9704- )4AGE) Diagram Toyota COROLLA
- Year
- 1997 - 2000
- Sales region
- Japan
- Frame
- AE111
- grade
- GT
- body
- SED
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 04.1997
- To
- 08.2000
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15100
|
15100
15100-19045 Pump Assy, Oil[04.1997 - 08.2000] 4AGE..AE111 |
15100-19045 |
US $273.60 |
||
|
15100A
|
15100A
90253-11021 Pin, Ring[04.1997 - 08.2000] 2C,3CE..CE11#; 4A#,5AFE..AE11# |
90253-11021 |
from US $1.46 |
||
|
15100B
|
15100B
96721-19010 Ring, O(For Oil Level Gage Guide)[04.1997 - 08.2000] 4A#,5AFE..AE11# |
96721-19010 |
from US $1.64 |
||
|
15100C
|
15100C
90311-32002
Seal(For Oil Pump)
[12.1999 - 03.2000] 4A#,5AFE..AE11# |
90311-32002 |
— | ||
| replacement | |||||
|
15100C
|
15100C
90311-32020 Oil Seal[12.1999 - 03.2000] 4A#,5AFE..AE11# |
90311-32020 |
from US $5.60 |
||
|
15100C
|
15100C
90311-32020 Oil Seal[04.1997 - 12.1999] 4A#,5AFE..AE11# |
90311-32020 |
from US $5.60 |
||
|
15101
|
15101
15011-16080
Body Sub-Assy, Oil Pump
[04.1997 - 08.2000] 4AGE..AE111 |
15011-16080 |
— | ||
|
15103
|
15103
15103-16030
Gear Set, Oil Pump
[04.1997 - 08.2000] 4AGE..AE111 |
15103-16030 |
— | ||
|
15104
|
15104
15104-15090 Strainer Sub-Assy, Oil[04.1997 - 08.2000] 4A#,5AFE..AE11# |
15104-15090 |
from US $33.25 |
||
|
15104E
|
15104E
90116-06022 Bolt, Stud(For Valve Push Rod Cover)[04.1997 - 08.2000] 4AGE..AE111 |
90116-06022 |
from US $1.95 |
||
|
15115
|
15115
15115-16080 Cover, Oil Pump[04.1997 - 08.2000] 4AGE..AE111 |
15115-16080 |
US $21.69 |
||
|
15131
|
15131
15131-24010 Valve, Oil Pump Relief[04.1997 - 08.2000] 4AGE..AE111; 4AFE,5AFE..AE110,114 ＡＩＳＩＮ ＳＥＩＫＩ |
15131-24010 |
from US $4.06 |
||
|
15132
|
15132
15132-40010 Spring, Oil Pump Relief Valve[04.1997 - 08.2000] 4AGE..AE111; 4AFE,5AFE..AE110,114 ＡＩＳＩＮ ＳＥＩＫＩ |
15132-40010 |
from US $2.65 |
||
|
15135
|
15135
15135-15010 Retainer, Oil Pump Relief Valve[04.1997 - 08.2000] 4AGE..AE111; 4AFE,5AFE..AE110,114 ＡＩＳＩＮ ＳＥＩＫＩ |
15135-15010 |
US $4.80 |
||
|
15149
|
15149
15149-16010 Gasket, Oil Strainer Flange[04.1997 - 08.2000] 4A#,5AFE..AE11# |
15149-16010 |
US $3.84 |
||
|
15193
|
15193
15197-15030 Gasket, Oil Pump[04.1997 - 08.1999] 4A#,5AFE..AE11# |
15197-15030 |
US $11.94 |
||
| replacement | |||||
|
15193
|
15193
15197-16030 Gasket, Oil Pump[04.1997 - 08.1999] 4A#,5AFE..AE11# |
15197-16030 |
from US $7.39 |
||
|
15193
|
15193
15197-16030 Gasket, Oil Pump[08.1999 - 08.2000] 4A#,5AFE..AE11# |
15197-16030 |
from US $7.39 |
||
|
9011906727
|
9011906727
90119-06727 BOLT W-WASHER |
90119-06727 |
US $1.92 |
||
| replacement | |||||
|
9011906727
|
9011906727
90080-11177 New Genuine Part |
90080-11177 |
US $2.13 |
||
|
9017906143
|
9017906143
90179-06143 NUT |
90179-06143 |
from US $0.82 |
||
|
9151180825
|
9151180825
91511-80825 BOLTFLANGE |
91511-80825 |
US $1.60 |
||
|
9151180835
|
9151180835
91511-80835 Bolt(For Transaxle Case & Engine Setting) |
91511-80835 |
US $1.75 |
||
| replacement | |||||
|
9151180835
|
9151180835
91511-C0835 Bolt(For Transaxle Case & Engine Setting) |
91511-C0835 |
from US $0.99 |
||
|
9322016014
|
9322016014
93220-16014 SCREW |
93220-16014 |
US $1.60 |
||
|
9615101500
|
9615101500
96151-01500 Ring, Hole Snap (For Pressure Regulator Valve Set) |
96151-01500 |
US $2.72 |
||
