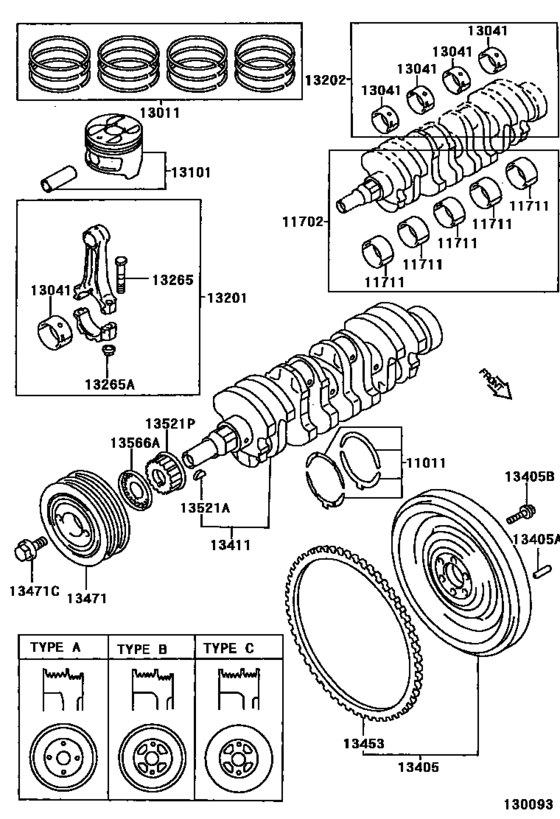

Crankshaft & Piston ([05.1995 - ] (9505- )4AF#,5AFE,7AFE) Diagram Toyota COROLLA
- Year
- 1997 - 2001
- Sales region
- General
- Frame
- AE111
- grade
- GLI
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 04.1997
- To
- 09.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-15010
Washer Set, Crankshaft Thrust
[05.1995 - 12.1997] 4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE..AE11#..GCC,GEN;4AFE..AE111..LHD..SED..(GCC,GE N) STD |
11011-15010 |
— | ||
| replacement | |||||
|
11011
|
11011
11011-15021 Washer Set, Crankshaft Thrust[05.1995 - 12.1997] 4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE..AE11#..GCC,GEN;4AFE..AE111..LHD..SED..(GCC,GE N) STD |
11011-15021 |
from US $31.46 |
||
|
11011
|
11011
11011-15020
Washer Set, Crankshaft Thrust
[12.1997 - 07.2002] 4AFE..AE111..WG..5F;7AFE..AE112..GLI,SEG;4AFE..AE111..LHD..WG..4FC;7AFE..AE112..XL I..(BZ,GCC,GEN,IDN);4AF#,5AFE..AE110,111..SED..(ARL,GCC,GEN,GENKD,MA,NZ,PHL,TH,VEN ) STD |
11011-15020 |
— | ||
| replacement | |||||
|
11011
|
11011
11011-15021 Washer Set, Crankshaft Thrust[12.1997 - 07.2002] 4AFE..AE111..WG..5F;7AFE..AE112..GLI,SEG;4AFE..AE111..LHD..WG..4FC;7AFE..AE112..XL I..(BZ,GCC,GEN,IDN);4AF#,5AFE..AE110,111..SED..(ARL,GCC,GEN,GENKD,MA,NZ,PHL,TH,VEN ) STD |
11011-15021 |
from US $31.46 |
||
|
11702
|
11702
11704-16010 Bearing Set, Crankshaft[05.1995 -] 4AFE..AE111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN);4AF,5AFE,7AFE..AE11#..A RL,GCC,GEN,VEN U/S 0.25 |
11704-16010 |
from US $117.18 |
||
|
11711
|
11711
11701-16010-01 Bearing, Crankshaft[05.1995 -] 4AFE..AE111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN);4AF,5AFE,7AFE..AE11#..A RL,GCC,GEN,VEN MARK 1 |
11701-16010-01 |
from US $20.20 |
||
|
11711
|
11711
11701-16010-02 Bearing, Crankshaft[05.1995 -] 4AFE..AE111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN);4AF,5AFE,7AFE..AE11#..A RL,GCC,GEN,VEN MARK 2 |
11701-16010-02 |
from US $18.29 |
||
|
11711
|
11711
11701-16010-03 Bearing, Crankshaft[05.1995 -] 4AFE..AE111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN);4AF,5AFE,7AFE..AE11#..A RL,GCC,GEN,VEN MARK 3 |
11701-16010-03 |
from US $20.73 |
||
|
11711
|
11711
11701-16010-04 Bearing, Crankshaft[05.1995 -] 4AFE..AE111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN);4AF,5AFE,7AFE..AE11#..A RL,GCC,GEN,VEN MARK 4 |
11701-16010-04 |
from US $20.20 |
||
|
11711
|
11711
11701-16010-05 Bearing, Crankshaft[05.1995 -] 4AFE..AE111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN);4AF,5AFE,7AFE..AE11#..A RL,GCC,GEN,VEN MARK 5 |
11701-16010-05 |
US $49.62 |
||
|
13011
|
13011
13011-16280 Ring Set, PistonPISTON [05.1995 - 09.1999] 4AFE..AE111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN) STD |
13011-16280 |
from US $122.36 |
||
|
13011
|
13011
13011-16300 Ring Set, Piston[05.1996 - 08.2000] 7AFE..AE112..ARL,GEN;4AFE..AE111..RHD..GEN;4AFE..AE111..LHD..SED..(GEN,VEN) STD,EXHAUST PIPE=W(CONVERTER) |
13011-16300 |
from US $123.57 |
||
|
13011
|
13011
13013-16280 Ring Set, PistonPISTON [05.1995 - 09.1999] 4AFE..AE111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN) O/S 0.50 |
13013-16280 |
from US $140.32 |
||
|
13011
|
13011
13013-16300 Ring Set, Piston[05.1996 - 08.2000] 7AFE..AE112..ARL,GEN;4AFE..AE111..RHD..GEN;4AFE..AE111..LHD..SED..(GEN,VEN) O/S 0.50,EXHAUST PIPE=W(CONVERTER) |
13013-16300 |
US $223.64 |
||
|
13041
|
13041
13041-15030-01 Bearing, Connecting Rod[05.1995 -] 4AFE..AE111..RHD..GEN;4AF,5AFE..AE110,111..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN ) MARK 1 |
13041-15030-01 |
US $33.63 |
||
| replacement | |||||
|
13041
|
13041
13041-15031-01 Bearing, Connecting Rod[05.1995 -] 4AFE..AE111..RHD..GEN;4AF,5AFE..AE110,111..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN ) MARK 1 |
13041-15031-01 |
from US $17.49 |
||
|
13041
|
13041
13041-15030-02 Bearing, Connecting Rod[05.1995 -] 4AFE..AE111..RHD..GEN;4AF,5AFE..AE110,111..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN ) MARK 2 |
13041-15030-02 |
US $33.63 |
||
| replacement | |||||
|
13041
|
13041
13041-15031-02 Bearing, Connecting Rod[05.1995 -] 4AFE..AE111..RHD..GEN;4AF,5AFE..AE110,111..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN ) MARK 2 |
13041-15031-02 |
from US $16.01 |
||
|
13041
|
13041
13041-15030-03 Bearing, Connecting Rod[05.1995 -] 4AFE..AE111..RHD..GEN;4AF,5AFE..AE110,111..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN ) MARK 3 |
13041-15030-03 |
US $33.63 |
||
| replacement | |||||
|
13041
|
13041
13041-15031-03 Bearing, Connecting Rod[05.1995 -] 4AFE..AE111..RHD..GEN;4AF,5AFE..AE110,111..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN ) MARK 3 |
13041-15031-03 |
US $38 |
||
|
13101
|
13101
13101-16201-01 Piston Sub-Assy, W/pinW/PIN [04.1997 - 07.2002] 4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;4AFE..AE111..SED..(G LI,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN) STD,MARK 1 |
13101-16201-01 |
US $94.64 |
||
|
13101
|
13101
13101-16201-02 Piston Sub-Assy, W/pinW/PIN [04.1997 - 07.2002] 4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;4AFE..AE111..SED..(G LI,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN) STD,MARK 2 |
13101-16201-02 |
US $94.64 |
||
|
13101
|
13101
13101-16201-03 Piston Sub-Assy, W/pinW/PIN [04.1997 - 07.2002] 4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;4AFE..AE111..SED..(G LI,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN) STD,MARK 3 |
13101-16201-03 |
US $94.64 |
||
|
13101
|
13101
13103-16201 Piston Sub-Assy, W/pinW/PIN [04.1997 - 07.2002] 4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;4AFE..AE111..SED..(G LI,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN) O/S 0.50 |
13103-16201 |
US $74.84 |
||
|
13201
|
13201
13201-19135 Rod Sub-Assy, Connecting[05.1995 -] 4AFE,5AFE..AE110,111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN) |
13201-19135 |
US $123.76 |
||
| replacement | |||||
|
13201
|
13201
13201-19176 Rod Sub-Assy, Connecting[05.1995 -] 4AFE,5AFE..AE110,111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN) |
13201-19176 |
US $101.92 |
||
|
13202
|
13202
13204-15030
Bearing Set, Connecting Rod (0.25)
[05.1995 -] 4AFE..AE111..RHD..GEN;4AF,5AFE..AE110,111..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR ,VEN) U/S 0.25 |
13204-15030 |
— | ||
| replacement | |||||
|
13202
|
13202
13204-15031 Bearing Set, Connecting Rod (0.25)[05.1995 -] 4AFE..AE111..RHD..GEN;4AF,5AFE..AE110,111..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR ,VEN) U/S 0.25 |
13204-15031 |
US $145.60 |
||
|
13265
|
13265
13265-15030 Bolt, Connecting Rod[05.1995 - 08.1998] 4AFE..AE111..RHD..GEN;4AF,5AFE..AE110,111..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR ,VEN) |
13265-15030 |
from US $2.91 |
||
|
13265A
|
13265A
90179-09008 Nut, Hexagon(For Connecting Rod Bolt)[05.1995 -] 4AFE..AE111..RHD..GEN;4AF,5AFE..AE110,111..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR ,VEN) |
90179-09008 |
US $2.56 |
||
|
13405
|
13405
13405-15090 Flywheel Sub-Assy[05.1995 - 08.2002] 4AFE..AE111..RHD..5F..GEN;4AFE..AE111..LHD..SED..5F..(GCC,GEN,VEN);4AF,5AFE,7AFE.. AE11#..5F..(ARL,GCC,GEN,VEN) |
13405-15090 |
US $321.78 |
||
|
13405A
|
13405A
90250-08120 Pin, Straight, No.1[05.1995 - 08.2002] 4AFE..AE111..RHD..5F..GEN;4AF,5AFE,7AFE..AE11#..5F..(ARL,GCC,GEN,VEN);4AFE..AE111. .LHD..SED..5F..(GCC,GEN,TUR,VEN) L=18,OD=8 |
90250-08120 |
from US $1.03 |
||
|
13405B
|
13405B
90105-10042 Bolt, Flywheel Setting[05.1995 - 08.2002] 4AFE..AE111..RHD..5F..GEN;4AF,5AFE,7AFE..AE11#..5F..(ARL,GCC,GEN,VEN);4AFE..AE111. .LHD..SED..5F..(GCC,GEN,TUR,VEN) |
90105-10042 |
from US $1.31 |
||
|
13411
|
13411
13411-02901 Crankshaft[10.1996 - 09.1997] 4AFE..AE111..RHD;4AFE..AE111..LHD..SED..(GCC,GEN) (L) |
13411-02901 |
US $732.37 |
||
|
13411
|
13411
13411-16900 Crankshaft[05.1995 - 09.1997] 4AFE..AE111..RHD;4AFE..AE111..LHD..SED..(GCC,GEN) (J) |
13411-16900 |
US $1,158.98 |
||
|
13453
|
13453
13453-10010 Gear, Flywheel Ring[05.1995 - 08.2002] 4AFE..AE111..RHD..5F..GEN;4AFE..AE111..LHD..SED..5F..(GCC,GEN,VEN);4AF,5AFE,7AFE.. AE11#..5F..(ARL,GCC,GEN,VEN) |
13453-10010 |
US $57.26 |
||
|
13471
|
13471
13470-15110 Pulley, Crankshaft[05.1995 - 08.2000] 5AFE..AE110..GLI;4AFE..AE111..LHD..SED..GEN TYPE A:REFER TO ILLUSTRATION |
13470-15110 |
US $331.97 |
||
| replacement | |||||
|
13471
|
13471
13470-15120 Pulley, Crankshaft[05.1995 - 08.2000] 5AFE..AE110..GLI;4AFE..AE111..LHD..SED..GEN TYPE A:REFER TO ILLUSTRATION |
13470-15120 |
US $294 |
||
|
13471
|
13471
13470-16080 Pulley, Crankshaft[04.1997 - 10.1997] 7AFE..AE112;4AFE..AE111..RHD;4AFE..AE111..LHD..SED..(GCC,GEN) TYPE C:REFER TO ILLUSTRATION; 4AFE,7AFE..AE111,112..(GLI,XLI)..(GCC,GEN) TYPE C:REFER TO ILLUSTRATION |
13470-16080 |
US $266.45 |
||
| replacement | |||||
|
13471
|
13471
13470-16090 Pulley, Crankshaft[04.1997 - 10.1997] 7AFE..AE112;4AFE..AE111..RHD;4AFE..AE111..LHD..SED..(GCC,GEN) TYPE C:REFER TO ILLUSTRATION; 4AFE,7AFE..AE111,112..(GLI,XLI)..(GCC,GEN) TYPE C:REFER TO ILLUSTRATION |
13470-16090 |
US $288.29 |
||
|
13471
|
13471
13470-16100 Pulley, Crankshaft[10.1997 - 10.1999] 4AFE..AE111..(GLI,XLI)..GEN TYPE B:REFER TO ILLUSTRATION |
13470-16100 |
US $345.80 |
||
|
13471C
|
13471C
90119-12314 Bolt(For Crankshaft Pulley Set)[01.1997 -] 4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE..AE11#..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED. .(GCC,GEN,TUR,VEN) |
90119-12314 |
from US $3.35 |
||
|
13521A
|
13521A
90280-05005 Key(For Oil Pump Drive Spline)[05.1995 -] 4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE..AE11#..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED. .(GCC,GEN,TUR,VEN) |
90280-05005 |
from US $0.98 |
||
|
13521P
|
13521P
13521-15020 Pulley, Crankshaft Timing[05.1995 - 08.1998] 4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GC C,GEN,VEN) |
13521-15020 |
US $42.26 |
||
|
13566A
|
13566A
13566-15020 Guide, Timing Belt[05.1995 - 10.2000] 4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED. .(GCC,GEN,TUR,VEN) |
13566-15020 |
from US $4.43 |
||
