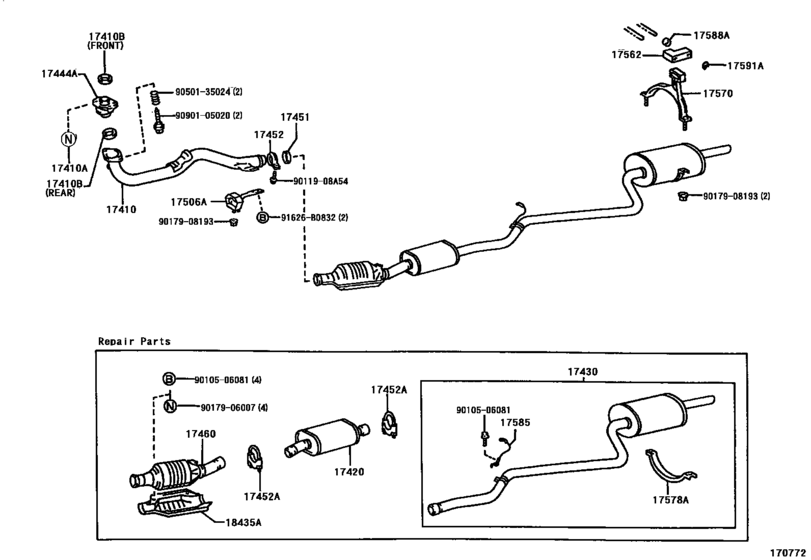

Exhaust Pipe ([04.1997 - 10.1999] (9704-9910)4AFE..4FC) Diagram Toyota COROLLA
- Year
- 1997 - 1999
- Sales region
- Europe
- Frame
- AE111
- grade
- TERRA
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 04.1997
- To
- 10.1999
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-1A490 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [04.1997 - 10.1999] 4AFE..AE111..4FC |
17410-1A490 |
US $199.47 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[04.1997 - 10.1999] 4AFE..AE111..4FC;7AFE,2CE..AE115,CE110 |
90179-10070 |
from US $1.46 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[04.1997 - 10.1999] 4AFE..AE111..4FC;7AFE,2CE..AE115,CE110 |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
17451-16040 Gasket, Exhaust PipeEXHAUST PIPE [04.1997 - 10.1999] 4AFE..AE111..4FC REAR |
17451-16040 |
US $19.51 |
||
|
17410B
|
17410B
90917-06065 Gasket, Exhaust Pipe[04.1997 - 10.1999] 4AFE..AE111..4FC FRONT; 7AFE..AE115 |
90917-06065 |
from US $4.76 |
||
|
17420
|
17420
17420-16720
Pipe Assy, Exhaust, Center
[04.1997 - 10.1999] 4AFE..AE111 |
17420-16720 |
— | ||
|
17430
|
17430
17430-1D010
Pipe Assy, Exhaust, Tail
[04.1997 - 10.1999] 4AFE..AE111 |
17430-1D010 |
— | ||
| replacement | |||||
|
17430
|
17430
17430-1D011
Pipe Assy, Exhaust, Tail
[04.1997 - 10.1999] 4AFE..AE111 |
17430-1D011 |
— | ||
|
17444A
|
17444A
17444-16050 Spacer, Exhaust Front PipeEXHAUST FRONT PIPE [04.1997 - 10.1999] 4AFE..AE111..4FC |
17444-16050 |
US $99.01 |
||
|
17451
|
17451
90917-06084 Gasket, Exhaust PipeEXHAUST PIPE [04.1997 - 10.1999] 4AFE..AE111 |
90917-06084 |
US $5.10 |
||
|
17452
|
17452
90461-15016
Clamp, Exhaust Pipe
[04.1997 - 10.1999] 4AFE..AE111 |
90461-15016 |
— | ||
|
17452A
|
17452A
17452-16120 Clamp, Exhaust Pipe[04.1997 - 10.1999] 4AFE..AE111 REAR; 4EFE..EE111 FRONT; 2CE,2E..CE110,EE110 |
17452-16120 |
from US $19.09 |
||
|
17452A
|
17452A
17452-16160 Clamp, Exhaust PipeEXHAUST PIPE [04.1997 - 10.1999] 4AFE..AE111 FRONT |
17452-16160 |
from US $9.85 |
||
|
17460
|
17460
17460-16170 Converter Assy, Catalytic W/pipeCATALYTIC W/PIPE [04.1997 - 10.1999] 4AFE..AE111 |
17460-16170 |
US $1,419.60 |
||
|
17506A
|
17506A
17506-11100 Bracket Sub-Assy, Exhaust Pipe No.1 Support[04.1997 - 10.1999] 4AFE,2E,4EFE..AE111,EE11# |
17506-11100 |
US $45.78 |
||
|
17562
|
17562
17562-16240 Support, Exhaust Pipe, No.2[04.1997 - 10.1999] 4AFE,7AFE,2CE,2E,4EFE..AE11#,CE110,EE11# |
17562-16240 |
from US $17.92 |
||
|
17570
|
17570
17570-16040 Bracket Assy, Exhaust Pipe Support[04.1997 - 10.1999] 4AFE,7AFE..AE11# |
17570-16040 |
US $48.57 |
||
|
17578A
|
17578A
17578-11030 Clamp, Muffler[04.1997 - 11.1998] 4AFE..AE111 |
17578-11030 |
US $43.68 |
||
|
17585
|
17585
17585-16060 Hanger, Exhaust Pipe[04.1997 - 10.1999] 4AFE,2E,4EFE..AE111,EE11# |
17585-16060 |
US $9.03 |
||
|
17588A
|
17588A
17588-16020 Spacer, Exhaust Pipe Hanger[04.1997 - 10.1999] 4AFE,7AFE,2CE,2E,4EFE..AE11#,CE110,EE11# |
17588-16020 |
US $6.88 |
||
|
17591A
|
17591A
17591-16020 Stopper, Exhaust Pipe Support[04.1997 - 10.1999] 4AFE,7AFE,2CE,2E,4EFE..AE11#,CE110,EE11# |
17591-16020 |
from US $0.78 |
||
|
18435A
|
18435A
18435-16170 Protector, Monolithic Converter[04.1997 - 01.1999] 4AFE..AE111 |
18435-16170 |
US $43.53 |
||
| replacement | |||||
|
18435A
|
18435A
18435-20020 Protector, Catalytic Converter[04.1997 - 01.1999] 4AFE..AE111 |
18435-20020 |
US $67.44 |
||
|
18435A
|
18435A
18435-20020 Protector, Catalytic Converter[01.1999 - 10.1999] 4AFE..AE111..4FC;4AFE..AE111..RHD;4AFE..AE111..LHD..SED..5F |
18435-20020 |
US $67.44 |
||
|
91626B0832
|
91626B0832
91626-B0832
New Genuine Part
|
91626-B0832 |
— | ||
| replacement | |||||
|
91626B0832
|
91626B0832
91651-B0830 New Genuine Part |
91651-B0830 |
US $1.44 |
||
|
9011908A54
|
9011908A54
90119-08A54 BOLT WWASHER |
90119-08A54 |
US $2.08 |
||
|
9010506081
|
9010506081
90105-06081
BOLT FLANGE
|
90105-06081 |
— | ||
| replacement | |||||
|
9010506081
|
9010506081
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.74 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9017908193
|
9017908193
90179-08193 NUT |
90179-08193 |
US $2.72 |
||
|
9050135024
|
9050135024
90501-35024 SPRING COMPRESSION |
90501-35024 |
US $14.24 |
||
|
9090105020
|
9090105020
90901-05020 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90901-05020 |
from US $3.68 |
||
