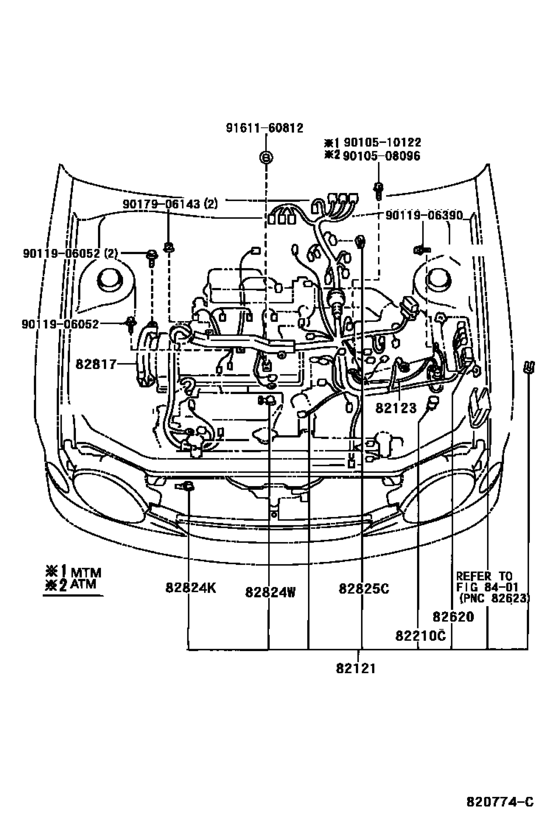

Wiring & Clamp ([04.1997 - ] ENGINE (9704- )AE11#) Diagram Toyota COROLLA
- Year
- 1997 - 1999
- Sales region
- Europe
- Frame
- AE111
- grade
- TERRA
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 04.1997
- To
- 10.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82121
|
82121
82121-1N590 Wire, EngineENGINE [04.1997 - 10.1999] AE111..RHD |
82121-1N590 |
US $620.26 |
||
|
82123
|
82123
82123-12310
Wire, Engine, No.3
[04.1997 - 10.1999] AE11#,EE11#..4FC,5F |
82123-12310 |
— | ||
|
82210C
|
82210C
90982-08228 Fusible Link[04.1997 - 10.1999] AE11#,CE110,EE111 50A,TERMINAL:MALE |
90982-08228 |
from US $9.28 |
||
|
82210C
|
82210C
90982-08246 Fusible Link[04.1997 - 10.1999] AE11#,CE110,EE11# 100A,TERMINAL:MALE |
90982-08246 |
from US $7.04 |
||
|
82210C
|
82210C
90982-08280 Fusible Link[04.1997 - 10.1999] EE110;AE111,CE110,EE111..RHD 30A,TERMINAL:FEMALE |
90982-08280 |
from US $6.40 |
||
|
82210C
|
82210C
90982-08281 Fusible Link[04.1997 - 10.1999] AE111..LHD;AE115,CE110,EE11#;AE111..RHD..TERRA 40A,TERMINAL:FEMALE |
90982-08281 |
from US $9.44 |
||
|
82210C
|
82210C
90982-08282 Fusible Link[04.1997 - 10.1999] AE11#,CE110,EE11# 50A,TERMINAL:FEMALE |
90982-08282 |
from US $7.04 |
||
|
82620
|
82620
82620-13020 Block Assy, Fusible Link[04.1997 - 10.1999] AE11#,CE110,EE11# |
82620-13020 |
US $36.40 |
||
|
82817
|
82817
82817-1A070 Protector, Wiring Harness, No.1[04.1997 - 10.1999] AE11# |
82817-1A070 |
from US $12.40 |
||
|
82824K
|
82824K
82824-12210 Block, Junction[04.1997 - 10.1999] AE111,CE110,EE111..RHD BLACK; AE11#,CE110,EE11#..LHD |
82824-12210 |
US $35.64 |
||
|
82824K
|
82824K
82824-30130 Connector, Wiring Harness[04.1997 - 10.1999] AE111,CE110,EE111..RHD |
82824-30130 |
US $3.52 |
||
|
82824W
|
82824W
82824-30130 Connector, Wiring Harness[04.1997 - 10.1999] AE111,CE110,EE111..RHD NO.1 |
82824-30130 |
US $3.52 |
||
|
9010508096
|
9010508096
90105-08096
New Genuine Part
|
90105-08096 |
— | ||
|
9010510122
|
9010510122
90105-10122 New Genuine Part |
90105-10122 |
US $1.22 |
||
|
9011906052
|
9011906052
90119-06052 New Genuine Part |
90119-06052 |
US $1.92 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.12 |
||
|
9017906143
|
9017906143
90179-06143 NUT |
90179-06143 |
from US $0.86 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
