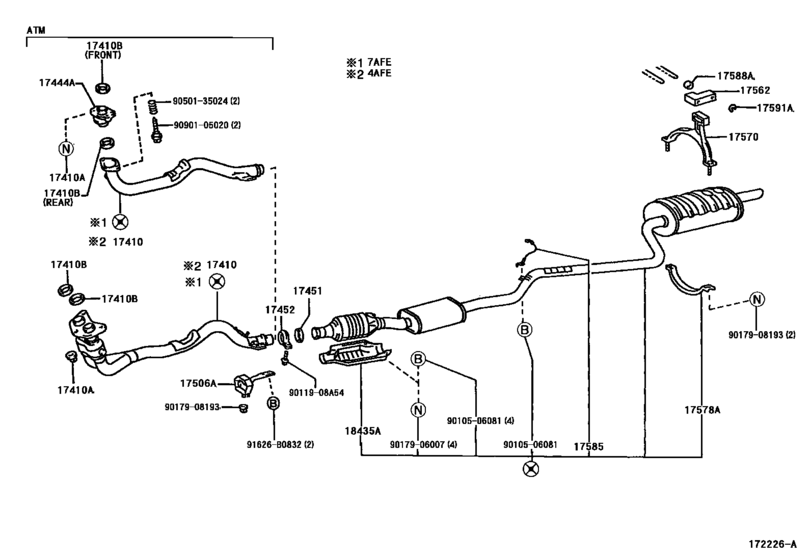

Exhaust Pipe ([10.1999 - ] (9910- )4AFE,7AFE..PHL) Diagram Toyota COROLLA
- Year
- 1999 - 2002
- Sales region
- General
- Frame
- AE112
- grade
- SEG
- body
- SED
- ENGINE
- 7AFE
- TRANSMISSION
- MTM
- DESTINATION
- PHL
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 10.1999
- To
- 07.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[10.1999 - 02.2000] 4AF#..AE111..GCC,GEN,TUR;7AFE,2E..AE112,EE110..ARL,GCC,GEN,VEN; 7AFE..AE112..BZ,IDN,VEN;4AFE..AE111..4FC..(MA,TUR);4AFE,7AFE,2E..AE111,112,EE110.. MTM..(GENKD,MA,PHL,TH,TUR) |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[10.1999 - 02.2000] 4AF#..AE111..GCC,GEN,TUR;7AFE,2E..AE112,EE110..ARL,GCC,GEN,VEN; 7AFE..AE112..BZ,IDN,VEN;4AFE..AE111..4FC..(MA,TUR);4AFE,7AFE,2E..AE111,112,EE110.. MTM..(GENKD,MA,PHL,TH,TUR) |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06061 Gasket, Exhaust Pipe[10.1999 - 08.2000] 7AFE..AE112..ARL,GEN,VEN;4AFE..AE111..5F..(GEN,TUR,VEN);4AFE..AE111..LHD..4FC..(GE N,TUR,VEN) W(CONVERTER); 7AFE..AE112..BZ,VEN;7AFE..AE112..5F..(PHL,TH);4AFE..AE111..4FC..(MA,TUR,VEN);4AFE. .AE111..5F..(MA,PHL,TH,TUR,VEN) W(CONVERTER) |
90917-06061 |
from US $5.17 |
||
|
17451
|
17451
90917-06084 Gasket, Exhaust PipeEXHAUST PIPE [10.1999 - 08.2000] 4AFE,7AFE..AE111,112..ARL,GEN,TUR,VEN W(CONVERTER); 4AFE,7AFE..AE111,112..BZ,PHL,TH,TUR,VEN W(CONVERTER) |
90917-06084 |
US $5.10 |
||
|
17452
|
17452
90461-15016
Clamp, Exhaust Pipe
[10.1999 - 08.2000] 4AFE,7AFE..AE111,112..ARL,GEN,TUR,VEN W(CONVERTER); 4AFE,7AFE..AE111,112..BZ,PHL,TH,TUR,VEN W(CONVERTER) |
90461-15016 |
— | ||
|
17506A
|
17506A
17506-11100 Bracket Sub-Assy, Exhaust Pipe No.1 Support[04.1997 -] 2E..EE110..LHD..3FC;2E..EE110..MTM..(GCC,GEN);4AF,5AFE..AE110,111..GL,GLI,XL;4AFE. .AE111..RHD..(GLI,XLI)..GEN;7AFE,4EFE..AE112,EE111..ARL,GCC,GEN,VEN;4AFE..AE111..L HD..SED..(GCC,GEN,TUR,VEN); 5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..WG.. |
17506-11100 |
US $45.78 |
||
|
17562
|
17562
17562-16240 Support, Exhaust Pipe, No.2[04.1997 -] 5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;7AFE ..AE112..XLI..(BZ,GCC,GEN,IDN);4AFE,4EFE..AE111,EE111..SED..(GLI,STD,XLI);4AF,5AFE ,7AFE,2C#,2E..AE11#,CE110,EE110..GL,GLI,SEG,STD,XL |
17562-16240 |
from US $18.60 |
||
|
17570
|
17570
17570-16020 Bracket Assy, Exhaust Pipe Support[04.1997 - 06.2003] 4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;4AFE..AE111..SED..(G LI,XLI);7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AF,7AFE,2CE,2E..AE111,112,CE110,EE110. .GL,GLI,SEG,STD,XL |
17570-16020 |
from US $18.60 |
||
|
17578A
|
17578A
17578-11030 Clamp, Muffler[11.1998 -] 4AFE..AE111..LHD..GEN;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AFE..AE111..ARL,GCC,GENK D,MA,PHL,VEN;4AF,7AFE,2E..AE111,112,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GE NKD,IDN,PHL,VEN) |
17578-11030 |
US $43.68 |
||
|
17585
|
17585
17585-16060 Hanger, Exhaust Pipe[09.1999 - 02.2000] 2E..EE110..LHD..3FC;4AFE..AE111..4FC..TUR;4AFE,2E..AE111,EE110..(4F,4FC,5F)..(GCC, GEN);4AF,5AFE,7AFE,4EFE..AE11#,EE111..ARL,GCC,GEN,VEN; 4AFE..AE111..WG..5F;7AFE..AE112..GLI,SEG;4AFE..AE111..4FC..TUR;7AFE..AE112..XLI..( BZ,GCC,GEN,IDN |
17585-16060 |
US $9.03 |
||
|
17588A
|
17588A
17588-16020 Spacer, Exhaust Pipe Hanger[04.1997 -] 5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;7AFE ..AE112..XLI..(BZ,GCC,GEN,IDN);4AFE,4EFE..AE111,EE111..SED..(GLI,STD,XLI);4AF,5AFE ,7AFE,2C#,2E..AE11#,CE110,EE110..GL,GLI,SEG,STD,XL |
17588-16020 |
US $6.88 |
||
|
17591A
|
17591A
17591-16020 Stopper, Exhaust Pipe Support[04.1997 -] 5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;7AFE ..AE112..XLI..(BZ,GCC,GEN,IDN);4AFE,4EFE..AE111,EE111..SED..(GLI,STD,XLI);4AF,5AFE ,7AFE,2C#,2E..AE11#,CE110,EE110..GL,GLI,SEG,STD,XL |
17591-16020 |
from US $0.82 |
||
|
18435A
|
18435A
18435-20020 Protector, Catalytic Converter[10.1999 - 08.2000] 4AFE..AE111..RHD..GEN TYPE B:REFER TO ILLUSTRATION; 4AFE,7AFE..AE111,112..PHL TYPE B:REFER TO ILLUSTRATION |
18435-20020 |
US $67.44 |
||
|
91626B0832
|
91626B0832
91626-B0832
New Genuine Part
|
91626-B0832 |
— | ||
| replacement | |||||
|
91626B0832
|
91626B0832
91651-B0830 New Genuine Part |
91651-B0830 |
US $1.44 |
||
|
9011908A54
|
9011908A54
90119-08A54 BOLT WWASHER |
90119-08A54 |
US $2.08 |
||
|
9010506081
|
9010506081
90105-06081
BOLT FLANGE
|
90105-06081 |
— | ||
| replacement | |||||
|
9010506081
|
9010506081
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.74 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9017908193
|
9017908193
90179-08193 NUT |
90179-08193 |
US $2.72 |
||
|
9050135024
|
9050135024
90501-35024 SPRING COMPRESSION |
90501-35024 |
from US $4.52 |
||
|
9090105020
|
9090105020
90901-05020 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90901-05020 |
from US $3.68 |
||
