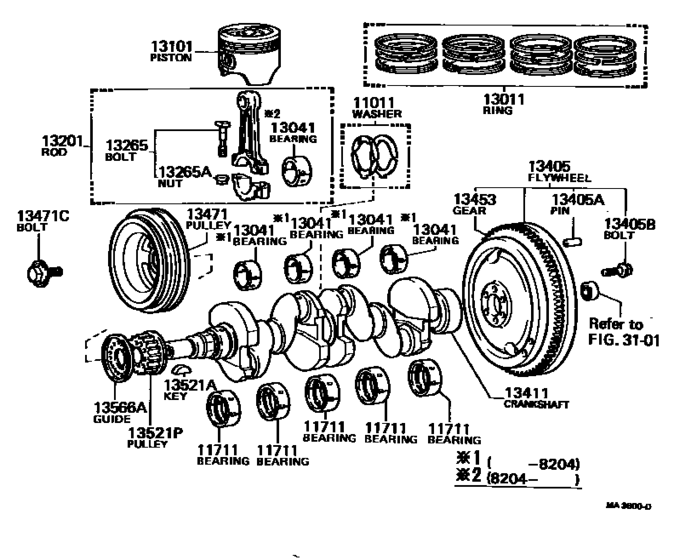

Crankshaft & Piston ([03.1979 - 04.1983] (7903-8304)3AU) Diagram Toyota COROLLA
- Year
- 1981 - 1983
- Sales region
- Japan
- Frame
- AE70
- grade
- DX
- body
- SED
- ENGINE
- 3AU
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.1981
- To
- 04.1983
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-15010
Washer Set, Crankshaft Thrust
[03.1979 - 04.1983] 3AU..AE70 ＳＴＤ |
11011-15010 |
— | ||
| replacement | |||||
|
11011
|
11011
11011-15021 Washer Set, Crankshaft Thrust[03.1979 - 04.1983] 3AU..AE70 ＳＴＤ |
11011-15021 |
from US $31.46 |
||
|
11711
|
11711
11701-15011-01 Bearing, Crankshaft[01.1980 - 01.1983] 3AU..AE70 MARK"1",MARK 1 |
11701-15011-01 |
US $51.25 |
||
|
11711
|
11711
11701-15011-02 Bearing, Crankshaft[01.1980 - 01.1983] 3AU..AE70 MARK"2",MARK 2 |
11701-15011-02 |
US $51.25 |
||
|
11711
|
11711
11701-15011-03 Bearing, Crankshaft[01.1980 - 01.1983] 3AU..AE70 MARK"3",MARK 3 |
11701-15011-03 |
US $51.25 |
||
|
11711
|
11711
11701-15030-01
Bearing, Crankshaft
[01.1983 - 04.1983] 3AU..AE70 MARK"1",MARK 1 |
11701-15030-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-16010-01 Bearing, Crankshaft[01.1983 - 04.1983] 3AU..AE70 MARK"1",MARK 1 |
11701-16010-01 |
from US $20.28 |
||
|
11711
|
11711
11701-15030-02 Bearing, Crankshaft[01.1983 - 04.1983] 3AU..AE70 MARK"2",MARK 2 |
11701-15030-02 |
US $46.30 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-02 Bearing, Crankshaft[01.1983 - 04.1983] 3AU..AE70 MARK"2",MARK 2 |
11701-16010-02 |
from US $18.29 |
||
|
11711
|
11711
11701-15030-03 Bearing, Crankshaft[01.1983 - 04.1983] 3AU..AE70 MARK"3",MARK 3 |
11701-15030-03 |
US $46.30 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-03 Bearing, Crankshaft[01.1983 - 04.1983] 3AU..AE70 MARK"3",MARK 3 |
11701-16010-03 |
from US $20.73 |
||
|
13011
|
13011
13011-15010 Ring Set, Piston[03.1979 - 04.1983] 3AU..AE70 STD |
13011-15010 |
US $183.46 |
||
| replacement | |||||
|
13011
|
13011
13011-15011 Ring Set, Piston[03.1979 - 04.1983] 3AU..AE70 STD |
13011-15011 |
from US $110.31 |
||
|
13011
|
13011
13013-15010 Ring Set, Piston[03.1979 - 04.1983] 3AU..AE70 Ｏ／Ｓ ０．５０,O/S 0.50 |
13013-15010 |
US $198.02 |
||
|
13011
|
13011
13014-15010 Ring Set, Piston[03.1979 - 04.1983] 3AU..AE70 Ｏ／Ｓ ０．７５,O/S 0.75 |
13014-15010 |
US $198.02 |
||
|
13011
|
13011
13015-15010 Ring Set, Piston[03.1979 - 04.1983] 3AU..AE70 Ｏ／Ｓ １．００,O/S 1.00 |
13015-15010 |
US $198.02 |
||
|
13041
|
13041
13041-15011-01 Bearing, Connecting Rod[08.1980 - 04.1983] 3AU..AE70 MARK"1",MARK 1 |
13041-15011-01 |
US $37.56 |
||
|
13041
|
13041
13041-15011-02 Bearing, Connecting Rod[08.1980 - 04.1983] 3AU..AE70 MARK"2",MARK 2 |
13041-15011-02 |
US $37.56 |
||
|
13041
|
13041
13041-15011-03 Bearing, Connecting Rod[08.1980 - 04.1983] 3AU..AE70 MARK"3",MARK 3 |
13041-15011-03 |
US $37.56 |
||
|
13101
|
13101
13101-15020 Piston Sub-Assy, W/pin[03.1979 - 04.1983] 3AU..AE70 ＳＴＤ,STD |
13101-15020 |
US $88.82 |
||
| replacement | |||||
|
13101
|
13101
13101-15020-02 Piston Sub-Assy, W/pin[03.1979 - 04.1983] 3AU..AE70 ＳＴＤ,STD |
13101-15020-02 |
US $54.05 |
||
|
13101
|
13101
13103-15020 Piston Sub-Assy, W/pin[03.1979 - 04.1983] 3AU..AE70 Ｏ／Ｓ ０．５０,O/S 0.50 |
13103-15020 |
US $90.27 |
||
|
13101
|
13101
13104-15020 Piston Sub-Assy, W/pin[03.1979 - 04.1983] 3AU..AE70 Ｏ／Ｓ ０．７５,O/S 0.75 |
13104-15020 |
US $90.27 |
||
|
13101
|
13101
13105-15020 Piston Sub-Assy, W/pin[03.1979 - 04.1983] 3AU..AE70 Ｏ／Ｓ １．００,O/S 1.00 |
13105-15020 |
US $90.27 |
||
|
13201
|
13201
13201-15010 Rod Sub-Assy, Connecting[03.1979 - 04.1982] 3AU..AE70 |
13201-15010 |
US $151.42 |
||
| replacement | |||||
|
13201
|
13201
13201-19056 Rod Sub-Assy, Connecting[03.1979 - 04.1982] 3AU..AE70 |
13201-19056 |
US $147.06 |
||
|
13201
|
13201
13201-19015 Rod Sub-Assy, Connecting[04.1982 - 04.1983] 3AU..AE70 |
13201-19015 |
US $167.44 |
||
| replacement | |||||
|
13201
|
13201
13201-19056 Rod Sub-Assy, Connecting[04.1982 - 04.1983] 3AU..AE70 |
13201-19056 |
US $147.06 |
||
|
13265
|
13265
13265-19015 Bolt, Connecting Rod[03.1979 - 04.1983] 3AU..AE70 |
13265-19015 |
US $6.70 |
||
|
13265A
|
13265A
90179-08014 Nut, Hexagon(For Connecting Rod Bolt)[03.1979 - 04.1983] 3AU..AE70 |
90179-08014 |
from US $1.11 |
||
|
13405
|
13405
13405-19065 Flywheel Sub-Assy[03.1979 - 04.1983] 3AU..AE70..MTM N=106 |
13405-19065 |
US $329.06 |
||
|
13405A
|
13405A
90250-08120 Pin, Straight, No.1[03.1979 - 07.1987] 3AU..AE70..MTM 長さ＝１８，外径＝８,L=18,OD=8; 4K#,5KJ..KE7#..MTM 長さ＝１８，外径＝８,L=18,OD=8 |
90250-08120 |
from US $1.03 |
||
|
13405B
|
13405B
90105-10042 Bolt, Flywheel Setting[03.1979 - 08.1983] 3AU..AE70..MTM; 12TJ,13TU,2TGEU..TE7#..MTM |
90105-10042 |
US $1.76 |
||
|
13411
|
13411
13411-15010
Crankshaft
[03.1979 - 08.1981] 3AU..AE70 |
13411-15010 |
— | ||
| replacement | |||||
|
13411
|
13411
13411-15900 Crankshaft[03.1979 - 08.1981] 3AU..AE70 |
13411-15900 |
from US $788.95 |
||
|
13411
|
13411
13411-15011 Crankshaft[08.1981 - 08.1982] 3AU..AE70 |
13411-15011 |
US $1,017.74 |
||
| replacement | |||||
|
13411
|
13411
13411-15900 Crankshaft[08.1981 - 08.1982] 3AU..AE70 |
13411-15900 |
from US $788.95 |
||
|
13411
|
13411
13411-15021 Crankshaft[08.1982 - 01.1983] 3AU..AE70 |
13411-15021 |
US $1,017.74 |
||
| replacement | |||||
|
13411
|
13411
13411-15900 Crankshaft[08.1982 - 01.1983] 3AU..AE70 |
13411-15900 |
from US $788.95 |
||
|
13411
|
13411
13411-15030 Crankshaft[01.1983 - 04.1983] 3AU..AE70 |
13411-15030 |
US $1,017.74 |
||
| replacement | |||||
|
13411
|
13411
13411-15900 Crankshaft[01.1983 - 04.1983] 3AU..AE70 |
13411-15900 |
from US $788.95 |
||
|
13453
|
13453
13453-10010 Gear, Flywheel Ring[03.1979 - 07.1987] 3AU..AE70..MTM N=106; 4K#,5KJ..KE7#..MTM N=106 |
13453-10010 |
US $57.26 |
||
|
13471
|
13471
13407-15010 Pulley, CrankshaftCRANKSHAFT [08.1979 - 08.1981] 3AU..AE70 |
13407-15010 |
US $148.51 |
||
|
13471
|
13471
13407-15011 Pulley, Crankshaft[08.1981 - 10.1981] 3AU..AE70 |
13407-15011 |
US $147.06 |
||
| replacement | |||||
|
13471
|
13471
13470-15050 Pulley, Crankshaft[08.1981 - 10.1981] 3AU..AE70 |
13470-15050 |
US $149.97 |
||
|
13471
|
13471
13407-15012 Pulley, Crankshaft[10.1981 - 01.1982] 3AU..AE70 |
13407-15012 |
US $147.06 |
||
| replacement | |||||
|
13471
|
13471
13470-15050 Pulley, Crankshaft[10.1981 - 01.1982] 3AU..AE70 |
13470-15050 |
US $149.97 |
||
|
13471
|
13471
13407-15013 Pulley, Crankshaft[01.1982 - 04.1983] 3AU..AE70 |
13407-15013 |
US $147.06 |
||
| replacement | |||||
|
13471
|
13471
13470-15050 Pulley, Crankshaft[01.1982 - 04.1983] 3AU..AE70 |
13470-15050 |
US $149.97 |
||
|
13471C
|
13471C
90105-12012 Bolt(For Crankshaft Pulley Set)[03.1979 - 04.1983] 3AU..AE70 |
90105-12012 |
US $4.89 |
||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[03.1979 - 09.1986] 3AU..AE70; 4K#,5KJ..KE7#; 12TJ,13TU,2TGEU..TE7# |
90280-05010 |
US $4.16 |
||
|
13521P
|
13521P
13521-15010 Pulley, Crankshaft Timing[03.1979 - 04.1983] 3AU..AE70 N=18 |
13521-15010 |
from US $18.02 |
||
|
13566A
|
13566A
13566-15010 Guide, Timing Belt[03.1979 - 04.1983] 3AU..AE70 |
13566-15010 |
from US $5.44 |
||
