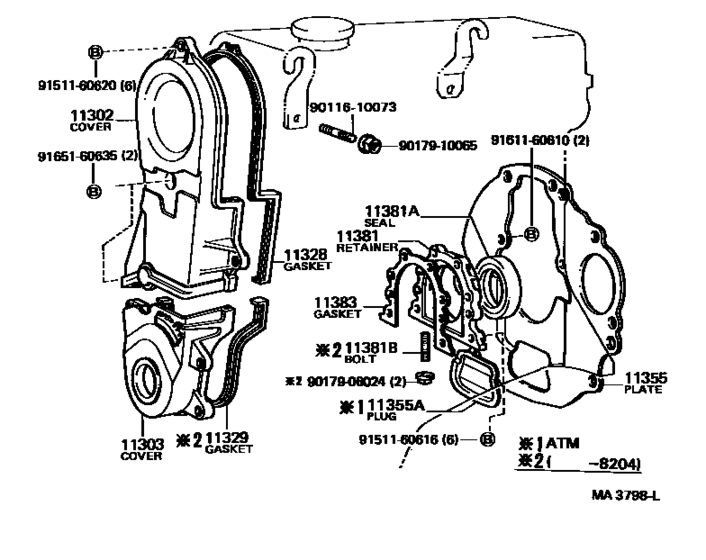

Timing Gear Cover & Rear End Plate ([03.1979 - 04.1983] (7903-8304)3AU) Diagram Toyota COROLLA
- Year
- 1981 - 1983
- Sales region
- Japan
- Frame
- AE70
- grade
- DX
- body
- SED
- ENGINE
- 3AU
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.1981
- To
- 04.1983
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11302
|
11302
11302-15010
Cover Sub-Assy, Timing Chain Or Belt
[03.1979 - 04.1983] 3AU..AE70 |
11302-15010 |
— | ||
|
11303
|
11303
11303-15010
Cover Sub-Assy, Crankshaft Gear Or Pulley
[03.1979 - 04.1982] 3AU..AE70 |
11303-15010 |
— | ||
| replacement | |||||
|
11303
|
11303
11303-15020
Cover Sub-Assy, Crankshaft Gear Or Pulley
[03.1979 - 04.1982] 3AU..AE70 |
11303-15020 |
— | ||
|
11303
|
11303
11303-15020
Cover Sub-Assy, Crankshaft Gear Or Pulley
[04.1982 - 04.1983] 3AU..AE70 |
11303-15020 |
— | ||
|
11328
|
11328
11328-15010 Gasket, Timing Gear Or Chain Cover[03.1979 - 04.1983] 3AU..AE70 |
11328-15010 |
US $17.76 |
||
|
11329
|
11329
11329-15010 Gasket, Timing Gear Rear Cover[03.1979 - 04.1982] 3AU..AE70 |
11329-15010 |
US $12.52 |
||
|
11355
|
11355
11355-15020
Plate, Rear End
[03.1979 - 08.1981] 3AU..AE70..MTM |
11355-15020 |
— | ||
| replacement | |||||
|
11355
|
11355
11355-15021
Plate, Rear End
[03.1979 - 08.1981] 3AU..AE70..MTM |
11355-15021 |
— | ||
|
11355
|
11355
11355-15021
Plate, Rear End
[08.1981 - 04.1983] 3AU..AE70..MTM |
11355-15021 |
— | ||
|
11381
|
11381
11381-15010 Retainer, Engine Rear Oil Seal[03.1979 - 04.1983] 3AU..AE70 |
11381-15010 |
US $55.56 |
||
|
11381A
|
11381A
90311-70001
Seal, Engine Rear Oil
[03.1979 - 01.1982] 3AU..AE70 HTC 70 92 12; 4K#..KE7# HTC 70 92 12 |
90311-70001 |
— | ||
| replacement | |||||
|
11381A
|
11381A
90311-70007 Seal, Engine Rear Oil[03.1979 - 01.1982] 3AU..AE70 HTC 70 92 12; 4K#..KE7# HTC 70 92 12 |
90311-70007 |
from US $16.42 |
||
|
11381A
|
11381A
90311-70004
Seal, Engine Rear Oil
[01.1982 - 04.1983] 3AU..AE70 |
90311-70004 |
— | ||
| replacement | |||||
|
11381A
|
11381A
90311-70007 Seal, Engine Rear Oil[01.1982 - 04.1983] 3AU..AE70 |
90311-70007 |
from US $16.42 |
||
|
11381B
|
11381B
92122-60612 Bolt, Stud(For Engine Rear Oil Seal Retainer)[03.1979 - 05.1982] 3AU..AE70 L=21,S=9&9 |
92122-60612 |
US $1.22 |
||
|
11383
|
11383
11383-15010
Gasket, Engine Rear Oil Seal Retainer
[03.1979 - 04.1983] 3AU..AE70 |
11383-15010 |
— | ||
| replacement | |||||
|
11383
|
11383
11383-16010 Gasket, Engine Rear Oil Seal Retainer[03.1979 - 04.1983] 3AU..AE70 |
11383-16010 |
from US $3.80 |
||
|
9011610073
|
9011610073
90116-10073 New Genuine Part |
90116-10073 |
from US $1.29 |
||
|
9017906024
|
9017906024
90179-06024 New Genuine Part |
90179-06024 |
US $1.89 |
||
|
9017910065
|
9017910065
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock |
90179-10065 |
from US $1.44 |
||
|
9151160616
|
9151160616
91511-60616
BOLTFLANGE
|
91511-60616 |
— | ||
| replacement | |||||
|
9151160616
|
9151160616
91511-B0616 BOLT, FLANGE |
91511-B0616 |
from US $1.76 |
||
|
9151160620
|
9151160620
91511-60620
Bolt(For Clutch Release Bearing Hub Retainer)
|
91511-60620 |
— | ||
| replacement | |||||
|
9151160620
|
9151160620
91511-B0620 Bolt(For Clutch Release Bearing Hub Retainer) |
91511-B0620 |
from US $0.72 |
||
|
9161160610
|
9161160610
91611-60610
Bolt (For Transfer Oil Receiver No.1)
|
91611-60610 |
— | ||
| replacement | |||||
|
9161160610
|
9161160610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
US $1.12 |
||
|
9165160635
|
9165160635
91651-60635 BOLT |
91651-60635 |
US $2.56 |
||
