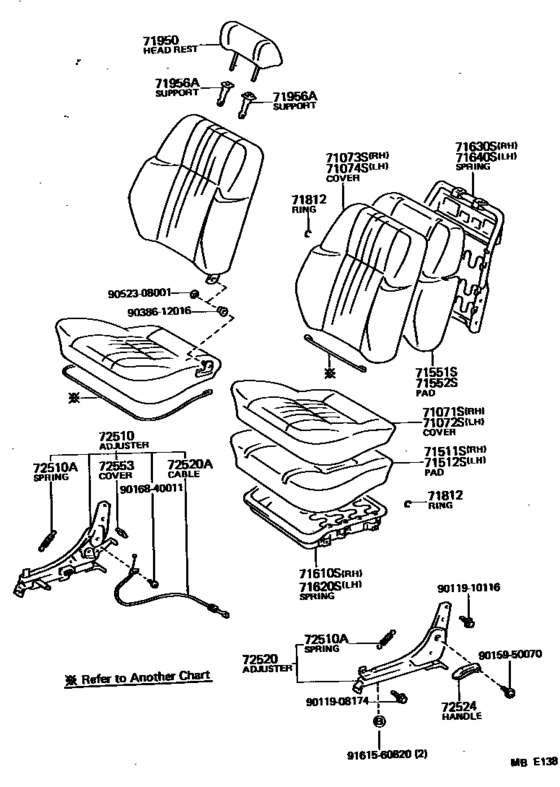

Front Seat & Seat Track ([08.1982 - ] (8208- )CP,HT..USA) Diagram Toyota COROLLA
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- AE71
- grade
- DX
- body
- CP
- ENGINE
- 4AC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71071S
|
71071S
71071-1A451-06
Cover, Front Seat Cushion, Rh(For Separate Type)
[08.1982 - 07.1983] AE71..(CP,HT,LB)..(4FC,5F)..USA SR-5 PACKAGE,K-TY,BROWN,BROWN |
71071-1A451-06 |
— | ||
|
71071S
|
71071S
71071-1A502-04
Cover, Front Seat Cushion, Rh(For Separate Type)
[08.1982 - 07.1983] AE71..CP..USA FB,BLUE,BLUE; AE71..CP..CND SR-5 PACKAGE,FB,BLUE,BLUE |
71071-1A502-04 |
— | ||
|
71071S
|
71071S
71071-1A502-06
Cover, Front Seat Cushion, Rh(For Separate Type)
[08.1982 - 07.1983] AE71..CP..USA FB,BROWN,BROWN; AE71..CP..CND SR-5 PACKAGE,FB,BROWN,BROWN |
71071-1A502-06 |
— | ||
|
71071S
|
71071S
71071-1A502-13
Cover, Front Seat Cushion, Rh(For Separate Type)
[08.1982 - 07.1983] AE71..CP..USA FB,GRAY,GRAY; AE71..CP..CND SR-5 PACKAGE,FB,GRAY,GRAY |
71071-1A502-13 |
— | ||
|
71071S
|
71071S
71071-1A720-01
Cover, Front Seat Cushion, Rh(For Separate Type)
[08.1982 - 10.1982] AE71..(CP,HT)..USA SPORT SEAT,FB,BLACK,BLACK |
71071-1A720-01 |
— | ||
| replacement | |||||
|
71071S
|
71071S
71071-1A721-01
Cover, Front Seat Cushion, Rh(For Separate Type)
[08.1982 - 10.1982] AE71..(CP,HT)..USA SPORT SEAT,FB,BLACK,BLACK |
71071-1A721-01 |
— | ||
|
71071S
|
71071S
71071-1A721-01
Cover, Front Seat Cushion, Rh(For Separate Type)
[10.1982 - 07.1983] AE71..(CP,HT)..USA SPORT SEAT,FB,BLACK,BLACK |
71071-1A721-01 |
— | ||
|
71072S
|
71072S
71072-1A421-06
Cover, Front Seat Cushion, Lh(For Separate Type)
[08.1982 - 07.1983] AE71..(CP,HT,LB)..(4FC,5F)..USA SR-5 PACKAGE,K-TY,BROWN,BROWN |
71072-1A421-06 |
— | ||
|
71072S
|
71072S
71072-1A492-04
Cover, Front Seat Cushion, Lh(For Separate Type)
[08.1982 - 07.1983] AE71..CP..USA FB,BLUE,BLUE; AE71..CP..CND SR-5 PACKAGE,FB,BLUE,BLUE |
71072-1A492-04 |
— | ||
|
71072S
|
71072S
71072-1A492-06
Cover, Front Seat Cushion, Lh(For Separate Type)
[08.1982 - 07.1983] AE71..CP..USA FB,BROWN,BROWN; AE71..CP..CND SR-5 PACKAGE,FB,BROWN,BROWN |
71072-1A492-06 |
— | ||
|
71072S
|
71072S
71072-1A492-13
Cover, Front Seat Cushion, Lh(For Separate Type)
[08.1982 - 07.1983] AE71..CP..USA FB,GRAY,GRAY; AE71..CP..CND SR-5 PACKAGE,FB,GRAY,GRAY |
71072-1A492-13 |
— | ||
|
71072S
|
71072S
71072-1A710-01
Cover, Front Seat Cushion, Lh(For Separate Type)
[08.1982 - 10.1982] AE71..(CP,HT)..USA SPORT SEAT,FB,BLACK,BLACK |
71072-1A710-01 |
— | ||
| replacement | |||||
|
71072S
|
71072S
71072-1A711-01
Cover, Front Seat Cushion, Lh(For Separate Type)
[08.1982 - 10.1982] AE71..(CP,HT)..USA SPORT SEAT,FB,BLACK,BLACK |
71072-1A711-01 |
— | ||
|
71072S
|
71072S
71072-1A711-01
Cover, Front Seat Cushion, Lh(For Separate Type)
[10.1982 - 07.1983] AE71..(CP,HT)..USA SPORT SEAT,FB,BLACK,BLACK |
71072-1A711-01 |
— | ||
|
71073S
|
71073S
71073-1A593-04
Cover, Front Seat Back, Rh(For Separate Type)
[08.1982 - 07.1983] AE71..CP..USA FB,BLUE,BLUE; AE71..CP..CND SR-5 PACKAGE,FB,BLUE,BLUE |
71073-1A593-04 |
— | ||
|
71073S
|
71073S
71073-1A593-06
Cover, Front Seat Back, Rh(For Separate Type)
[08.1982 - 07.1983] AE71..CP..USA FB,BROWN,BROWN; AE71..CP..CND SR-5 PACKAGE,FB,BROWN,BROWN |
71073-1A593-06 |
— | ||
|
71073S
|
71073S
71073-1A593-13
Cover, Front Seat Back, Rh(For Separate Type)
[08.1982 - 07.1983] AE71..CP..USA FB,GRAY,GRAY; AE71..CP..CND SR-5 PACKAGE,FB,GRAY,GRAY |
71073-1A593-13 |
— | ||
|
71073S
|
71073S
71073-1A722-06
Cover, Front Seat Back, Rh(For Separate Type)
[08.1982 - 07.1983] AE71..CP..USA SR-5 PACKAGE,K-TY,BROWN,BROWN |
71073-1A722-06 |
— | ||
|
71073S
|
71073S
71073-1E130-01
Cover, Front Seat Back, Rh(For Separate Type)
[08.1982 - 10.1982] AE71..(CP,HT)..USA SPORT SEAT,FB,BLACK,BLACK |
71073-1E130-01 |
— | ||
| replacement | |||||
|
71073S
|
71073S
71073-1E131-01
Cover, Front Seat Back, Rh(For Separate Type)
[08.1982 - 10.1982] AE71..(CP,HT)..USA SPORT SEAT,FB,BLACK,BLACK |
71073-1E131-01 |
— | ||
|
71073S
|
71073S
71073-1E131-01
Cover, Front Seat Back, Rh(For Separate Type)
[10.1982 - 07.1983] AE71..(CP,HT)..USA SPORT SEAT,FB,BLACK,BLACK |
71073-1E131-01 |
— | ||
|
71074S
|
71074S
71074-12580-01
Cover, Front Seat Back, Lh(For Separate Type)
[08.1982 - 10.1982] AE71..(CP,HT)..USA SPORT SEAT,FB,BLACK,BLACK |
71074-12580-01 |
— | ||
| replacement | |||||
|
71074S
|
71074S
71074-12581-01
Cover, Front Seat Back, Lh(For Separate Type)
[08.1982 - 10.1982] AE71..(CP,HT)..USA SPORT SEAT,FB,BLACK,BLACK |
71074-12581-01 |
— | ||
|
71074S
|
71074S
71074-12581-01
Cover, Front Seat Back, Lh(For Separate Type)
[10.1982 - 07.1983] AE71..(CP,HT)..USA SPORT SEAT,FB,BLACK,BLACK |
71074-12581-01 |
— | ||
|
71074S
|
71074S
71074-12741-04
Cover, Front Seat Back, Lh(For Separate Type)
[08.1982 - 07.1983] AE71..CP..USA FB,BLUE,BLUE; AE71..CP..CND SR-5 PACKAGE,FB,BLUE,BLUE |
71074-12741-04 |
— | ||
|
71074S
|
71074S
71074-12741-06
Cover, Front Seat Back, Lh(For Separate Type)
[08.1982 - 07.1983] AE71..CP..USA FB,BROWN,BROWN; AE71..CP..CND SR-5 PACKAGE,FB,BROWN,BROWN |
71074-12741-06 |
— | ||
|
71074S
|
71074S
71074-12741-13
Cover, Front Seat Back, Lh(For Separate Type)
[08.1982 - 07.1983] AE71..CP..USA FB,GRAY,GRAY; AE71..CP..CND SR-5 PACKAGE,FB,GRAY,GRAY |
71074-12741-13 |
— | ||
|
71074S
|
71074S
71074-12791-06
Cover, Front Seat Back, Lh(For Separate Type)
[08.1982 - 07.1983] AE71..CP..USA SR-5 PACKAGE,K-TY,BROWN,BROWN |
71074-12791-06 |
— | ||
|
71511S
|
71511S
71511-12350
Pad, Front Seat Cushion, Rh(For Separate Type)
[08.1982 - 07.1983] AE71..(CP,HT)..USA W/SPORT SEAT |
71511-12350 |
— | ||
|
71511S
|
71511S
71511-12371
Pad, Front Seat Cushion, Rh(For Separate Type)
[08.1981 - 07.1983] AE71,TE72..CP,HT,LB |
71511-12371 |
— | ||
|
71512S
|
71512S
71511-12350
Pad, Front Seat Cushion, Rh(For Separate Type)
[08.1982 - 07.1983] AE71..(CP,HT)..USA W/SPORT SPORT |
71511-12350 |
— | ||
|
71512S
|
71512S
71511-12371
Pad, Front Seat Cushion, Rh(For Separate Type)
[08.1981 - 07.1983] AE71,TE72..CP,HT,LB |
71511-12371 |
— | ||
|
71551S
|
71551S
71551-12331
Pad, Front Seat Back, Rh(For Separate Type)
[08.1981 - 07.1983] AE71,TE72..CP |
71551-12331 |
— | ||
|
71551S
|
71551S
71551-12360
Pad, Front Seat Back, Rh(For Separate Type)
[08.1982 - 07.1983] AE71..(CP,HT)..USA W/SPORT SEAT |
71551-12360 |
— | ||
|
71552S
|
71552S
71551-12331
Pad, Front Seat Back, Rh(For Separate Type)
[08.1981 - 07.1983] AE71,TE72..CP |
71551-12331 |
— | ||
|
71610S
|
71610S
71610-12111
Spring Assy, Front Seat Cushion, Rh(For Separate Type)
[08.1981 - 07.1983] AE71,TE72..CP,HT,LB |
71610-12111 |
— | ||
|
71620S
|
71620S
71620-12111
Spring Assy, Front Seat Cushion, Lh(For Separate Type)
[08.1981 - 07.1983] AE71,TE72..CP,HT,LB |
71620-12111 |
— | ||
|
71630S
|
71630S
71630-10100
Spring Assy, Front Seat Back, Rh(For Separate Type)
[08.1982 - 07.1983] AE71..(CP,HT)..USA W/SPORT SEAT |
71630-10100 |
— | ||
|
71630S
|
71630S
71630-12191
Spring Assy, Front Seat Back, Rh(For Separate Type)
[08.1981 - 07.1983] AE71,TE72..CP |
71630-12191 |
— | ||
|
71640S
|
71640S
71640-12181
Spring Assy, Front Seat Back, Lh(For Separate Type)
[08.1981 - 07.1983] AE71,TE72..CP |
71640-12181 |
— | ||
|
71640S
|
71640S
71640-12210
Spring Assy, Front Seat Back, Lh(For Separate Type)
[08.1982 - 07.1983] AE71..(CP,HT)..USA W/SPORT SEAT |
71640-12210 |
— | ||
|
71812
|
71812
90468-18071
Clip (For Front Seat Cushion Cover)
[08.1979 - 07.1983] AE71,TE72 |
90468-18071 |
— | ||
| replacement | |||||
|
71812
|
71812
90468-16019 Clip (For Rear Seat Back)[08.1979 - 07.1983] AE71,TE72 |
90468-16019 |
from US $0.78 |
||
|
71950
|
71950
71910-12200
Headrest Assy, Front Seat
[08.1982 - 07.1983] AE71..CP..USA W/SPORT SEAT,RH |
71910-12200 |
— | ||
|
71950
|
71950
71920-12060
Headrest Assy, Front Seat
[08.1982 - 07.1983] AE71..CP..USA W/SPORT SEAT,LH |
71920-12060 |
— | ||
|
71956A
|
71956A
71930-10060-01
Support, Front Seat Headrest
[08.1982 - 07.1983] AE71 W(LOCK),W/ADJUSTER,BLACK,BLACK |
71930-10060-01 |
— | ||
| replacement | |||||
|
71956A
|
71956A
71930-10060-B1
Support, Front Seat Headrest
[08.1982 - 07.1983] AE71 W(LOCK),W/ADJUSTER,BLACK,BLACK |
71930-10060-B1 |
— | ||
|
71956A
|
71956A
71930-10060-04
Support, Front Seat Headrest
[08.1982 - 07.1983] AE71 W(LOCK),W/ADJUSTER,BLUE,BLUE |
71930-10060-04 |
— | ||
| replacement | |||||
|
71956A
|
71956A
71930-10060-B1
Support, Front Seat Headrest
[08.1982 - 07.1983] AE71 W(LOCK),W/ADJUSTER,BLUE,BLUE |
71930-10060-B1 |
— | ||
|
71956A
|
71956A
71930-10060-16 Support, Front Seat Headrest[08.1982 - 07.1983] AE71 W(LOCK),W/ADJUSTER,DARK BROWN,SABLE |
71930-10060-16 |
US $17.18 |
||
| replacement | |||||
|
71956A
|
71956A
71930-10060-B1
Support, Front Seat Headrest
[08.1982 - 07.1983] AE71 W(LOCK),W/ADJUSTER,DARK BROWN,SABLE |
71930-10060-B1 |
— | ||
|
71956A
|
71956A
71931-10010-01
Support, Front Seat Headrest
[08.1982 - 07.1983] AE71 W/O(LOCK),W/O ADJUSTER,BLACK,BLACK |
71931-10010-01 |
— | ||
| replacement | |||||
|
71956A
|
71956A
71931-10010-B1
Support, Front Seat Headrest
[08.1982 - 07.1983] AE71 W/O(LOCK),W/O ADJUSTER,BLACK,BLACK |
71931-10010-B1 |
— | ||
|
71956A
|
71956A
71931-10010-04 Support, Front Seat Headrest[08.1982 - 07.1983] AE71 W/O(LOCK),W/O ADJUSTER,BLUE,BLUE |
71931-10010-04 |
US $10.92 |
||
| replacement | |||||
|
71956A
|
71956A
71931-10010-B1
Support, Front Seat Headrest
[08.1982 - 07.1983] AE71 W/O(LOCK),W/O ADJUSTER,BLUE,BLUE |
71931-10010-B1 |
— | ||
|
71956A
|
71956A
71931-10010-16 Support, Front Seat Headrest[08.1982 - 07.1983] AE71 W/O(LOCK),W/O ADJUSTER,DARK BROWN,SABLE |
71931-10010-16 |
US $10.92 |
||
| replacement | |||||
|
71956A
|
71956A
71931-10010-B1
Support, Front Seat Headrest
[08.1982 - 07.1983] AE71 W/O(LOCK),W/O ADJUSTER,DARK BROWN,SABLE |
71931-10010-B1 |
— | ||
|
72510
|
72510
72010-12260-01
Adjuster Assy, Reclining Seat Back, Rh
[08.1981 - 07.1983] AE71,TE72..CP,HT,LB BLACK,BLACK |
72010-12260-01 |
— | ||
|
72510
|
72510
72010-12260-04
Adjuster Assy, Reclining Seat Back, Rh
[08.1981 - 07.1983] AE71,TE72..CP,HT,LB BLUE,BLUE |
72010-12260-04 |
— | ||
| replacement | |||||
|
72510
|
72510
72010-12260-01
Adjuster Assy, Reclining Seat Back, Rh
[08.1981 - 07.1983] AE71,TE72..CP,HT,LB BLUE,BLUE |
72010-12260-01 |
— | ||
|
72510
|
72510
72010-12260-06
Adjuster Assy, Reclining Seat Back, Rh
[08.1981 - 07.1983] AE71,TE72..CP,HT,LB DARK BROWN,BROWN |
72010-12260-06 |
— | ||
| replacement | |||||
|
72510
|
72510
72010-12260-01
Adjuster Assy, Reclining Seat Back, Rh
[08.1981 - 07.1983] AE71,TE72..CP,HT,LB DARK BROWN,BROWN |
72010-12260-01 |
— | ||
|
72510A
|
72510A
90506-18015
Spring, Tension (For Front Seat Adjuster Outer)
[08.1979 - 07.1983] AE71,TE72 |
90506-18015 |
— | ||
|
72520
|
72520
72020-12240-01
Adjuster Assy, Reclining Seat Back, Lh
[08.1981 - 07.1983] AE71,TE72..CP,HT,LB BLACK,BLACK |
72020-12240-01 |
— | ||
|
72520
|
72520
72020-12240-04
Adjuster Assy, Reclining Seat Back, Lh
[08.1981 - 07.1983] AE71,TE72..CP,HT,LB BLUE,BLUE |
72020-12240-04 |
— | ||
| replacement | |||||
|
72520
|
72520
72020-12240-01
Adjuster Assy, Reclining Seat Back, Lh
[08.1981 - 07.1983] AE71,TE72..CP,HT,LB BLUE,BLUE |
72020-12240-01 |
— | ||
|
72520
|
72520
72020-12240-06 Adjuster Assy, Reclining Seat Back, Lh[08.1981 - 07.1983] AE71,TE72..CP,HT,LB DARK BROWN,BROWN |
72020-12240-06 |
US $196.56 |
||
| replacement | |||||
|
72520
|
72520
72020-12240-01
Adjuster Assy, Reclining Seat Back, Lh
[08.1981 - 07.1983] AE71,TE72..CP,HT,LB DARK BROWN,BROWN |
72020-12240-01 |
— | ||
|
72520A
|
72520A
72210-12070 Cable, Adjuster To Seat TrackADJUSTER TO SEAT TRACK [08.1981 - 07.1983] AE71,TE72..2D |
72210-12070 |
US $30.28 |
||
|
72524
|
72524
72525-12080-01
Handle, Reclining Adjuster Release
[08.1979 - 07.1983] AE71,TE72 RH,BLACK,BLACK |
72525-12080-01 |
— | ||
|
72524
|
72524
72525-12080-04
Handle, Reclining Adjuster Release
[08.1979 - 07.1983] AE71,TE72 RH,BLUE,BLUE |
72525-12080-04 |
— | ||
| replacement | |||||
|
72524
|
72524
72525-12080-01
Handle, Reclining Adjuster Release
[08.1979 - 07.1983] AE71,TE72 RH,BLUE,BLUE |
72525-12080-01 |
— | ||
|
72524
|
72524
72525-12080-16 Handle, Reclining Adjuster ReleaseRECLINING ADJUSTER RELEASE [08.1981 - 07.1983] AE71,TE72 RH,DARK BROWN,BROWN |
72525-12080-16 |
US $13.25 |
||
| replacement | |||||
|
72524
|
72524
72525-12080-01
Handle, Reclining Adjuster Release
[08.1981 - 07.1983] AE71,TE72 RH,DARK BROWN,BROWN |
72525-12080-01 |
— | ||
|
72524
|
72524
72526-12020-01
Handle, Reclining Adjuster Release
[08.1979 - 07.1983] AE71,TE72 LH,BLACK,BLACK |
72526-12020-01 |
— | ||
|
72524
|
72524
72526-12020-04
Handle, Reclining Adjuster Release
[08.1979 - 07.1983] AE71,TE72 LH,BLUE,BLUE |
72526-12020-04 |
— | ||
| replacement | |||||
|
72524
|
72524
72526-12020-01
Handle, Reclining Adjuster Release
[08.1979 - 07.1983] AE71,TE72 LH,BLUE,BLUE |
72526-12020-01 |
— | ||
|
72524
|
72524
72526-12020-16 Handle, Reclining Adjuster ReleaseRECLINING ADJUSTER RELEASE [08.1981 - 07.1983] AE71,TE72 LH,DARK BROWN,BROWN |
72526-12020-16 |
US $13.25 |
||
| replacement | |||||
|
72524
|
72524
72526-12020-01
Handle, Reclining Adjuster Release
[08.1981 - 07.1983] AE71,TE72 LH,DARK BROWN,BROWN |
72526-12020-01 |
— | ||
|
72553
|
72553
72553-12020
Cover, Reclining Pedal
[08.1979 - 07.1983] AE71,TE72..2D ARAKAWA |
72553-12020 |
— | ||
|
72553
|
72553
72553-12030
Cover, Reclining Pedal
[08.1979 - 07.1983] AE71,TE72..2D SHIROKI |
72553-12030 |
— | ||
|
9011908174
|
9011908174
90119-08174 New Genuine Part |
90119-08174 |
US $2.33 |
||
|
9011910116
|
9011910116
90119-10116
New Genuine Part
|
90119-10116 |
— | ||
| replacement | |||||
|
9011910116
|
9011910116
90119-10229 BOLT |
90119-10229 |
US $3.67 |
||
|
9015950070
|
9015950070
90159-50070 New Genuine Part |
90159-50070 |
US $1.75 |
||
|
9016840011
|
9016840011
90168-40011 SCREW |
90168-40011 |
US $1.22 |
||
|
9038612016
|
9038612016
90386-12016 Bush (For Front Seat Hinge Pin) |
90386-12016 |
US $6.84 |
||
|
9052308001
|
9052308001
90523-08001 E Ring (For Tilt Motor Shaft, Lower) |
90523-08001 |
from US $1.40 |
||
|
9161560820
|
9161560820
91615-60820
Bolt (For Transmission Control Cable Bracket)
|
91615-60820 |
— | ||
| replacement | |||||
|
9161560820
|
9161560820
91611-B0816 Bolt |
91611-B0816 |
from US $1.03 |
||
