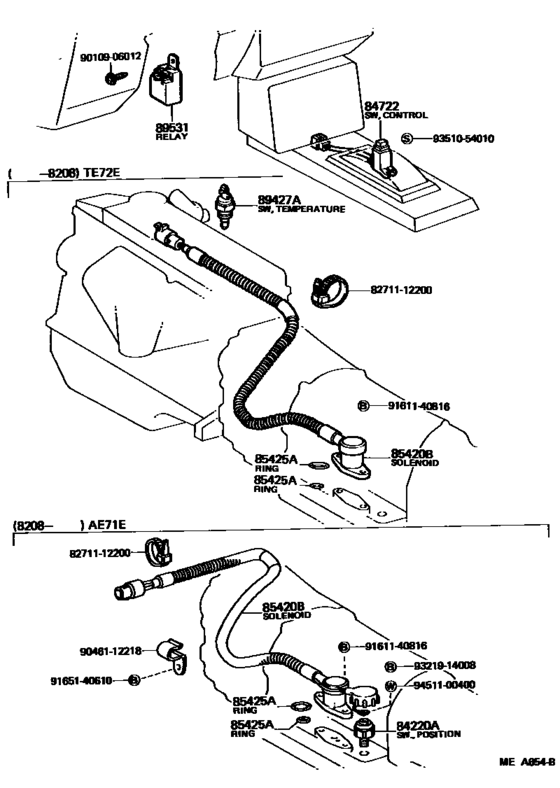

Overdrive & Electronic Controlled Transmission ([08.1981 - ] (8108- )4FC) Diagram Toyota COROLLA
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- AE71
- grade
- DX
- body
- CP
- ENGINE
- 4AC
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- COROLLA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84220A
|
84220A
84220-30050
Switch Assy, Transmission Position Indicator
[08.1982 - 07.1983] AE71..4FC |
84220-30050 |
— | ||
|
84722
|
84722
84722-14060
Switch, Transmission Control
[08.1981 - 07.1983] AE71,TE72..4FC |
84722-14060 |
— | ||
|
85420B
|
85420B
85420-12010
Solenoid Assy, Transmission
[08.1982 - 07.1983] AE71..4FC |
85420-12010 |
— | ||
|
85425A
|
85425A
90301-11001 Ring, O (For Transmission Oil Filler Plug)[08.1981 - 07.1983] AE71,TE72..4FC OD=11 |
90301-11001 |
US $2.56 |
||
|
85425A
|
85425A
90301-23001 Ring, O (For Transmission Solenoid)[08.1981 - 07.1983] AE71,TE72..4FC OD=23.5 |
90301-23001 |
US $5.24 |
||
|
89531
|
89531
89531-12010
Relay, Transmission Control
[08.1981 - 07.1983] AE71,TE72..4FC |
89531-12010 |
— | ||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.62 |
||
|
9010906012
|
9010906012
90109-06012
New Genuine Part
|
90109-06012 |
— | ||
|
9046112218
|
9046112218
90461-12218 New Genuine Part |
90461-12218 |
US $4.51 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.03 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.56 |
||
|
9321914008
|
9321914008
93219-14008 Screw, W/washer(For Bearing Cover Setting) |
93219-14008 |
from US $2.08 |
||
|
9351054010
|
9351054010
93510-54010
New Genuine Part
|
93510-54010 |
— | ||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
