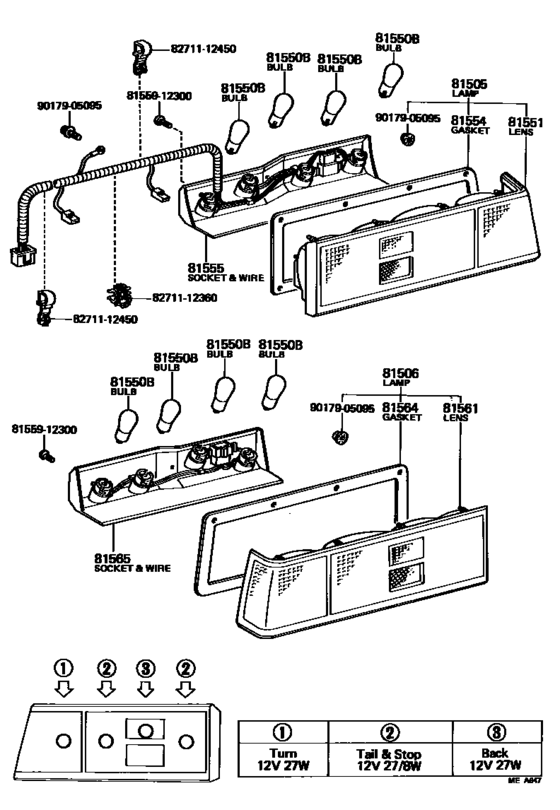

Rear Combination Lamp ([08.1981 - ] (8108- )SED) Diagram Toyota COROLLA
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- AE71
- grade
- DX
- body
- SED
- ENGINE
- 4AC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81505
|
81505
81505-19376 Lamp Sub-Assy, Rear Combination, RhREAR COMBINATION, RH [08.1981 - 07.1983] AE71,TE72..SED KOITO |
81505-19376 |
US $241.70 |
||
|
81505
|
81505
81505-19387
Lamp Sub-Assy, Rear Combination, Rh
[01.1982 - 07.1983] AE71,TE72..SED IKI |
81505-19387 |
— | ||
| replacement | |||||
|
81505
|
81505
81505-12322 Lamp Sub-Assy, Rear Combination, Rh[01.1982 - 07.1983] AE71,TE72..SED IKI |
81505-12322 |
US $282.46 |
||
|
81506
|
81506
81506-19246 Lamp Sub-Assy, Rear Combination, LhREAR COMBINATION, LH [08.1981 - 07.1983] AE71,TE72..SED KOITO |
81506-19246 |
US $241.70 |
||
|
81506
|
81506
81506-19257 Lamp Sub-Assy, Rear Combination, Lh[01.1982 - 07.1983] AE71,TE72..SED IKI |
81506-19257 |
US $267.90 |
||
| replacement | |||||
|
81506
|
81506
81506-12252 Lamp Sub-Assy, Rear Combination, Lh[01.1982 - 07.1983] AE71,TE72..SED IKI |
81506-12252 |
US $253.34 |
||
|
81550B
|
81550B
99132-11270 Bulb, Fog Lamp[08.1979 - 07.1983] AE71,TE72 12V 27W,12V 27W |
99132-11270 |
US $3.36 |
||
|
81550B
|
81550B
99132-21270 Bulb (For Front Turn Signal Lamp)[08.1979 - 07.1983] AE71,TE72 12V 27/8W,12V 27/8W |
99132-21270 |
US $4.32 |
||
|
81551
|
81551
81551-12581 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.1981 - 07.1983] AE71,TE72..SED KOITO |
81551-12581 |
US $205.30 |
||
|
81551
|
81551
81551-12603 Lens, Rear Combination Lamp, Rh[01.1982 - 07.1983] AE71,TE72..SED IKI |
81551-12603 |
US $218.40 |
||
|
81554
|
81554
81554-12511
Gasket, Rear Combination Lamp Body, Rh
[08.1981 - 07.1983] AE71,TE72..SED KOITO |
81554-12511 |
— | ||
|
81554
|
81554
81554-12522
Gasket, Rear Combination Lamp Body, Rh
[08.1981 - 07.1983] AE71,TE72..SED IKI |
81554-12522 |
— | ||
|
81555
|
81555
81555-12582 Socket & Wire Sub-Assy, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.1981 - 07.1983] AE71,TE72..SED KOITO |
81555-12582 |
US $113.57 |
||
|
81555
|
81555
81555-12602 Socket & Wire Sub-Assy, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.1981 - 07.1983] AE71,TE72..SED IKI |
81555-12602 |
US $99.01 |
||
|
81561
|
81561
81561-12581 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1981 - 07.1983] AE71,TE72..SED KOITO |
81561-12581 |
US $205.30 |
||
|
81561
|
81561
81561-12602 Lens, Rear Combination Lamp, Lh[01.1982 - 07.1983] AE71,TE72..SED IKI |
81561-12602 |
US $218.40 |
||
|
81564
|
81564
81554-12511
Gasket, Rear Combination Lamp Body, Rh
[08.1981 - 07.1983] AE71,TE72..SED KOITO |
81554-12511 |
— | ||
|
81564
|
81564
81564-12521 Gasket, Rear Combination Lamp Body, LhREAR COMBINATION LAMP BODY, LH [08.1981 - 07.1983] AE71,TE72..SED IKI |
81564-12521 |
US $13.54 |
||
|
81565
|
81565
81565-12581 Socket & Wire Sub-Assy, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1981 - 07.1983] AE71,TE72..SED KOITO |
81565-12581 |
US $56.93 |
||
|
81565
|
81565
81565-12601 Socket & Wire Sub-Assy, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1981 - 07.1983] AE71,TE72..SED IKI |
81565-12601 |
US $53.29 |
||
|
8155912300
|
8155912300
81559-12300
Bracket,foglamp,rh No.2
|
81559-12300 |
— | ||
| replacement | |||||
|
8155912300
|
8155912300
81279-91D01
Bracket,foglamp,rh No.2
|
81279-91D01 |
— | ||
|
8271112360
|
8271112360
82711-12360
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-12360 |
— | ||
|
8271112450
|
8271112450
82711-12450 Wire, Fuse To Fuse(for Combustion Heater) |
82711-12450 |
US $9.17 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $2.08 |
||
