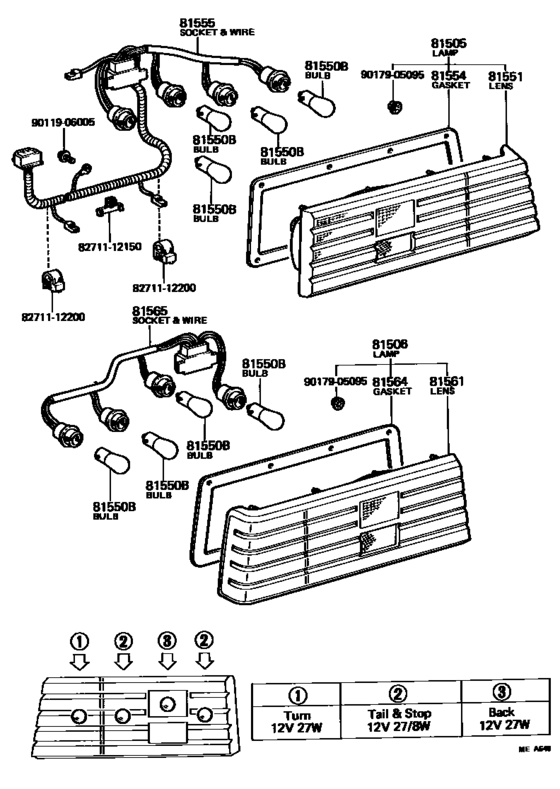

Rear Combination Lamp ([08.1981 - ] (8108- )LB) Diagram Toyota COROLLA
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- AE71
- grade
- DX
- body
- LB
- ENGINE
- 4AC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81505
|
81505
81505-19565 Lamp Sub-Assy, Rear Combination, RhREAR COMBINATION, RH [08.1981 - 07.1983] AE71,TE72..LB |
81505-19565 |
US $241.70 |
||
|
81506
|
81506
81506-19425 Lamp Sub-Assy, Rear Combination, LhREAR COMBINATION, LH [08.1981 - 07.1983] AE71,TE72..LB |
81506-19425 |
US $241.70 |
||
|
81550B
|
81550B
99132-11270 Bulb, Fog Lamp[08.1979 - 07.1983] AE71,TE72 12V 27W,12V 27W |
99132-11270 |
US $3.36 |
||
|
81550B
|
81550B
99132-21270 Bulb (For Front Turn Signal Lamp)[08.1979 - 07.1983] AE71,TE72 12V 27/8W,12V 27/8W |
99132-21270 |
US $4.32 |
||
|
81551
|
81551
81551-1A080 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.1981 - 07.1983] AE71,TE72..LB |
81551-1A080 |
US $227.14 |
||
|
81554
|
81554
81554-1A070
Gasket, Rear Combination Lamp Body, Rh
[08.1981 - 07.1983] AE71,TE72..LB |
81554-1A070 |
— | ||
|
81555
|
81555
81555-1A080 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[08.1981 - 07.1983] AE71,TE72..LB |
81555-1A080 |
US $109.20 |
||
|
81561
|
81561
81561-1A080 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1981 - 07.1983] AE71,TE72..LB |
81561-1A080 |
US $205.30 |
||
|
81564
|
81564
81554-1A070
Gasket, Rear Combination Lamp Body, Rh
[08.1981 - 07.1983] AE71,TE72..LB |
81554-1A070 |
— | ||
|
81565
|
81565
81565-1A080 Socket & Wire Sub-Assy, Rear Combination Lamp, Lh[08.1981 - 07.1983] AE71,TE72..LB |
81565-1A080 |
US $44.26 |
||
|
8271112150
|
8271112150
82711-12150 Wire, Fuse To Fuse(for Combustion Heater) |
82711-12150 |
US $4.02 |
||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.62 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $2.08 |
||
