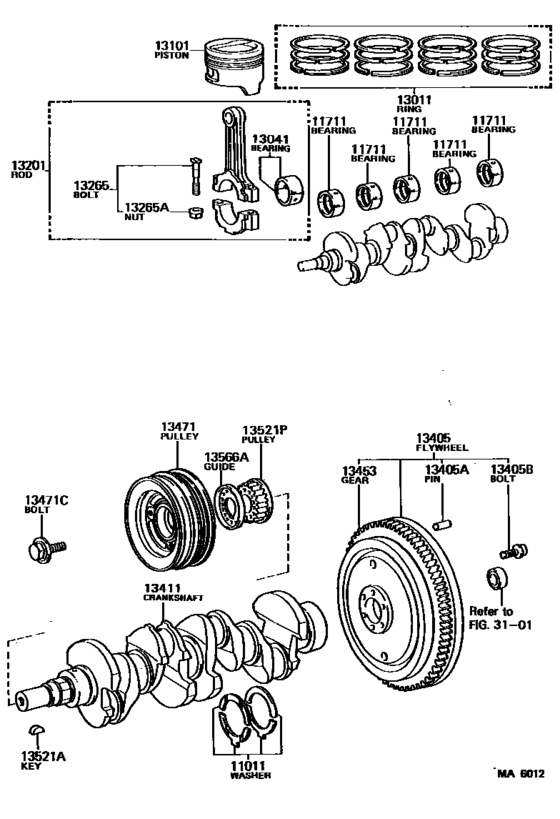

Crankshaft & Piston ([08.1982 - ] (8208- )) Diagram Toyota COROLLA
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- AE71
- grade
- DX
- body
- HT
- ENGINE
- 4AC
- TRANSMISSION
- ATM
- DESTINATION
- CND
- Model
- COROLLA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 3FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-15010
Washer Set, Crankshaft Thrust
[08.1982 - 07.1983] 4AC..AE71 STD |
11011-15010 |
— | ||
| replacement | |||||
|
11011
|
11011
11011-15021 Washer Set, Crankshaft Thrust[08.1982 - 07.1983] 4AC..AE71 STD |
11011-15021 |
from US $31.46 |
||
|
11711
|
11711
11701-15011-01 Bearing, Crankshaft[08.1982 - 01.1983] 4AC..AE71 MARK "1",MARK 1 |
11701-15011-01 |
US $51.25 |
||
|
11711
|
11711
11701-15011-02 Bearing, Crankshaft[08.1982 - 01.1983] 4AC..AE71 MARK "2",MARK 2 |
11701-15011-02 |
US $51.25 |
||
|
11711
|
11711
11701-15011-03 Bearing, Crankshaft[08.1982 - 01.1983] 4AC..AE71 MARK "3",MARK 3 |
11701-15011-03 |
US $51.25 |
||
|
11711
|
11711
11701-15030-01
Bearing, Crankshaft
[01.1983 - 07.1983] 4AC..AE71 MARK "1",MARK 1 |
11701-15030-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-16010-01 Bearing, Crankshaft[01.1983 - 07.1983] 4AC..AE71 MARK "1",MARK 1 |
11701-16010-01 |
from US $20.28 |
||
|
11711
|
11711
11701-15030-02 Bearing, Crankshaft[01.1983 - 07.1983] 4AC..AE71 MARK "2",MARK 2 |
11701-15030-02 |
US $46.30 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-02 Bearing, Crankshaft[01.1983 - 07.1983] 4AC..AE71 MARK "2",MARK 2 |
11701-16010-02 |
from US $18.29 |
||
|
11711
|
11711
11701-15030-03 Bearing, Crankshaft[01.1983 - 07.1983] 4AC..AE71 MARK "3",MARK 3 |
11701-15030-03 |
US $46.30 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-03 Bearing, Crankshaft[01.1983 - 07.1983] 4AC..AE71 MARK "3",MARK 3 |
11701-16010-03 |
from US $20.73 |
||
|
13011
|
13011
13011-16010 Ring Set, Piston[08.1982 - 04.1983] 4AC..AE71 STD |
13011-16010 |
US $238.78 |
||
| replacement | |||||
|
13011
|
13011
13011-16011 Ring Set, Piston[08.1982 - 04.1983] 4AC..AE71 STD |
13011-16011 |
US $219.86 |
||
|
13011
|
13011
13011-16011 Ring Set, Piston[04.1983 - 07.1983] 4AC..AE71 STD |
13011-16011 |
US $219.86 |
||
|
13041
|
13041
13041-15011-01 Bearing, Connecting Rod[08.1982 - 07.1983] 4AC..AE71 MARK "1",MARK 1 |
13041-15011-01 |
US $37.56 |
||
|
13041
|
13041
13041-15011-02 Bearing, Connecting Rod[08.1982 - 07.1983] 4AC..AE71 MARK "2",MARK 2 |
13041-15011-02 |
US $37.56 |
||
|
13041
|
13041
13041-15011-03 Bearing, Connecting Rod[08.1982 - 07.1983] 4AC..AE71 MARK "3",MARK 3 |
13041-15011-03 |
US $37.56 |
||
|
13041
|
13041
13041-15030-01 Bearing, Connecting Rod[07.1983 - 07.1983] 4AC..AE71 MARK "1",MARK 1 |
13041-15030-01 |
US $33.63 |
||
| replacement | |||||
|
13041
|
13041
13041-15031-01 Bearing, Connecting Rod[07.1983 - 07.1983] 4AC..AE71 MARK "1",MARK 1 |
13041-15031-01 |
from US $17.57 |
||
|
13041
|
13041
13041-15030-02 Bearing, Connecting Rod[07.1983 - 07.1983] 4AC..AE71 MARK "2",MARK 2 |
13041-15030-02 |
US $33.63 |
||
| replacement | |||||
|
13041
|
13041
13041-15031-02 Bearing, Connecting Rod[07.1983 - 07.1983] 4AC..AE71 MARK "2",MARK 2 |
13041-15031-02 |
from US $16.01 |
||
|
13041
|
13041
13041-15030-03 Bearing, Connecting Rod[07.1983 - 07.1983] 4AC..AE71 MARK "3",MARK 3 |
13041-15030-03 |
US $33.63 |
||
| replacement | |||||
|
13041
|
13041
13041-15031-03 Bearing, Connecting Rod[07.1983 - 07.1983] 4AC..AE71 MARK "3",MARK 3 |
13041-15031-03 |
US $38 |
||
|
13101
|
13101
13101-16010 Piston Sub-Assy, W/pin[08.1982 - 07.1983] 4AC..AE71 STD,STD |
13101-16010 |
US $66.68 |
||
| replacement | |||||
|
13101
|
13101
13101-16010-02 Piston Sub-Assy, W/pinW/PIN [08.1982 - 07.1983] 4AC..AE71 STD,STD |
13101-16010-02 |
from US $66.68 |
||
|
13201
|
13201
13201-19015 Rod Sub-Assy, Connecting[08.1982 - 05.1983] 4AC..AE71 |
13201-19015 |
US $167.44 |
||
| replacement | |||||
|
13201
|
13201
13201-19056 Rod Sub-Assy, Connecting[08.1982 - 05.1983] 4AC..AE71 |
13201-19056 |
US $147.06 |
||
|
13201
|
13201
13201-19016 Rod Sub-Assy, Connecting[05.1983 - 06.1983] 4AC..AE71 |
13201-19016 |
US $167.44 |
||
| replacement | |||||
|
13201
|
13201
13201-19056 Rod Sub-Assy, Connecting[05.1983 - 06.1983] 4AC..AE71 |
13201-19056 |
US $147.06 |
||
|
13201
|
13201
13201-19045 Rod Sub-Assy, Connecting[06.1983 - 07.1983] 4AC..AE71 |
13201-19045 |
US $167.44 |
||
| replacement | |||||
|
13201
|
13201
13201-19056 Rod Sub-Assy, Connecting[06.1983 - 07.1983] 4AC..AE71 |
13201-19056 |
US $147.06 |
||
|
13201
|
13201
13201-19055
Rod Sub-Assy, Connecting
[07.1983 - 07.1983] 4AC..AE71 |
13201-19055 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-19056 Rod Sub-Assy, Connecting[07.1983 - 07.1983] 4AC..AE71 |
13201-19056 |
US $147.06 |
||
|
13265
|
13265
13265-15020 Bolt, Connecting Rod[07.1983 - 07.1983] 4AC..AE71 |
13265-15020 |
US $6.41 |
||
| replacements | |||||
|
13265
|
13265
13265-16010 Bolt, Connecting Rod[07.1983 - 07.1983] 4AC..AE71 |
13265-16010 |
US $8 |
||
|
13265
|
13265
90170-09003 Nut, Hexagon(For Connecting Rod Bolt)[07.1983 - 07.1983] 4AC..AE71 |
90170-09003 |
US $2.88 |
||
|
13265
|
13265
13265-19015 Bolt, Connecting Rod[08.1982 - 07.1983] 4AC..AE71 |
13265-19015 |
US $6.70 |
||
|
13265A
|
13265A
90170-09001 Nut, Hexagon(For Connecting Rod Bolt)[07.1983 - 07.1983] 4AC..AE71 |
90170-09001 |
US $2.72 |
||
|
13265A
|
13265A
90179-08014 Nut, Hexagon(For Connecting Rod Bolt)[08.1982 - 07.1983] 4AC..AE71 |
90179-08014 |
from US $1.11 |
||
|
13411
|
13411
13411-15021 Crankshaft[08.1982 - 01.1983] 4AC..AE71 |
13411-15021 |
US $1,017.74 |
||
| replacement | |||||
|
13411
|
13411
13411-15900 Crankshaft[08.1982 - 01.1983] 4AC..AE71 |
13411-15900 |
from US $788.95 |
||
|
13411
|
13411
13411-15030 Crankshaft[01.1983 - 07.1983] 4AC..AE71 |
13411-15030 |
US $1,017.74 |
||
| replacement | |||||
|
13411
|
13411
13411-15900 Crankshaft[01.1983 - 07.1983] 4AC..AE71 |
13411-15900 |
from US $788.95 |
||
|
13471
|
13471
13407-15030
Pulley, Crankshaft
[08.1982 - 07.1983] 4AC..AE71 |
13407-15030 |
— | ||
| replacement | |||||
|
13471
|
13471
13470-15030
Pulley, Crankshaft
[08.1982 - 07.1983] 4AC..AE71 |
13470-15030 |
— | ||
|
13471C
|
13471C
90105-12012 Bolt(For Crankshaft Pulley Set)[08.1982 - 07.1983] 4AC..AE71 |
90105-12012 |
US $4.89 |
||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[08.1979 - 07.1983] 4AC..AE71; 3TC..TE72 |
90280-05010 |
US $4.16 |
||
|
13521P
|
13521P
13521-15010 Pulley, Crankshaft Timing[08.1982 - 07.1983] 4AC..AE71 |
13521-15010 |
from US $18.56 |
||
|
13566A
|
13566A
13566-15010 Guide, Timing Belt[08.1982 - 07.1983] 4AC..AE71 |
13566-15010 |
from US $5.44 |
||
