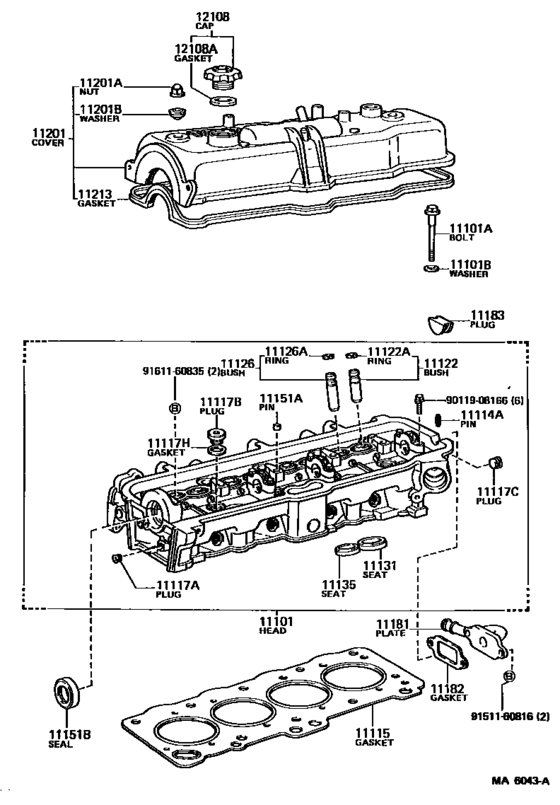

Cylinder Head ([08.1982 - ] (8208- )) Diagram Toyota COROLLA
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- AE71
- grade
- DX
- body
- HT
- ENGINE
- 4AC
- TRANSMISSION
- ATM
- DESTINATION
- CND
- Model
- COROLLA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 3FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-15030 Head Sub-Assy, CylinderCYLINDER [08.1982 - 04.1983] 4AC..AE71 |
11101-15030 |
US $955.14 |
||
| replacement | |||||
|
11101
|
11101
11101-15031
Head Sub-Assy, Cylinder
[08.1982 - 04.1983] 4AC..AE71 |
11101-15031 |
— | ||
|
11101
|
11101
11101-15031
Head Sub-Assy, Cylinder
[04.1983 - 07.1983] 4AC..AE71 |
11101-15031 |
— | ||
|
11101A
|
11101A
90109-10025 Bolt(For Cylinder Head Set)[08.1982 - 07.1983] 4AC..AE71 |
90109-10025 |
from US $4.41 |
||
|
11101B
|
11101B
90201-10344 Washer, Plate(For Cylinder Head Set)[08.1982 - 07.1983] 4AC..AE71 |
90201-10344 |
US $1.76 |
||
|
11114A
|
11114A
90254-03003
Pin, Straight
[08.1982 - 07.1983] 4AC..AE71 |
90254-03003 |
— | ||
|
11115
|
11115
11115-16020 Gasket, Cylinder Head[08.1982 - 07.1983] 4AC..AE71 |
11115-16020 |
US $113.57 |
||
|
11117A
|
11117A
90344-51002 Plug, W/head Taper Screw, No.1[08.1982 - 07.1983] 4AC..AE71 |
90344-51002 |
US $3.93 |
||
|
11117B
|
11117B
90341-20002 Plug, W/head Taper Screw, No.1[08.1982 - 07.1983] 4AC..AE71 |
90341-20002 |
from US $2.88 |
||
|
11117C
|
11117C
90344-54002
Plug, W/head Taper Screw, No.3
[08.1982 - 07.1983] 4AC..AE71 |
90344-54002 |
— | ||
|
11117H
|
11117H
90430-20004 Gasket(For Cylinder Head Screw Plug)[08.1982 - 07.1983] 4AC..AE71 |
90430-20004 |
from US $0.99 |
||
|
11122
|
11122
11122-15020 Bush, Intake Valve Guide[08.1982 - 07.1983] 4AC..AE71 STD,STD |
11122-15020 |
US $12.23 |
||
|
11122
|
11122
11123-15020 Bush, Intake Valve Guide[08.1982 - 07.1983] 4AC..AE71 O/S 0.05,O/S 0.05 |
11123-15020 |
US $12.23 |
||
|
11122A
|
11122A
90520-10001 Ring, Shaft Snap (For Valve Guide Bush)[08.1982 - 07.1983] 4AC..AE71 |
90520-10001 |
US $1.75 |
||
|
11126
|
11126
11126-15020 Bush, Intake Valve Guide[08.1982 - 07.1983] 4AC..AE71 STD,STD |
11126-15020 |
US $12.58 |
||
|
11126
|
11126
11127-15020 Bush, Intake Valve Guide[08.1982 - 07.1983] 4AC..AE71 O/S 0.05,O/S 0.05 |
11127-15020 |
US $11.94 |
||
|
11126A
|
11126A
90520-10001 Ring, Shaft Snap (For Valve Guide Bush)[08.1982 - 07.1983] 4AC..AE71 |
90520-10001 |
US $1.75 |
||
|
11131
|
11131
11131-15020 Seat, Intake Valve[08.1982 - 07.1983] 4AC..AE71 STD,STD |
11131-15020 |
US $13.25 |
||
|
11131
|
11131
11132-15020 Seat, Intake Valve[08.1982 - 07.1983] 4AC..AE71 O/S 0.03,O/S 0.03 |
11132-15020 |
US $13.40 |
||
|
11135
|
11135
11135-15020 Seat, Exhaust Valve[08.1982 - 07.1983] 4AC..AE71 STD,STD |
11135-15020 |
US $34.65 |
||
| replacement | |||||
|
11135
|
11135
11135-15021 Seat, Exhaust Valve[08.1982 - 07.1983] 4AC..AE71 STD,STD |
11135-15021 |
US $17.33 |
||
|
11135
|
11135
11136-15020 Seat, Exhaust Valve[08.1982 - 07.1983] 4AC..AE71 O/S 0.03,O/S 0.03 |
11136-15020 |
US $19.36 |
||
| replacement | |||||
|
11135
|
11135
11136-15021 Seat, Exhaust Valve[08.1982 - 07.1983] 4AC..AE71 O/S 0.03,O/S 0.03 |
11136-15021 |
US $17.33 |
||
|
11151A
|
11151A
90253-11021 Pin, Ring[08.1982 - 07.1983] 4AC..AE71 L=8,OD=11 |
90253-11021 |
from US $1.46 |
||
|
11151B
|
11151B
90311-35003 Seal, Oil(For Camshaft Setting)[08.1982 - 07.1983] 4AC..AE71 |
90311-35003 |
US $3.79 |
||
| replacement | |||||
|
11151B
|
11151B
90311-35040 Seal, Oil(For Timing Chain Or Belt Cover)[08.1982 - 07.1983] 4AC..AE71 |
90311-35040 |
from US $5.60 |
||
|
11181
|
11181
11181-16010 Plate, Cylinder Head, RearCYLINDER HEAD, REAR [08.1982 - 07.1983] 4AC..AE71 |
11181-16010 |
US $22.71 |
||
|
11182
|
11182
11182-15011
Gasket, Cylinder Head Rear Plate
[08.1982 - 07.1983] 4AC..AE71 |
11182-15011 |
— | ||
| replacement | |||||
|
11182
|
11182
11182-15012
Gasket, Cylinder Head Rear Plate
[08.1982 - 07.1983] 4AC..AE71 |
11182-15012 |
— | ||
|
11183
|
11183
11183-15010 Plug, Semicircular[08.1982 - 07.1983] 4AC..AE71 |
11183-15010 |
US $8.56 |
||
|
11201
|
11201
11210-19025 Cover Sub-Assy, Cylinder Head[08.1982 - 07.1983] 4AC..AE71 |
11210-19025 |
US $179.09 |
||
|
11201A
|
11201A
90176-08007 Nut, Cap(For Cylinder Head Cover)[08.1982 - 07.1983] 4AC..AE71 |
90176-08007 |
from US $1.52 |
||
|
11201B
|
11201B
90210-09001
Washer, Seal(For Cylinder Head Cover)
[08.1982 - 07.1983] 4AC..AE71 |
90210-09001 |
— | ||
| replacement | |||||
|
11201B
|
11201B
90210-09019 Washer, Seal(For Cylinder Head Cover)[08.1982 - 07.1983] 4AC..AE71 |
90210-09019 |
from US $1.29 |
||
|
11213
|
11213
11213-15020 Gasket, Cylinder Head Cover[08.1982 - 07.1983] 4AC..AE71 |
11213-15020 |
US $29.88 |
||
|
12108
|
12108
12180-13010 Cap Sub-Assy, Oil Filler[08.1979 - 03.1983] 4AC..AE71; 3TC..TE72 |
12180-13010 |
from US $16.11 |
||
|
12108
|
12108
12180-70010
Cap Sub-Assy, Oil Filler
[03.1983 - 07.1983] 4AC..AE71 |
12180-70010 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-E0010 Cap Sub-Assy, Oil Filler[03.1983 - 07.1983] 4AC..AE71 |
12180-E0010 |
from US $13.67 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[08.1979 - 07.1983] 4AC..AE71; 3TC..TE72 |
90430-37140 |
from US $1.23 |
||
|
9011908166
|
9011908166
90119-08166 New Genuine Part |
90119-08166 |
US $2.18 |
||
| replacement | |||||
|
9011908166
|
9011908166
90119-08598 New Genuine Part |
90119-08598 |
US $2.33 |
||
|
9151160816
|
9151160816
91511-60816
BOLT
|
91511-60816 |
— | ||
| replacement | |||||
|
9151160816
|
9151160816
91511-B0816 BOLT |
91511-B0816 |
US $0.86 |
||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.44 |
||
