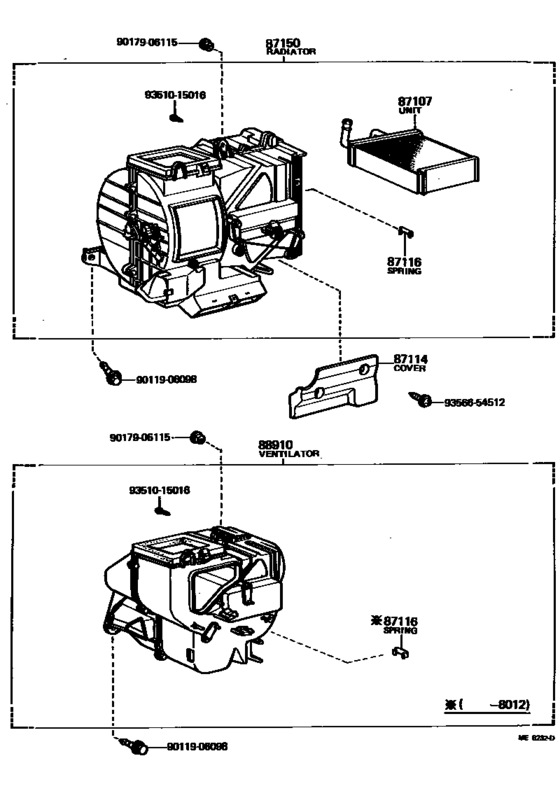

Heating & Air Conditioning - Heater Unit & Blower ([08.1979 - ] (7908- )) Diagram Toyota COROLLA
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- AE71
- grade
- DX
- body
- HT
- ENGINE
- 4AC
- TRANSMISSION
- ATM
- DESTINATION
- CND
- Model
- COROLLA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 3FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87107
|
87107
87107-12290
Unit Sub-Assy, Heater Radiator
[08.1982 - 07.1983] AE71 COLD SPEC |
87107-12290 |
— | ||
|
87116
|
87116
87116-14010
Spring, Heater Case Fastening
[08.1979 - 07.1983] AE71,TE72 |
87116-14010 |
— | ||
|
87150
|
87150
87150-12160
Radiator Assy, Heater
[08.1982 - 07.1983] AE71 COLD SPEC |
87150-12160 |
— | ||
|
9011906098
|
9011906098
90119-06098 BOLT |
90119-06098 |
US $1.28 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9351015016
|
9351015016
93510-15016 New Genuine Part |
93510-15016 |
US $3.06 |
||
|
9356654512
|
9356654512
93566-54512
SCREW
|
93566-54512 |
— | ||
| replacement | |||||
|
9356654512
|
9356654512
93568-54512 SCREW |
93568-54512 |
US $1.12 |
||
