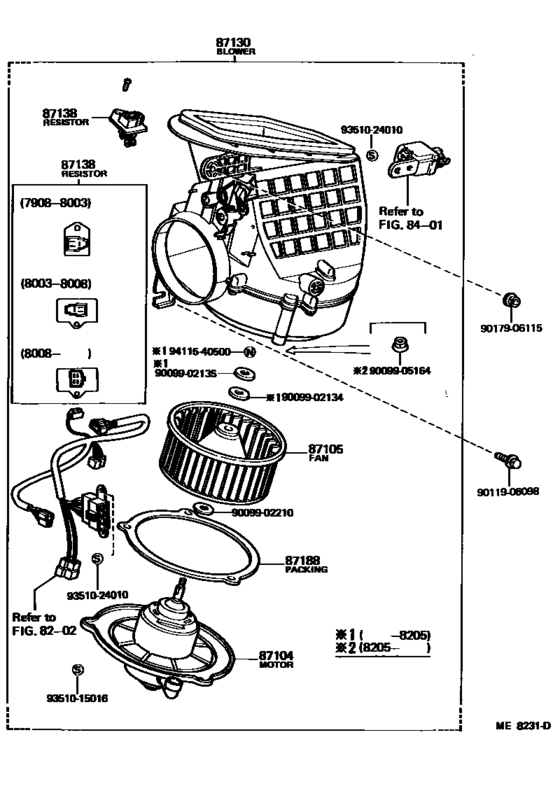

Heating & Air Conditioning - Heater Unit & Blower ([08.1979 - ] (7908- )) Diagram Toyota COROLLA
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- AE71
- grade
- DX
- body
- HT
- ENGINE
- 4AC
- TRANSMISSION
- ATM
- DESTINATION
- CND
- Model
- COROLLA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 3FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87104
|
87104
87104-12120
Motor Sub-Assy, Heater Blower
[08.1979 - 07.1983] AE71,TE72 |
87104-12120 |
— | ||
|
87105
|
87105
87105-12060
Fan Sub-Assy, Heater Blower
[08.1979 - 07.1983] AE71,TE72 |
87105-12060 |
— | ||
|
87130
|
87130
87130-12090
Blower Assy, Heater, Front
[08.1981 - 07.1983] AE71,TE72 |
87130-12090 |
— | ||
|
87138
|
87138
87138-12091
Resistor, Heater Blower
[08.1980 - 07.1983] AE71,TE72 |
87138-12091 |
— | ||
|
87188
|
87188
87127-12020
Packing, Heater Blower Motor
[08.1979 - 07.1983] AE71,TE72 |
87127-12020 |
— | ||
|
9009902134
|
9009902134
90099-02134
New Genuine Part
|
90099-02134 |
— | ||
|
9009902135
|
9009902135
90099-02135
New Genuine Part
|
90099-02135 |
— | ||
|
9009902210
|
9009902210
90099-02210 New Genuine Part |
90099-02210 |
US $0.87 |
||
|
9009905164
|
9009905164
90099-05164 Nut |
90099-05164 |
from US $0.87 |
||
|
9011906098
|
9011906098
90119-06098 BOLT |
90119-06098 |
US $1.28 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9351015016
|
9351015016
93510-15016 New Genuine Part |
93510-15016 |
US $3.06 |
||
|
9351024010
|
9351024010
93510-24010 New Genuine Part |
93510-24010 |
US $2.33 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.76 |
