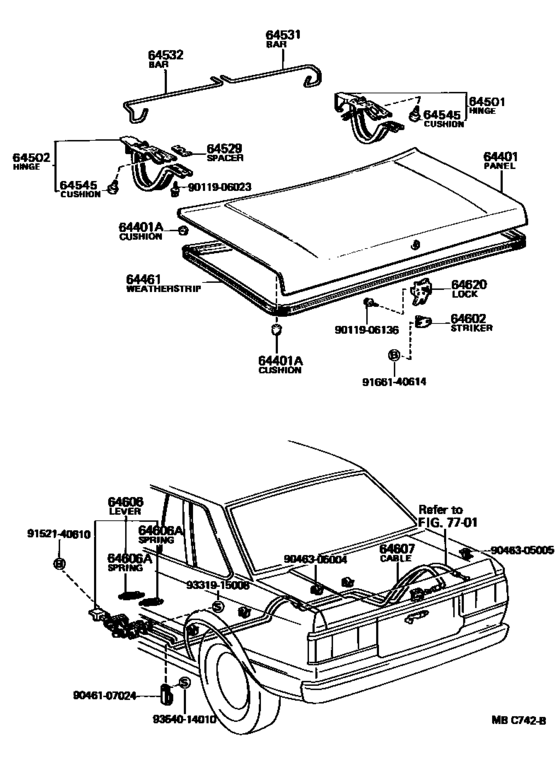

Luggage Compartment Door & Lock ([08.1979 - ] (7908- )HT,SED) Diagram Toyota COROLLA
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- AE71
- grade
- DX
- body
- HT
- ENGINE
- 4AC
- TRANSMISSION
- ATM
- DESTINATION
- CND
- Model
- COROLLA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 3FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64401
|
64401
64401-12912
Panel Sub-Assy, Luggage Compartment Door
[01.1981 - 07.1983] AE71,TE72..HT |
64401-12912 |
— | ||
|
64401A
|
64401A
90541-09007
Cushion(For Luggage Compartment Door Panel)
[01.1981 - 07.1983] AE71,TE72..HT RR |
90541-09007 |
— | ||
|
64401A
|
64401A
90541-09130 Cushion(For Luggage Compartment Door Panel)[08.1981 - 07.1983] AE71,TE72..HT FR |
90541-09130 |
US $1.49 |
||
|
64461
|
64461
64461-12190
Weatherstrip, Luggage Compartment Door
[01.1981 - 07.1983] AE71,TE72..HT |
64461-12190 |
— | ||
|
64501
|
64501
64510-12160
Hinge Sub-Assy, Luggage Compartment Door, Rh
[01.1981 - 07.1983] AE71,TE72..HT |
64510-12160 |
— | ||
|
64502
|
64502
64520-12150
Hinge Sub-Assy, Luggage Compartment Door, Lh
[01.1981 - 07.1983] AE71,TE72..HT |
64520-12150 |
— | ||
|
64529
|
64529
64529-22010 Spacer, Luggage Compartment Door HingeLUGGAGE COMPARTMENT DOOR HINGE [01.1981 - 07.1983] AE71,TE72..HT |
64529-22010 |
US $6.70 |
||
|
64531
|
64531
64531-12120
Bar, Luggage Door Hinge Torsion, Rh
[01.1981 - 07.1983] AE71,TE72..HT |
64531-12120 |
— | ||
|
64532
|
64532
64532-12110
Bar, Luggage Door Hinge Torsion, Lh
[01.1981 - 07.1983] AE71,TE72..HT |
64532-12110 |
— | ||
|
64545
|
64545
90541-07007
Cushion, Luggage Door Hinge
[01.1981 - 07.1983] AE71,TE72..HT |
90541-07007 |
— | ||
|
64602
|
64602
64620-22030
Striker Sub-Assy, Hood Lock
[08.1979 - 07.1983] AE71,TE72..HT,SED |
64620-22030 |
— | ||
|
64606
|
64606
64606-12040
Lever Sub-Assy, Luggage Door Lock Open
[08.1981 - 07.1983] AE71,TE72..HT |
64606-12040 |
— | ||
|
64606A
|
64606A
90506-09004 Spring, Tension(For Luggage Door Lock Open Lever)[08.1981 - 07.1983] AE71,TE72..HT |
90506-09004 |
US $2.62 |
||
|
64607
|
64607
64607-12110
Cable Sub-Assy, Luggage Door Lock Control
[08.1981 - 07.1983] AE71,TE72..HT |
64607-12110 |
— | ||
|
64620
|
64620
64610-20030
Lock Assy, Luggage Compartment Door
[08.1982 - 07.1983] AE71..HT W/CANCEL; AE71..SED..DX..USA W/CANCEL |
64610-20030 |
— | ||
|
9011906023
|
9011906023
90119-06023 New Genuine Part |
90119-06023 |
US $1.60 |
||
| replacement | |||||
|
9011906023
|
9011906023
90119-06514 BOLT WWASHER |
90119-06514 |
US $1.60 |
||
|
9011906136
|
9011906136
90119-06136
New Genuine Part
|
90119-06136 |
— | ||
|
9046107024
|
9046107024
90461-07024 New Genuine Part |
90461-07024 |
US $8.59 |
||
|
9046305004
|
9046305004
90463-05004 Clamp, No.2(For Luggage Door Lock Control Cable) |
90463-05004 |
US $2.62 |
||
|
9046305005
|
9046305005
90463-05005 Clamp, No.1(For Luggage Door Lock Control Cable) |
90463-05005 |
US $1.89 |
||
|
9152140610
|
9152140610
91521-40610
New Genuine Part
|
91521-40610 |
— | ||
|
9166140614
|
9166140614
91661-40614
New Genuine Part
|
91661-40614 |
— | ||
| replacement | |||||
|
9166140614
|
9166140614
91661-A0614 New Genuine Part |
91661-A0614 |
US $1.76 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
|
9354014010
|
9354014010
93540-14010 Clip, Headlining Retainer |
93540-14010 |
from US $0.96 |
||
