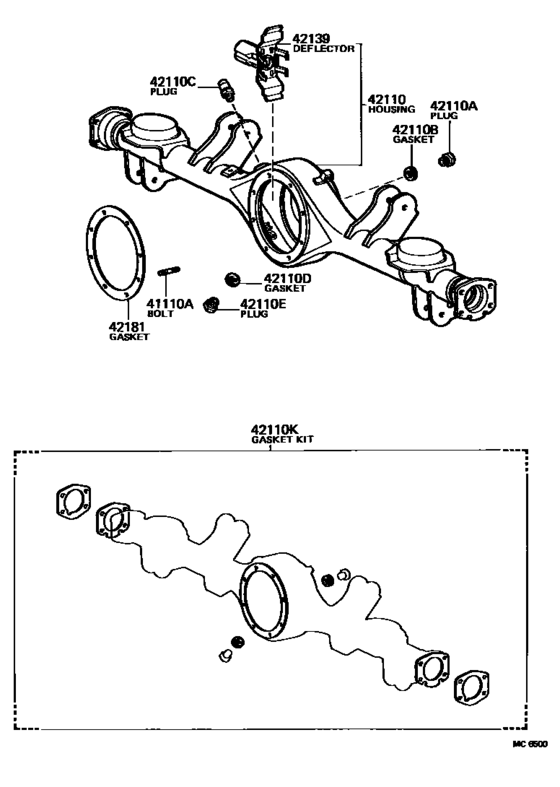

Rear Axle Housing & Differential ([08.1979 - ] (7908- )) Diagram Toyota COROLLA
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- AE71
- grade
- DX
- body
- HT
- ENGINE
- 4AC
- TRANSMISSION
- ATM
- DESTINATION
- CND
- Model
- COROLLA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 3FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41110A
|
41110A
90116-08235
Bolt, No.1 (For Rear Differential Carrier Set)
[08.1979 - 07.1983] AE71,TE72 S=12 & 15,L=34,L=34,S=15&S=12 |
90116-08235 |
— | ||
| replacement | |||||
|
41110A
|
41110A
90116-08418 Bolt, No.1 (For Rear Differential Carrier Set)[08.1979 - 07.1983] AE71,TE72 S=12 & 15,L=34,L=34,S=15&S=12 |
90116-08418 |
US $1.44 |
||
|
41110A
|
41110A
90116-08236
Bolt, No.1 (For Rear Differential Carrier Set)
[08.1979 - 07.1983] AE71,TE72 S=12 & 15,L=78,L=78,S=15&S=12 |
90116-08236 |
— | ||
| replacement | |||||
|
41110A
|
41110A
90116-08419 Bolt, No.1 (For Rear Differential Carrier Set)[08.1979 - 07.1983] AE71,TE72 S=12 & 15,L=78,L=78,S=15&S=12 |
90116-08419 |
US $1.92 |
||
|
42110
|
42110
42110-12090
Housing Assy, Rear Axle
[08.1982 - 07.1983] AE71..(CP,HT,LB,SED)..CND; AE71..(LB,SED)..USA |
42110-12090 |
— | ||
|
42110A
|
42110A
90341-18049 Plug(For Oil Heater Houl)[08.1979 - 07.1983] AE71,TE72 |
90341-18049 |
from US $4.16 |
||
|
42110B
|
42110B
12157-10010 Gasket (For Drain Plug)[08.1979 - 07.1983] AE71,TE72 |
12157-10010 |
from US $0.96 |
||
|
42110C
|
42110C
90930-03031 Plug, Breather(For Parking Cover)[08.1979 - 07.1983] AE71,TE72 |
90930-03031 |
from US $5.92 |
||
|
42110D
|
42110D
12157-10010 Gasket (For Drain Plug)[08.1979 - 07.1983] AE71,TE72 |
12157-10010 |
from US $0.96 |
||
|
42110E
|
42110E
90341-18057 Drain Plug (with Magnet)[08.1979 - 07.1983] AE71,TE72 |
90341-18057 |
from US $5.60 |
||
|
42110K
|
42110K
04412-22010
Gasket Kit, Rear Differential Carrier
[08.1979 - 07.1983] AE71,TE72..CP,HT,LB,SED |
04412-22010 |
— | ||
|
42139
|
42139
42108-12020 Deflector, Rear Axle Housing OilREAR AXLE HOUSING OIL [08.1979 - 07.1983] AE71,TE72 |
42108-12020 |
US $19.07 |
||
|
42181
|
42181
42181-20010
Gasket, Rear Differential Carrier
[08.1979 - 07.1983] AE71,TE72 |
42181-20010 |
— | ||
