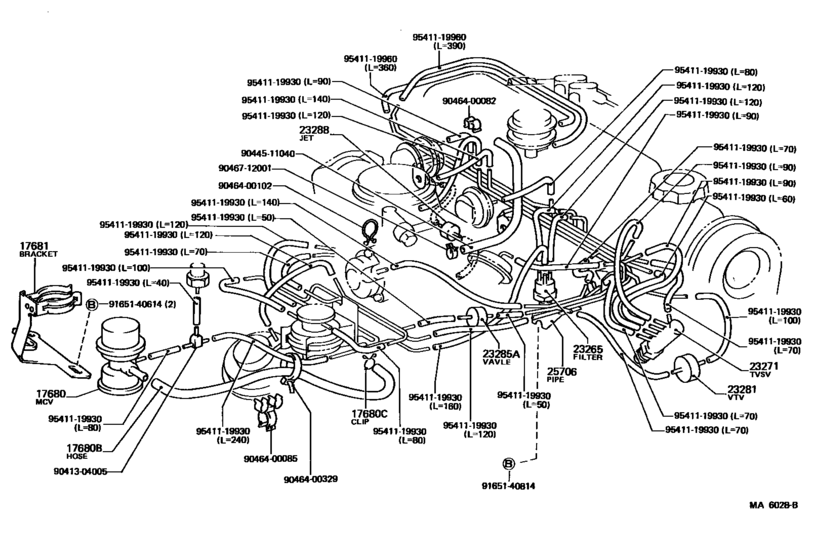

Vacuum Piping ([08.1982 - ] (8208- )4AC..CND) Diagram Toyota COROLLA
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- AE71
- grade
- DX
- body
- HT
- ENGINE
- 4AC
- TRANSMISSION
- ATM
- DESTINATION
- CND
- Model
- COROLLA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 3FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17680
|
17680
17680-15050 Valve Assy, Mixture ControlMIXTURE CONTROL [08.1982 - 07.1983] 4AC..AE71..CND |
17680-15050 |
US $198.02 |
||
|
17680B
|
17680B
90910-05145
Hose(For Mixture Control Valve)
[08.1982 - 07.1983] 4AC..AE71..CND |
90910-05145 |
— | ||
|
17680C
|
17680C
96132-30400
Clip Or Clamp(For Ventilation Hose)
[08.1982 - 07.1983] 4AC..AE71..CND |
96132-30400 |
— | ||
| replacement | |||||
|
17680C
|
17680C
96132-51000 Clip Or Clamp(For Ventilation Hose)[08.1982 - 07.1983] 4AC..AE71..CND |
96132-51000 |
from US $1.58 |
||
|
17681
|
17681
17681-16010
Bracket, Mixture Control Valve
[08.1982 - 07.1983] 4AC..AE71..CND |
17681-16010 |
— | ||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[08.1982 - 07.1983] 4AC..AE71..CND |
90917-11027 |
from US $23.71 |
||
|
23271
|
23271
90925-02076
Valve, Thermostatic Vacuum Switching, No.1
[08.1982 - 07.1983] 4AC..AE71 |
90925-02076 |
— | ||
|
23281
|
23281
90925-01014
Valve, Vacuum Transmitting, No.1
[08.1982 - 07.1983] 4AC..AE71 |
90925-01014 |
— | ||
|
23285A
|
23285A
90917-10049 Valve, Check, No.1[08.1982 - 07.1983] 4AC..AE71 |
90917-10049 |
from US $6.01 |
||
|
23288
|
23288
90925-04003
Jet, No.1
[08.1982 - 07.1983] 4AC..AE71 |
90925-04003 |
— | ||
|
25706
|
25706
25706-15140 Pipe Sub-Assy, Vacuum Transmitting, No.1VACUUM TRANSMITTING, NO.1 [08.1982 - 07.1983] 4AC..AE71..CND |
25706-15140 |
US $110.66 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
from US $3.04 |
||
|
9044511040
|
9044511040
90445-11040
Hose, No.1(For Idle-Up)
|
90445-11040 |
— | ||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
from US $1.60 |
||
|
9046400085
|
9046400085
90464-00085 New Genuine Part |
90464-00085 |
US $2.97 |
||
|
9046400102
|
9046400102
90464-00102 Clamp, No.3(For Luggage Door Lock Control Cable) |
90464-00102 |
US $2.33 |
||
|
9046400329
|
9046400329
90464-00329 Clamp (For Fuel Lid Lock Control Cable) |
90464-00329 |
US $2.62 |
||
| replacement | |||||
|
9046400329
|
9046400329
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.62 |
||
|
9046712001
|
9046712001
90467-12001 Clip(For Carburetor Fuel Hose) |
90467-12001 |
US $2.18 |
||
| replacement | |||||
|
9046712001
|
9046712001
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.68 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.25 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9541119930
|
9541119930
95411-19930
Hose(For Carburetor To Manifold)
|
95411-19930 |
— | ||
| replacement | |||||
|
9541119930
|
9541119930
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541119960
|
9541119960
95411-19960
Hose, Vacuum, No.2 (For Front Drive Shift)
|
95411-19960 |
— | ||
| replacement | |||||
|
9541119960
|
9541119960
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
