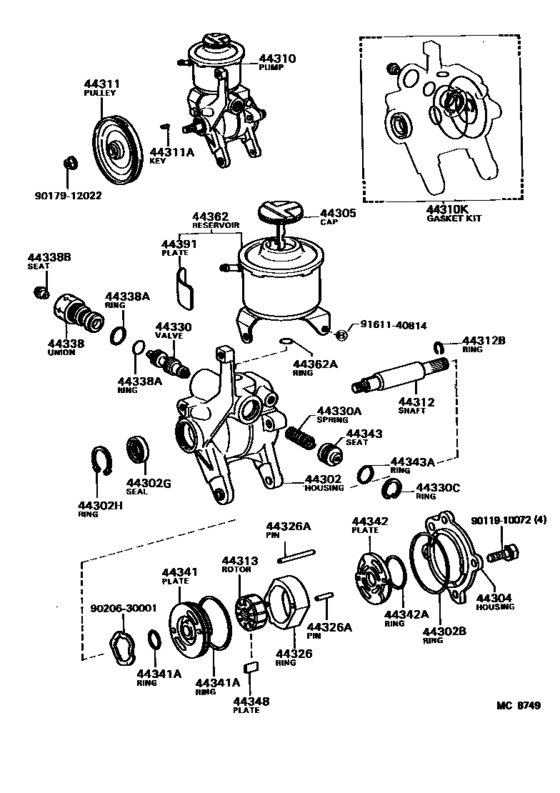

Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )DX) Diagram Toyota COROLLA
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- AE71
- grade
- DX
- body
- HT
- ENGINE
- 4AC
- TRANSMISSION
- ATM
- DESTINATION
- CND
- Model
- COROLLA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 3FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44302
|
44302
44302-12030
Housing Sub-Assy, Vane Pump, Front
[08.1982 - 01.1983] AE71..DX |
44302-12030 |
— | ||
| replacements | |||||
|
44302
|
44302
90105-10075 Bolt(For Alternator)[08.1982 - 01.1983] AE71..DX |
90105-10075 |
from US $1.56 |
||
|
44302
|
44302
44302-12031
Housing Sub-Assy, Vane Pump, Front
[08.1982 - 01.1983] AE71..DX |
44302-12031 |
— | ||
|
44302
|
44302
44302-12031
Housing Sub-Assy, Vane Pump, Front
[01.1983 - 07.1983] AE71..DX |
44302-12031 |
— | ||
|
44302B
|
44302B
90301-63002 Ring, O, No.1(For Vane Pump Housing)[08.1982 - 07.1983] AE71..DX |
90301-63002 |
US $4.95 |
||
|
44302G
|
44302G
90311-18003 Seal, Oil, No.2(For Vane Pump Housing)[08.1982 - 06.1983] AE71..DX |
90311-18003 |
US $7.86 |
||
| replacement | |||||
|
44302G
|
44302G
90311-18008 Seal, Oil, No.2(For Vane Pump Housing)[08.1982 - 06.1983] AE71..DX |
90311-18008 |
US $8.64 |
||
|
44302G
|
44302G
90311-18008 Seal, Oil, No.2(For Vane Pump Housing)[06.1983 - 07.1983] AE71..DX |
90311-18008 |
US $8.64 |
||
|
44302H
|
44302H
90521-32001 Ring, Snap, No.1(For Vane Pump Housing)[08.1982 - 07.1983] AE71..DX |
90521-32001 |
US $7.28 |
||
|
44304
|
44304
44324-12020 Housing Sub-Assy, Vane Pump, Rear[08.1982 - 07.1983] AE71..DX |
44324-12020 |
US $15.29 |
||
| replacement | |||||
|
44304
|
44304
44324-16010 Housing Sub-Assy, Vane Pump, Rear[08.1982 - 07.1983] AE71..DX |
44324-16010 |
US $14.56 |
||
|
44305
|
44305
44305-30020
Cap Sub-Assy, Vane Pump Oil Reservoir
[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F |
44305-30020 |
— | ||
| replacement | |||||
|
44305
|
44305
44305-22061 Cap Sub-Assy, Vane Pump Oil Reservoir[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F |
44305-22061 |
from US $18.85 |
||
|
44310
|
44310
44320-12040 Pump Assy, Vane[08.1982 - 01.1983] AE71..DX |
44320-12040 |
US $1,218.67 |
||
| replacements | |||||
|
44310
|
44310
44320-12042
Pump Assy, Vane
[08.1982 - 01.1983] AE71..DX |
44320-12042 |
— | ||
|
44310
|
44310
90105-10075 Bolt(For Alternator)[08.1982 - 01.1983] AE71..DX |
90105-10075 |
from US $1.56 |
||
|
44310
|
44310
44320-12041 Pump Assy, Vane[01.1983 - 06.1983] AE71..DX |
44320-12041 |
US $1,340.98 |
||
| replacement | |||||
|
44310
|
44310
44320-12042
Pump Assy, Vane
[01.1983 - 06.1983] AE71..DX |
44320-12042 |
— | ||
|
44310
|
44310
44320-12042
Pump Assy, Vane
[06.1983 - 07.1983] AE71..DX |
44320-12042 |
— | ||
|
44310K
|
44310K
04446-16010 Gasket Kit, Power Steering Pump[08.1982 - 07.1983] AE71..DX |
04446-16010 |
US $75.71 |
||
| replacement | |||||
|
44310K
|
44310K
04446-16011
Gasket Kit, Power Steering Pump
[08.1982 - 07.1983] AE71..DX |
04446-16011 |
— | ||
|
44311
|
44311
44311-12020
Pulley, Vane Pump
[08.1982 - 07.1983] AE71..DX |
44311-12020 |
— | ||
|
44311A
|
44311A
90280-05008 Key, Woodruff(For Distributor Drive Gear)[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F |
90280-05008 |
US $3.52 |
||
|
44312
|
44312
44312-12020 Shaft, Vane Pump[08.1982 - 07.1983] AE71..DX |
44312-12020 |
US $39.60 |
||
|
44312B
|
44312B
90520-10003 Ring, Snap, No.1(For Vane Pump Shaft)[08.1982 - 07.1983] AE71..DX |
90520-10003 |
US $1.22 |
||
|
44313
|
44313
44313-12010
Rotor, Vane Pump
[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F NO MARK |
44313-12010 |
— | ||
| replacement | |||||
|
44313
|
44313
44313-22040 Rotor, Vane Pump[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F NO MARK |
44313-22040 |
US $108.33 |
||
|
44313
|
44313
44313-12020
Rotor, Vane Pump
[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F MARK 1,MARK 1 |
44313-12020 |
— | ||
| replacement | |||||
|
44313
|
44313
44313-22050 Rotor, Vane Pump[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F MARK 1,MARK 1 |
44313-22050 |
US $101.34 |
||
|
44313
|
44313
44313-12030 Rotor, Vane Pump[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F MARK 2,MARK 2 |
44313-12030 |
US $106.29 |
||
| replacement | |||||
|
44313
|
44313
44313-22060 Rotor, Vane Pump[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F MARK 2,MARK 2 |
44313-22060 |
US $103.38 |
||
|
44313
|
44313
44313-12040 Rotor, Vane Pump[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F MARK 3,MARK 3 |
44313-12040 |
US $106.29 |
||
| replacement | |||||
|
44313
|
44313
44313-22070 Rotor, Vane Pump[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F MARK 3,MARK 3 |
44313-22070 |
US $103.38 |
||
|
44313
|
44313
44313-12050 Rotor, Vane Pump[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F MARK 4,MARK 4 |
44313-12050 |
US $106.29 |
||
| replacement | |||||
|
44313
|
44313
44313-22080 Rotor, Vane Pump[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F MARK 4,MARK 4 |
44313-22080 |
US $103.38 |
||
|
44326
|
44326
44325-12060 Ring, Cam(For Vane Pump)[08.1982 - 07.1983] AE71..DX NO MARK |
44325-12060 |
US $125.22 |
||
|
44326
|
44326
44325-12070 Ring, Cam(For Vane Pump)[08.1982 - 07.1983] AE71..DX MARK 1,MARK 1 |
44325-12070 |
US $125.22 |
||
|
44326
|
44326
44325-12080 Ring, Cam(For Vane Pump)[08.1982 - 07.1983] AE71..DX MARK 2,MARK 2 |
44325-12080 |
US $125.22 |
||
|
44326
|
44326
44325-12090 Ring, Cam(For Vane Pump)[08.1982 - 07.1983] AE71..DX MARK 3,MARK 3 |
44325-12090 |
US $125.22 |
||
|
44326
|
44326
44325-12100 Ring, Cam(For Vane Pump)[08.1982 - 07.1983] AE71..DX MARK 4,MARK 4 |
44325-12100 |
US $125.22 |
||
|
44326A
|
44326A
90250-05008 Pin, Straight(For Vane Pump Cam Ring)[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F L=25,OD=5.0,L=25 |
90250-05008 |
US $3.20 |
||
|
44326A
|
44326A
90250-05017 Pin, Straight(For Vane Pump Cam Ring)[08.1982 - 07.1983] AE71..DX L=43.5,OD=5.0,L=43.5 |
90250-05017 |
US $4.66 |
||
|
44330
|
44330
44330-12130
Valve Assy, Flow Control
[07.1982 - 07.1983] AE71,TE72..3FC,4FC,5F MARK A,MARK A |
44330-12130 |
— | ||
| replacement | |||||
|
44330
|
44330
44330-32670
Valve Assy, Flow Control
[07.1982 - 07.1983] AE71,TE72..3FC,4FC,5F MARK A,MARK A |
44330-32670 |
— | ||
|
44330
|
44330
44330-12140 Valve Assy, Flow Control[07.1982 - 07.1983] AE71,TE72..3FC,4FC,5F MARK B,MARK B |
44330-12140 |
US $109.20 |
||
| replacement | |||||
|
44330
|
44330
44330-32680 Valve Assy, Flow Control[07.1982 - 07.1983] AE71,TE72..3FC,4FC,5F MARK B,MARK B |
44330-32680 |
US $115.02 |
||
|
44330
|
44330
44330-12150 Valve Assy, Flow Control[07.1982 - 07.1983] AE71,TE72..3FC,4FC,5F MARK C,MARK C |
44330-12150 |
US $109.20 |
||
| replacement | |||||
|
44330
|
44330
44330-32690 Valve Assy, Flow Control[07.1982 - 07.1983] AE71,TE72..3FC,4FC,5F MARK C,MARK C |
44330-32690 |
US $115.02 |
||
|
44330
|
44330
44330-12160 Valve Assy, Flow Control[07.1982 - 07.1983] AE71,TE72..3FC,4FC,5F MARK D,MARK D |
44330-12160 |
US $109.20 |
||
| replacement | |||||
|
44330
|
44330
44330-32700 Valve Assy, Flow Control[07.1982 - 07.1983] AE71,TE72..3FC,4FC,5F MARK D,MARK D |
44330-32700 |
US $115.02 |
||
|
44330
|
44330
44330-12170 Valve Assy, Flow Control[07.1982 - 07.1983] AE71,TE72..3FC,4FC,5F MARK E,MARK E |
44330-12170 |
US $109.20 |
||
| replacement | |||||
|
44330
|
44330
44330-32710 Valve Assy, Flow Control[07.1982 - 07.1983] AE71,TE72..3FC,4FC,5F MARK E,MARK E |
44330-32710 |
US $115.02 |
||
|
44330
|
44330
44330-12180 Valve Assy, Flow Control[07.1982 - 07.1983] AE71,TE72..3FC,4FC,5F MARK F,MARK F |
44330-12180 |
US $109.20 |
||
| replacement | |||||
|
44330
|
44330
44330-32720 Valve Assy, Flow Control[07.1982 - 07.1983] AE71,TE72..3FC,4FC,5F MARK F,MARK F |
44330-32720 |
US $115.02 |
||
|
44330A
|
44330A
90501-12447
Spring, Compression(For Flow Control Valve)
[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F |
90501-12447 |
— | ||
|
44330C
|
44330C
96151-02200 Ring(For Clutch Master Cylinder Reservoir)[08.1982 - 07.1983] AE71..DX |
96151-02200 |
US $4.02 |
||
|
44338
|
44338
44308-12010 Union, Pressure Port[08.1982 - 07.1983] AE71..DX |
44308-12010 |
US $123.76 |
||
| replacement | |||||
|
44338
|
44338
44308-14050
Union, Pressure Port
[08.1982 - 07.1983] AE71..DX |
44308-14050 |
— | ||
|
44338A
|
44338A
90301-22001 Ring, O(For Pressure Port Union)[08.1982 - 07.1983] AE71..DX OD=25.5,ID=22.5,OD=25.5 |
90301-22001 |
US $9.44 |
||
|
44338A
|
44338A
96711-19014 O-Ring[08.1982 - 07.1983] AE71..DX OD=17.0,ID=13.0,OD=17.6 |
96711-19014 |
from US $2.34 |
||
|
44338B
|
44338B
90410-06004 Seat, Union(For Pressure Port Union)[08.1982 - 07.1983] AE71..DX |
90410-06004 |
US $3.64 |
||
|
44341
|
44341
44341-12020 Plate, Vane Pump Side, Front[08.1982 - 07.1983] AE71..DX |
44341-12020 |
US $39.31 |
||
| replacement | |||||
|
44341
|
44341
44341-30030 Plate, Vane Pump Side, Front[08.1982 - 07.1983] AE71..DX |
44341-30030 |
US $39.17 |
||
|
44341A
|
44341A
90301-21001
Ring, O(For Vane Pump Front Side Plate)
[08.1982 - 07.1983] AE71..DX INNER |
90301-21001 |
— | ||
|
44341A
|
44341A
90301-56002
Ring, O(For Vane Pump Front Side Plate)
[08.1982 - 07.1983] AE71..DX OUTER |
90301-56002 |
— | ||
|
44342
|
44342
44342-12010 Plate, Vane Pump Side, Rear[08.1982 - 07.1983] AE71..DX |
44342-12010 |
US $87.36 |
||
|
44342A
|
44342A
90301-37002 Ring, O(For Vane Pump Side Plate Rear)[08.1982 - 07.1983] AE71..DX |
90301-37002 |
US $4.80 |
||
|
44343
|
44343
44343-12030 Seat, Flow Control Spring[08.1982 - 07.1983] AE71..DX |
44343-12030 |
US $16.02 |
||
|
44343A
|
44343A
96711-19019 Ring, O(For Vane Pump Union)[08.1982 - 07.1983] AE71..DX |
96711-19019 |
from US $2.42 |
||
|
44348
|
44348
44345-12010 Plate, Vane Pump[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F L=14.997,L=14.996-14.998 |
44345-12010 |
US $10.56 |
||
|
44348
|
44348
44345-12020 Plate, Vane Pump[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F L=14.995,L=14.994-14.996 |
44345-12020 |
US $6.12 |
||
|
44348
|
44348
44345-12030 Plate, Vane Pump[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F L=14.993,L=14.992-14.994 |
44345-12030 |
US $6.12 |
||
|
44348
|
44348
44345-12040 Plate, Vane Pump[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F L=14.991,L=14.990-14.992 |
44345-12040 |
US $6.12 |
||
|
44348
|
44348
44345-12050 Plate, Vane Pump[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F L=14.989,L=14.988-14.990 |
44345-12050 |
US $6.12 |
||
|
44362
|
44362
44306-12020 Reservoir, Oil(For Vane Pump)[08.1982 - 07.1983] AE71..DX |
44306-12020 |
US $128.13 |
||
|
44362A
|
44362A
96711-19013 Ring, O(For Power Steering Suction Port)[12.1981 - 07.1983] AE71,TE72..3FC,4FC,5F |
96711-19013 |
US $3.84 |
||
|
44391
|
44391
44391-30020
Plate, Power Steering Oil Reservoir Caution
[08.1982 - 07.1983] AE71..DX |
44391-30020 |
— | ||
|
9011910072
|
9011910072
90119-10072 New Genuine Part |
90119-10072 |
US $2.56 |
||
|
9017912022
|
9017912022
90179-12022 Nut(For Vane Pump Pulley) |
90179-12022 |
US $5.92 |
||
|
9020630001
|
9020630001
90206-30001 New Genuine Part |
90206-30001 |
US $4.22 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
