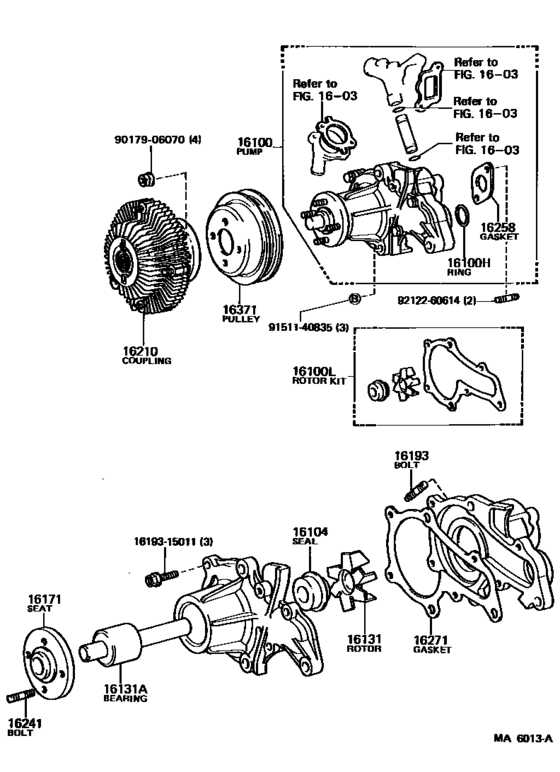

Water Pump ([08.1982 - ] (8208- )) Diagram Toyota COROLLA
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- AE71
- grade
- DX
- body
- HT
- ENGINE
- 4AC
- TRANSMISSION
- ATM
- DESTINATION
- CND
- Model
- COROLLA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 3FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-19036
Pump Assy, Engine Water
[08.1982 - 07.1983] 4AC..AE71 |
16100-19036 |
— | ||
| replacement | |||||
|
16100
|
16100
16100-19037
Pump Assy, Engine Water
[08.1982 - 07.1983] 4AC..AE71 |
16100-19037 |
— | ||
|
16100H
|
16100H
96711-24035
Ring, O(For Water Pump)
[08.1982 - 07.1983] 4AC..AE71 |
96711-24035 |
— | ||
| replacement | |||||
|
16100H
|
16100H
96761-24035 Ring, O(For Water Pump)[08.1982 - 07.1983] 4AC..AE71 |
96761-24035 |
from US $2.79 |
||
|
16100L
|
16100L
04162-15010 Rotor Kit, Water Pump[08.1982 - 07.1983] 4AC..AE71 |
04162-15010 |
US $18.20 |
||
| replacement | |||||
|
16100L
|
16100L
04162-15011 Rotor Kit, Water Pump[08.1982 - 07.1983] 4AC..AE71 |
04162-15011 |
US $18.20 |
||
|
16104
|
16104
16104-41111
Seal Set, Water Pump
[08.1979 - 07.1983] 4AC..AE71; 3TC..TE72..CND |
16104-41111 |
— | ||
| replacement | |||||
|
16104
|
16104
16104-15020 Seal Set, Water Pump[08.1979 - 07.1983] 4AC..AE71; 3TC..TE72..CND |
16104-15020 |
US $22.15 |
||
|
16131
|
16131
16131-15010
Rotor, Water Pump
[08.1982 - 07.1983] 4AC..AE71 |
16131-15010 |
— | ||
|
16131A
|
16131A
90369-30014 Bearing, Water Pump[08.1982 - 07.1983] 4AC..AE71 |
90369-30014 |
US $29.70 |
||
| replacement | |||||
|
16131A
|
16131A
90029-36835 Bearing, Water Pump[08.1982 - 07.1983] 4AC..AE71 |
90029-36835 |
US $37.56 |
||
|
16171
|
16171
16171-15020
Seat, Water Pump Pulley
[08.1982 - 07.1983] 4AC..AE71 |
16171-15020 |
— | ||
|
16193
|
16193
16193-15010 Bolt,stud(For Oil Pump)[08.1982 - 07.1983] 4AC..AE71 |
16193-15010 |
US $5.76 |
||
|
16210
|
16210
16210-18010 Coupling Assy, FluidFLUID [08.1982 - 07.1983] 4AC..AE71 |
16210-18010 |
US $352.35 |
||
|
16241
|
16241
16241-15020 Bolt, Stud(For Water Pump Coupling)[08.1982 - 07.1983] 4AC..AE71 |
16241-15020 |
US $4.66 |
||
|
16258
|
16258
16258-15011 Gasket(For Heater Return)[08.1982 - 07.1983] 4AC..AE71 |
16258-15011 |
US $8 |
||
|
16271
|
16271
16124-15010
Gasket, Water Pump Cover
[08.1982 - 07.1983] 4AC..AE71 |
16124-15010 |
— | ||
| replacement | |||||
|
16271
|
16271
16124-16020 Gasket, Water Pump Cover[08.1982 - 07.1983] 4AC..AE71 |
16124-16020 |
from US $4.10 |
||
|
16371
|
16371
16371-16010 Pulley, FanFAN [08.1982 - 07.1983] 4AC..AE71 |
16371-16010 |
US $40.91 |
||
|
1619315011
|
1619315011
16193-15011 Bolt, Stud(For Water Pump Cover) |
16193-15011 |
US $4.80 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9151140835
|
9151140835
91511-40835
Bolt (for Pawl Stopper Plate)
|
91511-40835 |
— | ||
| replacement | |||||
|
9151140835
|
9151140835
90105-08200 Bolt(For Cylinder Head Set Sub) |
90105-08200 |
from US $1.44 |
||
|
9212260614
|
9212260614
92122-60614 Bolt, Stud(For Oil Strainer) |
92122-60614 |
US $2.56 |
||
