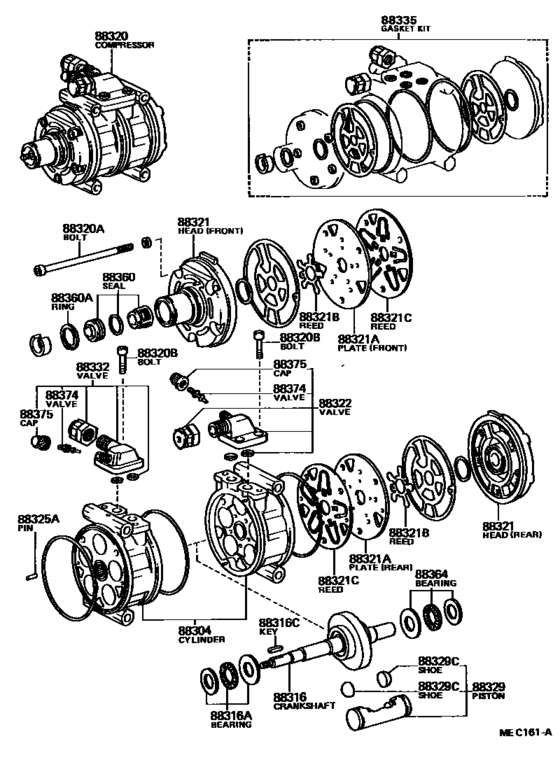

Heating & Air Conditioning - Compressor ([08.1985 - ] (8508- )AE71..GEN) Diagram Toyota COROLLA
- Year
- 1985 - 1987
- Sales region
- General
- Frame
- AE71
- grade
- DX
- body
- WG
- ENGINE
- 4A
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 08.1985
- To
- 07.1987
- Gear Shift Type
- 3FC
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88304
|
88304
88304-14041
Cylinder Sub-Assy, Cooler Compressor
[08.1985 - 07.1987] AE71..GEN |
88304-14041 |
— | ||
|
88316
|
88316
88316-14021
Crankshaft, Cooler Compressor
[08.1985 - 07.1987] AE71..GEN |
88316-14021 |
— | ||
|
88316A
|
88316A
88366-14010
Bearing, Compressor Crankshaft, Front
[08.1985 - 07.1987] AE71..GEN |
88366-14010 |
— | ||
|
88316C
|
88316C
90099-13012
Key, Compressor Crankshaft
[08.1985 - 07.1987] AE71..GEN |
90099-13012 |
— | ||
|
88320
|
88320
88320-12240
Compressor Assy, Cooler
[08.1985 - 07.1987] AE71..GEN |
88320-12240 |
— | ||
|
88320A
|
88320A
90099-04968
Bolt, Through
[08.1985 - 07.1987] AE71..GEN |
90099-04968 |
— | ||
|
88320B
|
88320B
90099-04905
Bolt, Service Valve
[08.1985 - 07.1987] AE71..GEN |
90099-04905 |
— | ||
| replacement | |||||
|
88320B
|
88320B
90099-04924
Bolt, Service Valve
[08.1985 - 07.1987] AE71..GEN |
90099-04924 |
— | ||
|
88321
|
88321
88321-14011
Head, Cooler Compressor Cylinder
[08.1985 - 07.1987] AE71..GEN FR |
88321-14011 |
— | ||
|
88321
|
88321
88322-14011
Head, Cooler Compressor Cylinder
[08.1985 - 07.1987] AE71..GEN RR |
88322-14011 |
— | ||
|
88321A
|
88321A
88341-14010
Plate Sub-Assy, Valve
[08.1985 - 07.1987] AE71..GEN FR |
88341-14010 |
— | ||
|
88321A
|
88321A
88342-14010
Plate Sub-Assy, Valve
[08.1985 - 07.1987] AE71..GEN RR |
88342-14010 |
— | ||
|
88321B
|
88321B
88344-14011
Reed Sub-Assy, Valve
[08.1985 - 07.1987] AE71..GEN |
88344-14011 |
— | ||
|
88321C
|
88321C
88343-14011
Reed, Suction Valve
[08.1985 - 07.1987] AE71..GEN |
88343-14011 |
— | ||
|
88322
|
88322
88371-22140
Valve, Cooler Compressor Suction Service
[08.1985 - 07.1987] AE71..GEN |
88371-22140 |
— | ||
|
88325A
|
88325A
90099-08058
Pin, Cylinder Block
[08.1979 - 07.1987] AE71,KE70,TE71..GEN,SAA |
90099-08058 |
— | ||
|
88329
|
88329
88301-12050
Piston Sub-Assy, Cooler Compressor
[08.1985 - 07.1987] AE71..GEN |
88301-12050 |
— | ||
|
88329C
|
88329C
88313-14010
Shoe, Piston
[08.1985 - 07.1987] AE71..GEN |
88313-14010 |
— | ||
|
88332
|
88332
88372-12160
Valve, Cooler Compressor Discharge Service
[08.1985 - 07.1987] AE71..GEN |
88372-12160 |
— | ||
|
88335
|
88335
04881-10010
Gasket Kit, Cooler Compressor Overhaul
[08.1985 - 07.1987] AE71..GEN |
04881-10010 |
— | ||
| replacement | |||||
|
88335
|
88335
88335-28020
Gasket Kit, Overhaul
[08.1985 - 07.1987] AE71..GEN |
88335-28020 |
— | ||
|
88360
|
88360
88360-40010
Seal Assy, Cooler Compressor Shaft
[08.1985 - 07.1987] AE71..GEN |
88360-40010 |
— | ||
| replacement | |||||
|
88360
|
88360
88360-26020 Seal Assy, Cooler Compressor Shaft[08.1985 - 07.1987] AE71..GEN |
88360-26020 |
US $124.94 |
||
|
88360A
|
88360A
90096-90022
Ring, Compressor Seal Plate Snap
[08.1985 - 07.1987] AE71..GEN |
90096-90022 |
— | ||
|
88364
|
88364
88366-14010
Bearing, Compressor Crankshaft, Front
[08.1985 - 07.1987] AE71..GEN |
88366-14010 |
— | ||
|
88374
|
88374
88374-12020
Valve, Service, No.1
[08.1979 - 07.1987] AE71,KE70,TE71..GEN,SAA |
88374-12020 |
— | ||
| replacement | |||||
|
88374
|
88374
88374-20020 Valve, Service, No.1[08.1979 - 07.1987] AE71,KE70,TE71..GEN,SAA |
88374-20020 |
US $5.12 |
||
|
88375
|
88375
88375-30270
Cap, Cooler Compressor Service Valve
[05.1980 - 07.1987] AE71,KE70,TE71..GEN,SAA |
88375-30270 |
— | ||
