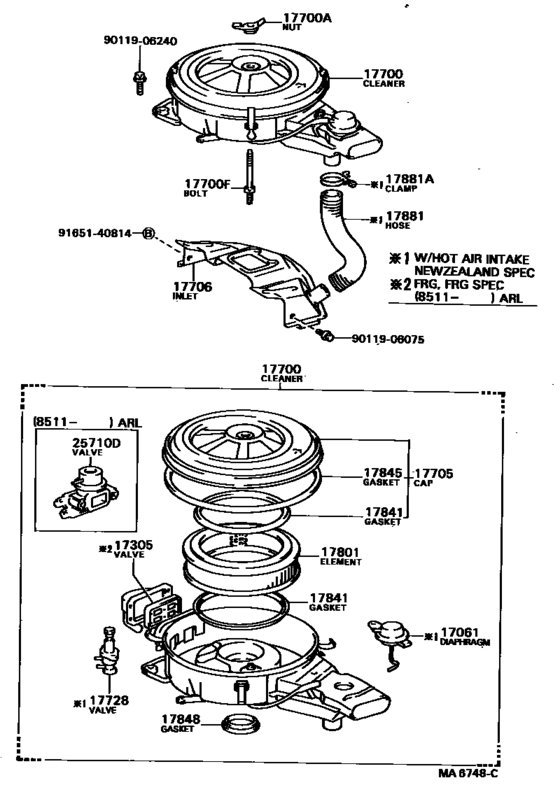

Air Cleaner ([05.1983 - ] (8305- )2AL#,4AL#) Diagram Toyota COROLLA
- Year
- 1983 - 1984
- Sales region
- Europe
- Frame
- AE80
- grade
- DX
- body
- SED
- ENGINE
- 2AL
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1983
- To
- 10.1984
- Gear Shift Type
- 4F
- No.of Doors
- 4DS
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17061
|
17061
17061-15030
Diaphragm Sub-Assy
[05.1983 - 07.1988] 2AL#,4AL#..AE8#..ARL,EUR,GEN W/HOT AIR INTAKE |
17061-15030 |
— | ||
|
17700
|
17700
17700-16050
Cleaner Assy, Air
[05.1983 - 07.1988] 2AL,4AL..AE8#..GEN,SA,SAA |
17700-16050 |
— | ||
|
17700
|
17700
17700-16070
Cleaner Assy, Air
[05.1983 - 04.1987] 2AL,4AL..AE8#..GEN W/HOT AIR INTAKE |
17700-16070 |
— | ||
|
17700A
|
17700A
90175-06003 Nut, Wing(For Air Cleaner)[05.1983 - 07.1988] 2AL#,4AL#..AE8# |
90175-06003 |
from US $1.23 |
||
|
17700F
|
17700F
90116-06039 Bolt, Stud(For Air Cleaner Setting)[05.1983 - 07.1988] 2AL#,4AL#..AE8# |
90116-06039 |
US $3.35 |
||
|
17705
|
17705
17705-16050
Cap Sub-Assy, Air Cleaner
[05.1983 - 07.1988] 2AL#,4AL#..AE8# |
17705-16050 |
— | ||
|
17706
|
17706
17902-16020 Inlet Sub-Assy, Air Cleaner, No.2AIR CLEANER, NO.2 [05.1983 - 07.1988] 2AL,4AL..AE8# |
17902-16020 |
US $158.70 |
||
| replacement | |||||
|
17706
|
17706
17902-16021 Inlet Sub-Assy, Air Cleaner, No.2[05.1983 - 07.1988] 2AL,4AL..AE8# |
17902-16021 |
US $155.79 |
||
|
17728
|
17728
17728-24010
Valve, Thermostatic
[05.1983 - 04.1984] 2AL,4AL..AE8#..GEN W/HOT AIR INTAKE |
17728-24010 |
— | ||
| replacement | |||||
|
17728
|
17728
17728-24011
Valve, Thermostatic
[05.1983 - 04.1984] 2AL,4AL..AE8#..GEN W/HOT AIR INTAKE |
17728-24011 |
— | ||
|
17801
|
17801
17801-15010 Element Sub-Assy, Air Cleaner Filter[05.1983 - 07.1988] 2AL#,4AL#..AE8# |
17801-15010 |
US $22.34 |
||
|
17841
|
17841
17841-15010
Gasket, Filter Element
[05.1983 - 07.1988] 2AL#,4AL#..AE8# |
17841-15010 |
— | ||
|
17845
|
17845
17845-61011
Gasket(For Bottom Air Cleaner Filter Case)
[05.1983 - 07.1988] 2AL#,4AL#..AE8# *G,L=1060 |
17845-61011 |
— | ||
|
17848
|
17848
90430-63001
Gasket, Air Cleaner To Carburetor
[05.1983 - 07.1988] 2AL#,4AL#..AE8# |
90430-63001 |
— | ||
| replacement | |||||
|
17848
|
17848
17848-10020
Gasket, Air Cleaner To Carburetor
[05.1983 - 07.1988] 2AL#,4AL#..AE8# |
17848-10020 |
— | ||
|
17881
|
17881
17881-63010
Hose, Air Cleaner, No.1
[05.1983 - 02.1985] 2AL#,4AL#..AE8#..ARL,EUR,GEN W/HOT AIR INTAKE |
17881-63010 |
— | ||
| replacement | |||||
|
17881
|
17881
17881-74040
Hose, Air Cleaner, No.1
[05.1983 - 02.1985] 2AL#,4AL#..AE8#..ARL,EUR,GEN W/HOT AIR INTAKE |
17881-74040 |
— | ||
|
17881A
|
17881A
96111-10460 Clamp Or Clip, Hose(For Radiator Inlet)[05.1983 - 08.1985] 2AL#,4AL#..AE8#..ARL,EUR,GEN W/HOT AIR INTAKE |
96111-10460 |
from US $2.87 |
||
|
9011906075
|
9011906075
90119-06075
New Genuine Part
|
90119-06075 |
— | ||
|
9011906240
|
9011906240
90119-06240 New Genuine Part |
90119-06240 |
US $1.75 |
||
| replacement | |||||
|
9011906240
|
9011906240
90119-06965 New Genuine Part |
90119-06965 |
US $0.87 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.25 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
