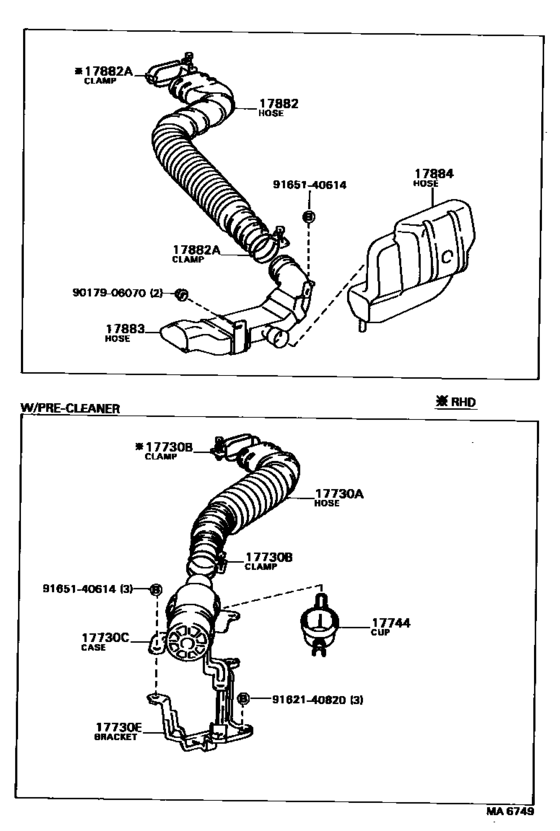

Air Cleaner ([05.1983 - ] (8305- )2AL#,4AL#) Diagram Toyota COROLLA
- Year
- 1983 - 1984
- Sales region
- Europe
- Frame
- AE80
- grade
- DX
- body
- SED
- ENGINE
- 2AL
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1983
- To
- 10.1984
- Gear Shift Type
- 4F
- No.of Doors
- 4DS
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17730A
|
17730A
17881-16050
Hose, Precleaner
[05.1983 - 05.1986] 2EL..EE80..GEN,SAA W/PRE-CLEANER; 2AL,4AL..AE8#..GEN,SAA W/PRE-CLEANER |
17881-16050 |
— | ||
|
17730B
|
17730B
96111-10600 Clamp Or Clip, Hose(For Radiator Outlet No.1)[05.1983 - 07.1987] 2EL..EE80..GEN,SAA PRE-CLEANER SIDE; 2AL,4AL..AE8#..GEN,SAA PRE-CLEANER SIDE |
96111-10600 |
US $2.08 |
||
|
17730C
|
17730C
17736-16020
Case, Precleaner
[05.1983 - 05.1986] 2EL..EE80..GEN,SAA W/PRE-CLEANER; 2AL,4AL..AE8#..GEN,SAA W/PRE-CLEANER |
17736-16020 |
— | ||
|
17730E
|
17730E
17741-16010
Bracket, Precleaner, No.1
[05.1983 - 05.1986] 2EL..EE80..GEN,SAA W/PRE-CLEANER; 2AL,4AL..AE8#..GEN,SAA W/PRE-CLEANER |
17741-16010 |
— | ||
|
17744
|
17744
17744-16010
Cup, Precleaner
[05.1983 - 05.1986] 2EL..EE80..GEN,SAA W/PRE-CLEANER; 2AL,4AL..AE8#..GEN,SAA W/PRE-CLEANER |
17744-16010 |
— | ||
|
17882
|
17882
17881-12060
Hose, Air Cleaner, No.2
[05.1983 - 07.1988] 2AL#,4AL#..AE8# |
17881-12060 |
— | ||
|
17882A
|
17882A
96111-10650 Clamp(For Air Cleaner Inlet, No.1)[05.1983 - 07.1988] 2AL#,4AL#..AE8# BODY SIDE |
96111-10650 |
from US $2.77 |
||
|
17883
|
17883
17882-12020
Hose, Air Cleaner, No.3
[05.1983 - 07.1988] 2AL#,4AL#..AE8# |
17882-12020 |
— | ||
|
17884
|
17884
17883-12020 Hose, Air Cleaner, No.4AIR CLEANER, NO.4 [05.1983 - 07.1988] 2AL#,4AL#..AE8# |
17883-12020 |
US $123.76 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9162140820
|
9162140820
91621-40820 Bolt |
91621-40820 |
US $2.08 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
