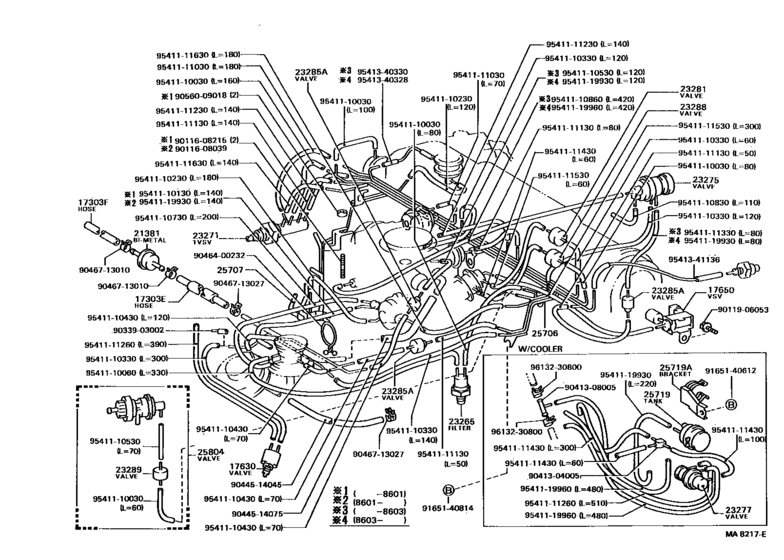

Vacuum Piping ([05.1985 - ] (8505- )3ALU) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- Japan
- Frame
- AE81
- grade
- DX
- ENGINE
- 3ALU
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1983
- To
- 04.1987
- Gear Shift Type
- 4F
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303E
|
17303E
77791-12040 Hose, No.1(For Air Pipe)[05.1983 - 01.1984] 2ALU..AE80;3ALU..AE81..4F..DX;3ALU..AE81..GL,SE,SX,ZX |
77791-12040 |
US $11.07 |
||
| replacement | |||||
|
17303E
|
17303E
77791-12041 Hose, No.1(For Air Pipe)[05.1983 - 01.1984] 2ALU..AE80;3ALU..AE81..4F..DX;3ALU..AE81..GL,SE,SX,ZX |
77791-12041 |
US $11.50 |
||
|
17303E
|
17303E
77791-12041 Hose, No.1(For Air Pipe)[01.1984 - 02.1985] 2ALU..AE80;3ALU..AE81..4F..DX;3ALU..AE81..FXD,FXG,FXL,GL,SE,SX,ZX |
77791-12041 |
US $11.50 |
||
|
17303E
|
17303E
90445-14084 Hose, No.1(For Air Pipe)[02.1985 - 07.1985] 2ALU,3ALU..AE80,81 |
90445-14084 |
US $5.53 |
||
|
17303E
|
17303E
90445-14151 Hose, No.1(For Air Pipe)[07.1985 - 04.1987] 3ALU..AE81 |
90445-14151 |
US $7.43 |
||
|
17303F
|
17303F
77759-12060
Hose, No.2(For Air Pipe)
[02.1985 - 05.1985] 2ALU,3ALU..AE80,81 |
77759-12060 |
— | ||
|
17303F
|
17303F
90445-14097 Hose, No.2(For Air Pipe)[05.1985 - 04.1987] 3ALU..AE81 |
90445-14097 |
US $6.55 |
||
|
17303F
|
17303F
90445-14108 Hose, No.2(For Air Pipe)[05.1983 - 02.1985] 2ALU..AE80;3ALU..AE81..4F..DX;3ALU..AE81..FXD,FXG,FXL,GL,SE,SX,ZX |
90445-14108 |
US $14.27 |
||
|
17630
|
17630
17630-15030 Valve Assy, Air Control[05.1985 - 04.1987] 3ALU..AE81 W/PS |
17630-15030 |
US $189.28 |
||
|
17650
|
17650
89570-12220 Valve Assy, Vacuum SwitchingVACUUM SWITCHING [05.1983 - 10.1983] 2ALU..AE80;3ALU..AE81..4F..DX;3ALU..AE81..GL,SE,SX,ZX |
89570-12220 |
US $131.04 |
||
|
17650
|
17650
89570-12280 Valve Assy, Vacuum Switching[10.1983 - 05.1985] 2ALU,3ALU..AE80,81 |
89570-12280 |
US $100.46 |
||
|
17650
|
17650
89570-12330 Valve Assy, Vacuum Switching[05.1985 - 04.1987] 3ALU..AE81 |
89570-12330 |
US $132.50 |
||
|
21381
|
21381
21381-15320 Bimetal, Thermostatic[05.1983 - 04.1987] 2ALU,3ALU..AE80,81 |
21381-15320 |
US $60.42 |
||
|
23265
|
23265
90917-11023 Filter, Gas, No.1[05.1983 - 05.1985] 2ALU,3ALU..AE80,81 |
90917-11023 |
from US $23.41 |
||
|
23271
|
23271
90925-02076
Valve, Thermostatic Vacuum Switching, No.1
[05.1983 - 04.1987] 2ALU,3ALU..AE80,81 |
90925-02076 |
— | ||
|
23275
|
23275
90925-03145 Valve, Vacuum Control, No.1[05.1983 - 04.1987] 2ALU,3ALU..AE80,81 |
90925-03145 |
US $85.90 |
||
|
23277
|
23277
90925-03153 Valve, Vacuum Control, No.3[05.1985 - 04.1987] 3ALU..AE81 W/COOLER |
90925-03153 |
US $69.01 |
||
|
23281
|
23281
90925-01091 Valve, Vacuum Transmitting, No.1[05.1983 - 05.1985] 2ALU,3ALU..AE80,81..MTM |
90925-01091 |
US $29.35 |
||
|
23285A
|
23285A
90917-10049 Valve, Check, No.1[05.1983 - 04.1987] 2ALU,3ALU..AE80,81 |
90917-10049 |
from US $5.97 |
||
|
23288
|
23288
90925-04013 Jet, No.1[05.1985 - 04.1987] 3ALU..AE81 |
90925-04013 |
US $14.12 |
||
|
23289
|
23289
90925-04012 Jet, No.1[05.1985 - 04.1987] 3ALU..AE81 |
90925-04012 |
US $13.25 |
||
|
25706
|
25706
25706-15150
Pipe Sub-Assy, Vacuum Transmitting, No.1
[05.1983 - 12.1984] 2ALU,3ALU..AE80,81 |
25706-15150 |
— | ||
|
25706
|
25706
25706-15151 Pipe Sub-Assy, Vacuum Transmitting, No.1[12.1984 - 05.1985] 2ALU,3ALU..AE80,81 |
25706-15151 |
US $97.55 |
||
|
25706
|
25706
25706-15200 Pipe Sub-Assy, Vacuum Transmitting, No.1[05.1985 - 04.1987] 3ALU..AE81 |
25706-15200 |
US $115.02 |
||
|
25707
|
25707
25707-15170 Pipe Sub-Assy, Vacuum Transmitting, No.2[12.1984 - 01.1986] 2ALU,3ALU..AE80,81 |
25707-15170 |
US $60.13 |
||
|
25707
|
25707
25707-16010 Pipe Sub-Assy, Vacuum Transmitting, No.2[05.1983 - 12.1984] 2ALU,3ALU..AE80,81 |
25707-16010 |
US $59.84 |
||
|
25719
|
25719
25719-15010 Tank, Vacuum Surge[05.1985 - 04.1987] 3ALU..AE81 W/COOLER |
25719-15010 |
US $21.84 |
||
|
25719A
|
25719A
44756-12020
Bracket, Vacuum Tank Clamp
[05.1985 - 04.1987] 3ALU..AE81 W/COOLER |
44756-12020 |
— | ||
|
25804
|
25804
25804-12010 Valve Set, Vacuum Control[05.1985 - 04.1987] 3ALU..AE81 |
25804-12010 |
US $126.67 |
||
|
9011608039
|
9011608039
90116-08039 Bolt(For Manual Transmission Oil Pan Setting) |
90116-08039 |
US $3.67 |
||
|
9011608215
|
9011608215
90116-08215 New Genuine Part |
90116-08215 |
US $2.04 |
||
|
9011906053
|
9011906053
90119-06053 New Genuine Part |
90119-06053 |
US $0.96 |
||
|
9033903002
|
9033903002
90339-03002 PLUG |
90339-03002 |
from US $2.88 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
from US $3.04 |
||
|
9041308005
|
9041308005
90413-08005
Way, 3
|
90413-08005 |
— | ||
|
9044514045
|
9044514045
90445-14045 Hose, No.3(For Air Injection System) |
90445-14045 |
US $8.15 |
||
|
9044514075
|
9044514075
90445-14075 Hose, No.1(For Air Pipe) |
90445-14075 |
US $5.39 |
||
|
9046400232
|
9046400232
90464-00232 New Genuine Part |
90464-00232 |
US $0.52 |
||
|
9046713010
|
9046713010
90467-13010 Clip(For Ventilation Hose No.2) |
90467-13010 |
US $2.48 |
||
| replacement | |||||
|
9046713010
|
9046713010
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.50 |
||
|
9046713027
|
9046713027
90467-13027 Clamp Or Clip(For Water By-Pass Hose No.2) |
90467-13027 |
US $3.20 |
||
| replacement | |||||
|
9046713027
|
9046713027
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.50 |
||
|
9056009018
|
9056009018
90560-09018 New Genuine Part |
90560-09018 |
US $3.20 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.25 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9541110030
|
9541110030
95411-10030
Hose (For Idle Up Device)
|
95411-10030 |
— | ||
| replacement | |||||
|
9541110030
|
9541110030
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110060
|
9541110060
95411-10060 Hose, Vacuum |
95411-10060 |
US $12.23 |
||
| replacement | |||||
|
9541110060
|
9541110060
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9541110130
|
9541110130
95411-10130
Pipe Or Hose
|
95411-10130 |
— | ||
| replacement | |||||
|
9541110130
|
9541110130
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110230
|
9541110230
95411-10230 Hose, Vacuum, No.2 (For Front Drive Shift) |
95411-10230 |
US $6.70 |
||
| replacement | |||||
|
9541110230
|
9541110230
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110330
|
9541110330
95411-10330 Hose, Vacuum, No.1 (For Front Drive Shift) |
95411-10330 |
US $6.70 |
||
| replacement | |||||
|
9541110330
|
9541110330
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110430
|
9541110430
95411-10430 Hose (For Idle Up Device) |
95411-10430 |
US $6.84 |
||
| replacement | |||||
|
9541110430
|
9541110430
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110530
|
9541110530
95411-10530 Hose, No.1(For Opener) |
95411-10530 |
US $6.41 |
||
| replacement | |||||
|
9541110530
|
9541110530
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110730
|
9541110730
95411-10730 Hose, Vacuum, No.7 (For Heater Or Air Conditioner) |
95411-10730 |
US $6.70 |
||
| replacement | |||||
|
9541110730
|
9541110730
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110830
|
9541110830
95411-10830 Hose, Cruise Control Vacuum |
95411-10830 |
US $6.70 |
||
| replacement | |||||
|
9541110830
|
9541110830
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110860
|
9541110860
95411-10860 Hose, Vacuum (For Idle Up Device), No.1NO.1 |
95411-10860 |
US $11.65 |
||
| replacement | |||||
|
9541110860
|
9541110860
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9541111030
|
9541111030
95411-11030 Hose (For Idle Up Device) |
95411-11030 |
US $6.26 |
||
| replacement | |||||
|
9541111030
|
9541111030
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541111130
|
9541111130
95411-11130 Hose, Air |
95411-11130 |
US $8.01 |
||
| replacement | |||||
|
9541111130
|
9541111130
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541111230
|
9541111230
95411-11230 Hose, Vacuum (For Idle Up Device), No.1 |
95411-11230 |
US $6.84 |
||
| replacement | |||||
|
9541111230
|
9541111230
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541111260
|
9541111260
95411-11260 Hose, Vacuum (For Idle Up Device), No.1 |
95411-11260 |
US $11.50 |
||
| replacement | |||||
|
9541111260
|
9541111260
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9541111330
|
9541111330
95411-11330 Hose, Air |
95411-11330 |
US $6.26 |
||
| replacement | |||||
|
9541111330
|
9541111330
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541111430
|
9541111430
95411-11430 Hose, Vacuum (For Idle Up Device), No.1 |
95411-11430 |
US $6.26 |
||
| replacement | |||||
|
9541111430
|
9541111430
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541111530
|
9541111530
95411-11530 Hose, Air |
95411-11530 |
US $8.01 |
||
| replacement | |||||
|
9541111530
|
9541111530
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541111630
|
9541111630
95411-11630 Hose, Vacuum (For Idle Up Device), No.1 |
95411-11630 |
US $6.84 |
||
| replacement | |||||
|
9541111630
|
9541111630
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541119930
|
9541119930
95411-19930
Hose(For Carburetor To Manifold)
|
95411-19930 |
— | ||
| replacement | |||||
|
9541119930
|
9541119930
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541119960
|
9541119960
95411-19960
Hose, Vacuum, No.2 (For Front Drive Shift)
|
95411-19960 |
— | ||
| replacement | |||||
|
9541119960
|
9541119960
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9541340328
|
9541340328
95413-40328 New Genuine Part |
95413-40328 |
US $4.95 |
||
|
9541340330
|
9541340330
95413-40330 New Genuine Part |
95413-40330 |
US $6.99 |
||
|
9541341136
|
9541341136
95413-41136 New Genuine Part |
95413-41136 |
US $3.35 |
||
|
9613230800
|
9613230800
96132-30800
Clip, No.3(For Idle-Up Hose)
|
96132-30800 |
— | ||
| replacement | |||||
|
9613230800
|
9613230800
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.50 |
||
