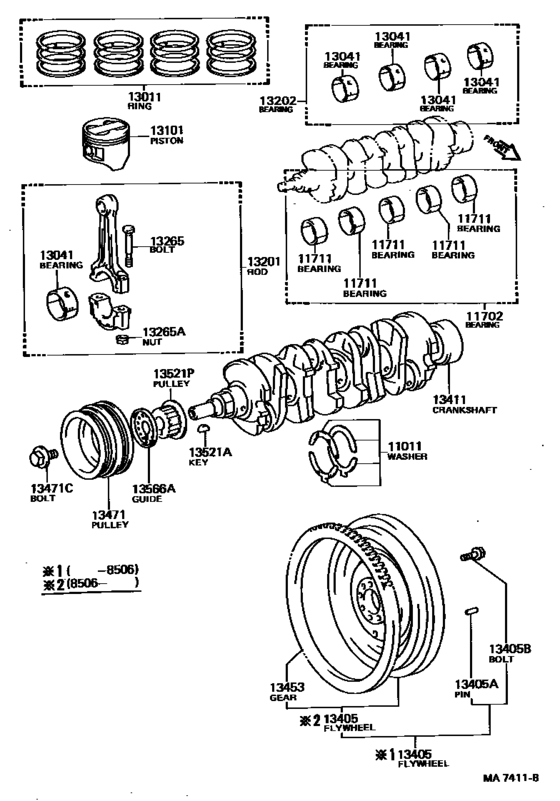

Crankshaft & Piston ([10.1984 - ] (8410- )4AGELU) Diagram Toyota COROLLA
- Year
- 1984 - 1987
- Sales region
- Japan
- Frame
- AE82
- grade
- GT
- ENGINE
- 4AGELU
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 10.1984
- To
- 04.1987
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-15010
Washer Set, Crankshaft Thrust
[05.1983 - 04.1987] 2ALU,3ALU,4A#..AE8# ＳＴＤ |
11011-15010 |
— | ||
| replacement | |||||
|
11011
|
11011
11011-15021 Washer Set, Crankshaft Thrust[05.1983 - 04.1987] 2ALU,3ALU,4A#..AE8# ＳＴＤ |
11011-15021 |
from US $31.46 |
||
|
11702
|
11702
11704-15050 Bearing Set, Crankshaft[05.1983 - 04.1987] 2ALU,3ALU,4A#..AE8# Ｕ／Ｓ ０．２５,U/S 0.25 |
11704-15050 |
US $301.39 |
||
| replacement | |||||
|
11702
|
11702
11704-16010 Bearing Set, Crankshaft[05.1983 - 04.1987] 2ALU,3ALU,4A#..AE8# Ｕ／Ｓ ０．２５,U/S 0.25 |
11704-16010 |
from US $117.74 |
||
|
11711
|
11711
11701-15050-01 Bearing, Crankshaft[07.1984 - 04.1987] 2ALU,3ALU,4A#..AE8# MARK"1",MARK 1 |
11701-15050-01 |
US $46.45 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-01 Bearing, Crankshaft[07.1984 - 04.1987] 2ALU,3ALU,4A#..AE8# MARK"1",MARK 1 |
11701-16010-01 |
from US $20.28 |
||
|
11711
|
11711
11701-15050-02
Bearing, Crankshaft
[07.1984 - 04.1987] 2ALU,3ALU,4A#..AE8# MARK"2",MARK 2 |
11701-15050-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-16010-02 Bearing, Crankshaft[07.1984 - 04.1987] 2ALU,3ALU,4A#..AE8# MARK"2",MARK 2 |
11701-16010-02 |
from US $18.29 |
||
|
11711
|
11711
11701-15050-03 Bearing, Crankshaft[07.1984 - 04.1987] 2ALU,3ALU,4A#..AE8# MARK"3",MARK 3 |
11701-15050-03 |
US $46.45 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-03 Bearing, Crankshaft[07.1984 - 04.1987] 2ALU,3ALU,4A#..AE8# MARK"3",MARK 3 |
11701-16010-03 |
from US $20.73 |
||
|
11711
|
11711
11701-15050-04 Bearing, Crankshaft[08.1986 - 04.1987] 3ALU,4A#..AE8# MARK"4",MARK 4 |
11701-15050-04 |
US $46.45 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-04 Bearing, Crankshaft[08.1986 - 04.1987] 3ALU,4A#..AE8# MARK"4",MARK 4 |
11701-16010-04 |
from US $20.28 |
||
|
11711
|
11711
11701-15050-05 Bearing, Crankshaft[08.1986 - 04.1987] 3ALU,4A#..AE8# MARK"5",MARK 5 |
11701-15050-05 |
US $46.45 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-05 Bearing, Crankshaft[08.1986 - 04.1987] 3ALU,4A#..AE8# MARK"5",MARK 5 |
11701-16010-05 |
US $49.62 |
||
|
13011
|
13011
13011-16070
Ring Set, Piston
[10.1984 - 04.1987] 4AGELU..AE82 ＳＴＤ,STD |
13011-16070 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-16170 Ring Set, Piston[10.1984 - 04.1987] 4AGELU..AE82 ＳＴＤ,STD |
13011-16170 |
US $234.72 |
||
|
13011
|
13011
13013-16170
Ring Set, Piston
[10.1984 - 04.1987] 4AGELU..AE82 Ｏ／Ｓ ０．５０,O/S 0.50 |
13013-16170 |
— | ||
|
13041
|
13041
13041-16040-01 Bearing, Connecting Rod[10.1984 - 04.1987] 4AGELU..AE82 MARK"1",MARK 1 |
13041-16040-01 |
US $33.29 |
||
|
13041
|
13041
13041-16040-02 Bearing, Connecting Rod[10.1984 - 04.1987] 4AGELU..AE82 MARK"2",MARK 2 |
13041-16040-02 |
US $33.29 |
||
|
13041
|
13041
13041-16040-03 Bearing, Connecting Rod[10.1984 - 04.1987] 4AGELU..AE82 MARK"3",MARK 3 |
13041-16040-03 |
US $33.29 |
||
|
13101
|
13101
13101-16020
Piston Sub-Assy, W/pin
[10.1984 - 04.1987] 4AGELU..AE82 ＳＴＤ,STD |
13101-16020 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-16020-02
Piston Sub-Assy, W/pin
[10.1984 - 04.1987] 4AGELU..AE82 ＳＴＤ,STD |
13101-16020-02 |
— | ||
|
13201
|
13201
13201-19065 Rod Sub-Assy, Connecting[10.1984 - 04.1987] 4AGELU..AE82 |
13201-19065 |
US $158.70 |
||
| replacement | |||||
|
13201
|
13201
13201-19066 Rod Sub-Assy, Connecting[10.1984 - 04.1987] 4AGELU..AE82 |
13201-19066 |
US $147.06 |
||
|
13202
|
13202
13204-16040 Bearing Set, Connecting Rod[10.1984 - 04.1987] 4AGELU..AE82 Ｕ／Ｓ ０．２５,U/S 0.25 |
13204-16040 |
US $101.92 |
||
|
13265
|
13265
13265-15020 Bolt, Connecting Rod[10.1983 - 04.1987] 2ALU,3ALU,4A#..AE8# |
13265-15020 |
US $6.41 |
||
| replacements | |||||
|
13265
|
13265
13265-16010 Bolt, Connecting Rod[10.1983 - 04.1987] 2ALU,3ALU,4A#..AE8# |
13265-16010 |
US $8 |
||
|
13265
|
13265
90170-09003 Nut, Hexagon(For Connecting Rod Bolt)[10.1983 - 04.1987] 2ALU,3ALU,4A#..AE8# |
90170-09003 |
US $2.88 |
||
|
13265A
|
13265A
90170-09001 Nut, Hexagon(For Connecting Rod Bolt)[10.1983 - 04.1987] 2ALU,3ALU,4A#..AE8# |
90170-09001 |
US $2.72 |
||
|
13411
|
13411
13401-16010
Crankshaft
[10.1984 - 04.1987] 4AGELU..AE82 |
13401-16010 |
— | ||
|
13471
|
13471
13470-16030
Pulley, Crankshaft
[10.1984 - 04.1987] 4AGELU..AE82 |
13470-16030 |
— | ||
|
13471C
|
13471C
90105-12012 Bolt(For Crankshaft Pulley Set)[05.1983 - 01.1986] 2ELU..EE80; 2ALU,3ALU,4A#..AE8# |
90105-12012 |
US $4.89 |
||
|
13471C
|
13471C
90119-12101 Bolt(For Crankshaft Pulley Set)[01.1986 - 08.1986] 3ALU,4A#..AE8# |
90119-12101 |
US $5.53 |
||
|
13471C
|
13471C
90119-12127 Bolt(For Crankshaft Pulley Set)[08.1986 - 04.1987] 3ALU,4A#..AE8# |
90119-12127 |
US $3.84 |
||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[05.1983 - 09.1986] 2ELU..EE80; 2ALU,3ALU,4A#..AE8# |
90280-05010 |
US $4.16 |
||
|
13521A
|
13521A
95161-10519 Key(For Oil Pump Drive Spline)[09.1986 - 04.1987] 2ELU..EE80; 3ALU,4A#..AE8# |
95161-10519 |
from US $1.68 |
||
|
13521P
|
13521P
13521-16010 Pulley, Crankshaft Timing[10.1984 - 04.1987] 4AGELU..AE82 |
13521-16010 |
from US $19.23 |
||
|
13566A
|
13566A
13566-15010 Guide, Timing Belt[05.1983 - 04.1987] 2ALU,3ALU,4A#..AE8# |
13566-15010 |
from US $5.44 |
||
