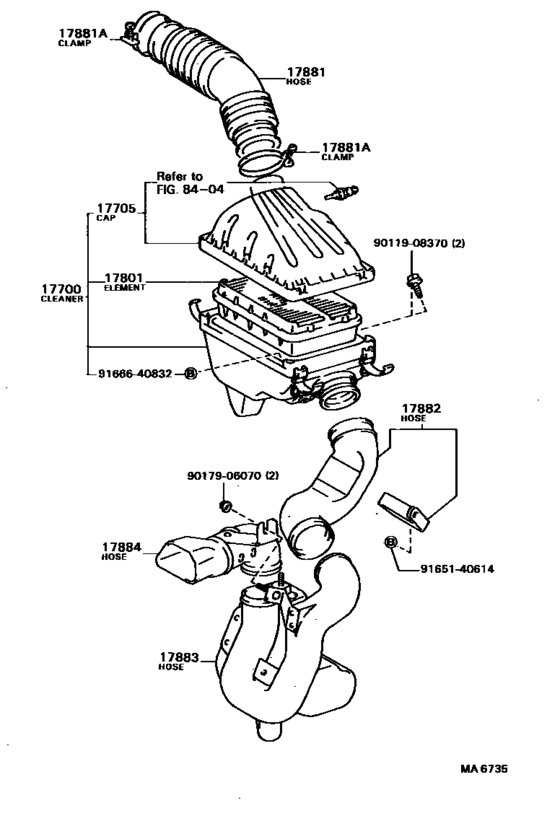

Air Cleaner ([05.1983 - ] (8305- )4AELU) Diagram Toyota COROLLA
- Year
- 1983 - 1985
- Sales region
- Japan
- Frame
- AE82
- grade
- SX
- ENGINE
- 4AELU
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 05.1983
- To
- 05.1985
- Gear Shift Type
- 4FC
- No.of Doors
- 5D3
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-16080 Cleaner Assy, Air[05.1983 - 04.1987] 4AELU..AE82 |
17700-16080 |
US $428.06 |
||
|
17705
|
17705
17705-16010
Cap Sub-Assy, Air Cleaner
[05.1983 - 04.1987] 4AELU..AE82 |
17705-16010 |
— | ||
| replacement | |||||
|
17705
|
17705
17705-74120
Cap Sub-Assy, Air Cleaner
[05.1983 - 04.1987] 4AELU..AE82 |
17705-74120 |
— | ||
|
17801
|
17801
17801-74010 Element Sub-Assy, Air Cleaner Filter[05.1983 - 04.1987] 4A#..AE82 |
17801-74010 |
US $41.35 |
||
| replacement | |||||
|
17801
|
17801
17801-55010 Element Sub-Assy, Air Cleaner Filter[05.1983 - 04.1987] 4A#..AE82 |
17801-55010 |
from US $10.12 |
||
|
17881
|
17881
17881-16010 Hose, Air Cleaner, No.1[05.1983 - 04.1987] 4AELU..AE82 |
17881-16010 |
US $72.36 |
||
|
17881A
|
17881A
96111-10710 Clamp(For Air Cleaner Inlet Duct)[05.1983 - 04.1987] 4AELU..AE82 |
96111-10710 |
from US $2.56 |
||
|
17882
|
17882
17881-12050 Hose, Air Cleaner, No.2[05.1983 - 04.1987] 4AELU..AE82; 1CL..CE80 |
17881-12050 |
US $39.31 |
||
|
17883
|
17883
17880-12030 Hose, Air Cleaner, No.3[05.1983 - 04.1987] 4AELU..AE82; 1CL..CE80 |
17880-12030 |
US $145.60 |
||
|
17884
|
17884
17884-12010 Hose, Air Cleaner, No.4AIR CLEANER, NO.4 [05.1983 - 04.1987] 4AELU..AE82; 1CL..CE80 |
17884-12010 |
US $28.10 |
||
|
9011908370
|
9011908370
90119-08370
New Genuine Part
|
90119-08370 |
— | ||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9166640832
|
9166640832
91666-40832 New Genuine Part |
91666-40832 |
US $2.18 |
||
| replacement | |||||
|
9166640832
|
9166640832
91661-60830 Bolt |
91661-60830 |
from US $1.44 |
||
