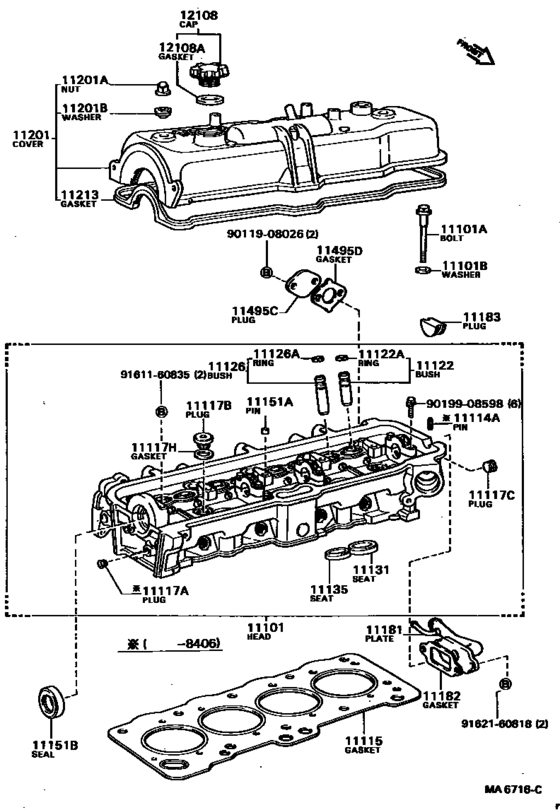

Cylinder Head ([05.1983 - ] (8305- )4AELU) Diagram Toyota COROLLA
- Year
- 1983 - 1985
- Sales region
- Japan
- Frame
- AE82
- grade
- SX
- ENGINE
- 4AELU
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 05.1983
- To
- 05.1985
- Gear Shift Type
- 4FC
- No.of Doors
- 5D3
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-15031
Head Sub-Assy, Cylinder
[05.1983 - 05.1985] 4AELU..AE82 |
11101-15031 |
— | ||
|
11101
|
11101
11101-15070
Head Sub-Assy, Cylinder
[05.1985 - 04.1987] 4AELU..AE82 |
11101-15070 |
— | ||
|
11101A
|
11101A
90109-10025 Bolt(For Cylinder Head Set)[05.1983 - 04.1987] 2ALU,3ALU,4AELU..AE8# *10-1.25PX97.5-22 |
90109-10025 |
from US $4.39 |
||
|
11101B
|
11101B
90201-10344 Washer, Plate(For Cylinder Head Set)[05.1983 - 04.1987] 2ALU,3ALU,4A#..AE8# |
90201-10344 |
US $1.76 |
||
|
11114A
|
11114A
90254-03003
Pin, Straight
[05.1983 - 06.1984] 3ALU..AE81..4F..DX;2ALU,4AELU..AE80,82;3ALU..AE81..GL,SE,SX,ZX |
90254-03003 |
— | ||
|
11115
|
11115
11115-16020 Gasket, Cylinder Head[05.1983 - 05.1985] 4AELU..AE82 |
11115-16020 |
US $113.57 |
||
|
11115
|
11115
11115-16050 Gasket, Cylinder Head[05.1985 - 04.1987] 4AELU..AE82 |
11115-16050 |
US $116.48 |
||
|
11117A
|
11117A
90344-51002 Plug, W/head Taper Screw, No.1[05.1983 - 06.1984] 3ALU..AE81..4F..DX;2ALU,4AELU..AE80,82;3ALU..AE81..GL,SE,SX,ZX |
90344-51002 |
US $3.93 |
||
|
11117B
|
11117B
90341-20002 Plug, W/head Taper Screw, No.1[05.1983 - 04.1987] 2ALU,3ALU,4AELU..AE8# |
90341-20002 |
from US $2.88 |
||
|
11117C
|
11117C
90344-54002
Plug, W/head Taper Screw, No.3
[05.1983 - 04.1987] 2ALU,3ALU,4AELU..AE8# |
90344-54002 |
— | ||
|
11117H
|
11117H
90430-20004 Gasket(For Cylinder Head Screw Plug)[05.1983 - 04.1987] 2ALU,3ALU,4AELU..AE8# |
90430-20004 |
from US $0.99 |
||
|
11122
|
11122
11122-15020 Bush, Intake Valve Guide[05.1983 - 02.1986] 2ALU,3ALU,4AELU..AE8# ＳＴＤ,STD |
11122-15020 |
US $12.23 |
||
|
11122
|
11122
11123-15020 Bush, Intake Valve Guide[05.1983 - 02.1986] 2ALU,3ALU,4AELU..AE8# Ｏ／Ｓ ０．０５,O/S 0.05 |
11123-15020 |
US $12.23 |
||
|
11122A
|
11122A
90520-10001 Ring, Shaft Snap (For Valve Guide Bush)[05.1983 - 02.1986] 2ALU,3ALU,4AELU..AE8# |
90520-10001 |
US $1.75 |
||
|
11126
|
11126
11126-15020 Bush, Intake Valve Guide[05.1983 - 02.1986] 2ALU,3ALU,4AELU..AE8# ＳＴＤ,STD |
11126-15020 |
US $12.58 |
||
|
11126
|
11126
11127-15020 Bush, Intake Valve Guide[05.1983 - 02.1986] 2ALU,3ALU,4AELU..AE8# Ｏ／Ｓ ０．０５,O/S 0.05 |
11127-15020 |
US $11.94 |
||
|
11126A
|
11126A
90520-10001 Ring, Shaft Snap (For Valve Guide Bush)[05.1983 - 02.1986] 2ALU,3ALU,4AELU..AE8# |
90520-10001 |
US $1.75 |
||
|
11131
|
11131
11131-15020 Seat, Intake Valve[05.1983 - 04.1987] 4AELU..AE82 ＳＴＤ,STD |
11131-15020 |
US $13.25 |
||
|
11131
|
11131
11132-15020 Seat, Intake Valve[05.1983 - 04.1987] 4AELU..AE82 Ｏ／Ｓ ０．０３,O/S 0.03 |
11132-15020 |
US $13.40 |
||
|
11135
|
11135
11135-15020 Seat, Exhaust Valve[05.1983 - 04.1987] 2ALU,3ALU,4AELU..AE8# ＳＴＤ,STD |
11135-15020 |
US $34.65 |
||
| replacement | |||||
|
11135
|
11135
11135-15021 Seat, Exhaust Valve[05.1983 - 04.1987] 2ALU,3ALU,4AELU..AE8# ＳＴＤ,STD |
11135-15021 |
US $17.33 |
||
|
11135
|
11135
11136-15020 Seat, Exhaust Valve[05.1983 - 04.1987] 2ALU,3ALU,4AELU..AE8# Ｏ／Ｓ ０．０３,O/S 0.03 |
11136-15020 |
US $19.36 |
||
| replacement | |||||
|
11135
|
11135
11136-15021 Seat, Exhaust Valve[05.1983 - 04.1987] 2ALU,3ALU,4AELU..AE8# Ｏ／Ｓ ０．０３,O/S 0.03 |
11136-15021 |
US $17.33 |
||
|
11151A
|
11151A
90253-11021 Pin, Ring[05.1983 - 04.1987] 2ALU,3ALU,4AELU..AE8# 長さ＝８，外径＝１１ |
90253-11021 |
from US $1.46 |
||
|
11151B
|
11151B
90311-35003 Seal, Oil(For Camshaft Setting)[05.1983 - 08.1983] 3ALU..AE81..4F..DX;2ALU,4AELU..AE80,82;3ALU..AE81..GL,SE,SX,ZX |
90311-35003 |
US $3.79 |
||
| replacement | |||||
|
11151B
|
11151B
90311-35040 Seal, Oil(For Timing Chain Or Belt Cover)[05.1983 - 08.1983] 3ALU..AE81..4F..DX;2ALU,4AELU..AE80,82;3ALU..AE81..GL,SE,SX,ZX |
90311-35040 |
from US $5.60 |
||
|
11151B
|
11151B
90311-35013
Seal, Oil(For Camshaft Setting)
[08.1983 - 04.1987] 2ALU,3ALU,4AELU..AE8# |
90311-35013 |
— | ||
| replacement | |||||
|
11151B
|
11151B
90311-35040 Seal, Oil(For Timing Chain Or Belt Cover)[08.1983 - 04.1987] 2ALU,3ALU,4AELU..AE8# |
90311-35040 |
from US $5.60 |
||
|
11181
|
11181
11181-16020 Plate, Cylinder Head, Rear[05.1983 - 04.1987] 4AELU..AE82 |
11181-16020 |
US $34.51 |
||
|
11182
|
11182
11182-15011
Gasket, Cylinder Head Rear Plate
[05.1983 - 04.1987] 2ALU,3ALU,4AELU..AE8# |
11182-15011 |
— | ||
| replacement | |||||
|
11182
|
11182
11182-15012
Gasket, Cylinder Head Rear Plate
[05.1983 - 04.1987] 2ALU,3ALU,4AELU..AE8# |
11182-15012 |
— | ||
|
11183
|
11183
11183-15010 Plug, Semicircular[05.1983 - 04.1987] 2ALU,3ALU,4AELU..AE8# |
11183-15010 |
US $8.56 |
||
|
11201
|
11201
11210-19025 Cover Sub-Assy, Cylinder Head[05.1983 - 04.1987] 4AELU..AE82 |
11210-19025 |
US $179.09 |
||
|
11201A
|
11201A
90176-08007 Nut, Cap(For Cylinder Head Cover)[05.1983 - 04.1987] 2ALU,3ALU,4AELU..AE8#; 2ELU..EE80 |
90176-08007 |
from US $1.52 |
||
|
11201B
|
11201B
90210-09001
Washer, Seal(For Cylinder Head Cover)
[05.1983 - 04.1987] 2ALU,3ALU,4AELU..AE8#; 2ELU..EE80 |
90210-09001 |
— | ||
| replacement | |||||
|
11201B
|
11201B
90210-09019 Washer, Seal(For Cylinder Head Cover)[05.1983 - 04.1987] 2ALU,3ALU,4AELU..AE8#; 2ELU..EE80 |
90210-09019 |
from US $1.29 |
||
|
11213
|
11213
11213-15020 Gasket, Cylinder Head Cover[05.1983 - 04.1987] 4AELU..AE82 |
11213-15020 |
US $29.88 |
||
|
11495C
|
11495C
11494-16010 Plug, Plate(For Cylinder Head)[05.1983 - 04.1987] 4AELU..AE82 |
11494-16010 |
US $7.86 |
||
|
11495D
|
11495D
11496-16010 Gasket(For Cylinder Head)[05.1983 - 04.1987] 4AELU..AE82 |
11496-16010 |
US $5.39 |
||
|
12108
|
12108
12180-70010
Cap Sub-Assy, Oil Filler
[05.1983 - 03.1986] 1CL..CE80; 2ALU,3ALU,4A#..AE8# |
12180-70010 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-E0010 Cap Sub-Assy, Oil Filler[05.1983 - 03.1986] 1CL..CE80; 2ALU,3ALU,4A#..AE8# |
12180-E0010 |
from US $13.61 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[05.1983 - 04.1987] 1CL..CE80; 2ALU,3ALU,4A#..AE8# |
90430-37140 |
from US $2.02 |
||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
|
9019908598
|
9019908598
90199-08598
New Genuine Part
|
90199-08598 |
— | ||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.44 |
||
|
9162160818
|
9162160818
91621-60818
Bolt(For Automatic Transmission Case Protector)
|
91621-60818 |
— | ||
| replacement | |||||
|
9162160818
|
9162160818
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.11 |
||
