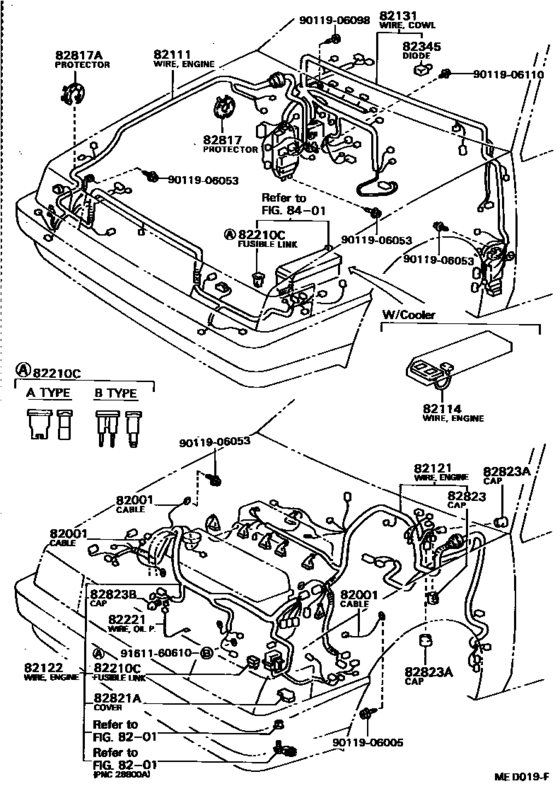

Wiring & Clamp ([05.1983 - ] (8305- )AE82..FXR,SE,SR,SX,ZX) Diagram Toyota COROLLA
- Year
- 1983 - 1985
- Sales region
- Japan
- Frame
- AE82
- grade
- SX
- ENGINE
- 4AELU
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 05.1983
- To
- 05.1985
- Gear Shift Type
- 4FC
- No.of Doors
- 5D3
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82001
|
82001
90980-07206 Cable, Bond, No.1[05.1983 - 04.1987] AE8# L=150,FENDER,RH & LH |
90980-07206 |
US $8.56 |
||
|
82001
|
82001
90980-07228 Cable, Bond, No.1[05.1983 - 05.1984] AE80,82;AE81..4F..DX;AE81..GL,SE,SX,ZX L=170,ENGINE-FENDER,RH |
90980-07228 |
US $7.16 |
||
|
82001
|
82001
90980-07236 Cable, Bond, No.1[05.1984 - 04.1987] AE8#..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX L=170,ENGINE-FENDER,RH |
90980-07236 |
US $5.53 |
||
|
82111
|
82111
82111-12220 Wire, Engine Room Main[05.1983 - 10.1984] AE81,82..5D3 |
82111-12220 |
US $468.83 |
||
| replacement | |||||
|
82111
|
82111
82111-12221
Wire, Engine Room Main
[05.1983 - 10.1984] AE81,82..5D3 |
82111-12221 |
— | ||
|
82111
|
82111
82111-12221
Wire, Engine Room Main
[10.1984 - 05.1985] AE81,82..FXD,FXG,FXL,FXR,SX,ZX |
82111-12221 |
— | ||
|
82114
|
82114
82114-32010
Wire, Engine Room, No.4
[05.1983 - 04.1987] AE8#,CE80,EE80 W/COOLER |
82114-32010 |
— | ||
|
82121
|
82121
82121-12060
Wire, Engine
[05.1983 - 05.1985] AE82..4FC..(FXR,SR,SX,ZX) |
82121-12060 |
— | ||
|
82122
|
82122
82122-12220
Wire, Engine, No.2
[05.1983 - 05.1985] AE82..4FC..(FXR,SR,SX,ZX) |
82122-12220 |
— | ||
|
82131
|
82131
82131-12410 Wire, Cowl[05.1983 - 01.1984] AE82 |
82131-12410 |
US $1,228.86 |
||
| replacement | |||||
|
82131
|
82131
82131-12411
Wire, Cowl
[05.1983 - 01.1984] AE82 |
82131-12411 |
— | ||
|
82131
|
82131
82131-12411
Wire, Cowl
[01.1984 - 10.1984] AE82 |
82131-12411 |
— | ||
|
82131
|
82131
82131-12412
Wire, Cowl
[10.1984 - 05.1985] AE82..FXR,SR,SX,ZX |
82131-12412 |
— | ||
|
82210C
|
82210C
90982-08188 Fusible Link[05.1983 - 04.1987] AE8#,CE80,EE80 ３０Ａ，メス端子,30A,A TYPE |
90982-08188 |
US $11.36 |
||
|
82210C
|
82210C
90982-08203 Fusible Link[05.1983 - 04.1987] AE82,CE80 ８０Ａ，オス端子,80A,B TYPE |
90982-08203 |
from US $7.36 |
||
|
82210C
|
82210C
90982-08223 Fusible Link[05.1983 - 04.1987] AE82 ３０Ａ，オス端子,30A,B TYPE |
90982-08223 |
US $11.36 |
||
|
82221
|
82221
82221-16010 Wire, Oil Pressure Switch[05.1983 - 05.1985] AE8#..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX |
82221-16010 |
US $9.17 |
||
|
82345
|
82345
82345-12020 Diode[05.1985 - 04.1987] CE80;AE8#..FXG,FXR,FXT,GL,GT,SE,ZX 2-POLE CONNECTOR,BROWN |
82345-12020 |
US $15.55 |
||
|
82817
|
82817
82817-14360 Protector, Wiring Harness, No.1[05.1983 - 04.1987] AE8#,CE80,EE80 |
82817-14360 |
US $14.41 |
||
|
82817A
|
82817A
82817-32010
Protector, Wiring Harness, No.1
[05.1983 - 04.1987] AE8#,CE80,EE80 |
82817-32010 |
— | ||
|
82821A
|
82821A
82821-12180 Cover, Connector(For Battery Terminal)[05.1983 - 04.1987] CE80; AE82..FXR,SR,SX,ZX |
82821-12180 |
US $8.30 |
||
|
82823
|
82823
82823-12050 Cap, Terminal, No.1TERMINAL, NO.1 [04.1984 - 04.1987] AE82..FXR,SE,SR,SX,ZX 1-POLE CONNECTOR(PLASTIC) |
82823-12050 |
US $4.80 |
||
|
82823
|
82823
82823-20010 Cap, Terminal, No.1[05.1983 - 04.1984] AE82 1-POLE CONNECTOR(RUBBER) |
82823-20010 |
US $4.08 |
||
|
82823A
|
82823A
82823-14040 Cap, Terminal, No.1[05.1983 - 04.1987] AE82 2-POLE CONNECTOR |
82823-14040 |
US $5.82 |
||
|
82823A
|
82823A
82823-30010 Cap, Terminal, No.1[05.1983 - 04.1987] AE8#,EE80 4-POLE CONNECTOR |
82823-30010 |
US $5.39 |
||
|
82823B
|
82823B
82823-22060 Cap, Terminal, No.1[07.1986 - 04.1987] AE82..FXR,SE,ZX 1-POLE CONNECTOR(RUBBER) |
82823-22060 |
US $14.56 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9011906053
|
9011906053
90119-06053 New Genuine Part |
90119-06053 |
US $0.96 |
||
|
9011906098
|
9011906098
90119-06098 BOLT |
90119-06098 |
US $1.28 |
||
|
9011906110
|
9011906110
90119-06110
New Genuine Part
|
90119-06110 |
— | ||
| replacement | |||||
|
9011906110
|
9011906110
90119-06442 BOLT WWASHER |
90119-06442 |
from US $0.88 |
||
|
9161160610
|
9161160610
91611-60610
Bolt (For Transfer Oil Receiver No.1)
|
91611-60610 |
— | ||
| replacement | |||||
|
9161160610
|
9161160610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
US $1.12 |
||
