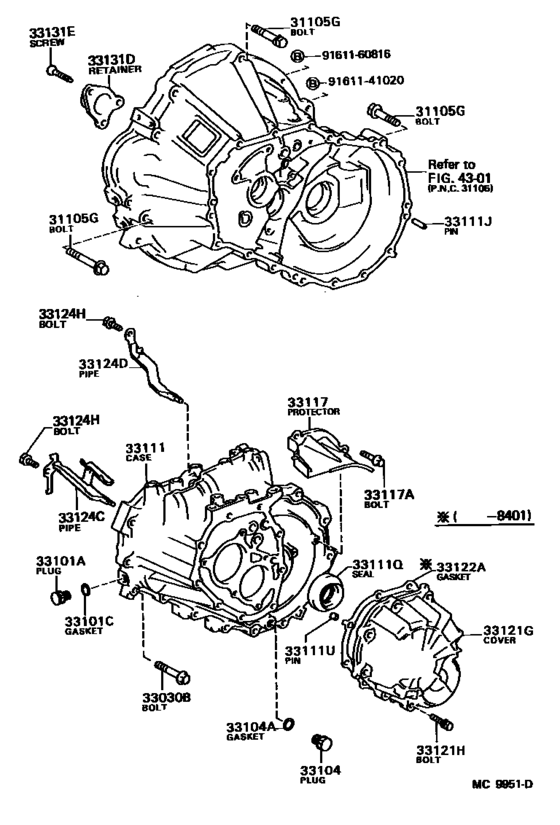

Clutch Housing & Transmission Case (Mtm) ([08.1983 - ] (8308- )AE82..5F) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- DX
- body
- SED
- ENGINE
- 4ALC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1983
- To
- 07.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31105G
|
31105G
90105-10077 Bolt(For Transaxle Case Protector)[08.1983 - 07.1987] AE82,CE80..MTM *10-1.25PX43-26,*10-1.25PX43-26 |
90105-10077 |
from US $4.16 |
||
|
31105G
|
31105G
90119-12042 Bolt(For Transaxle Case & Engine Setting)[08.1983 - 07.1987] AE82..5F *12-1.25PX75-30,*12-1.25PX75-30 |
90119-12042 |
US $4.16 |
||
|
31105G
|
31105G
90119-12168 Bolt(For Transaxle & Engine Setting)[08.1983 - 07.1987] AE82,CE80..MTM *12-1.25PX55-30,*12-1.25PX55-30 |
90119-12168 |
from US $2.05 |
||
|
33030B
|
33030B
90105-08064
Bolt(For Transaxle Case & Transmission Case Setting)
[08.1983 - 07.1987] AE82..5F *8-1.25PX51-28 |
90105-08064 |
— | ||
| replacement | |||||
|
33030B
|
33030B
90105-08353 Bolt(For Head To Camshaft Bearing Cap)[08.1983 - 07.1987] AE82..5F *8-1.25PX51-28 |
90105-08353 |
from US $0.94 |
||
|
33101A
|
33101A
90341-18006 Plug (No magnet)[08.1983 - 07.1987] AE82..5F |
90341-18006 |
from US $2.76 |
||
|
33101C
|
33101C
90430-18007
Gasket(For Water Hole)
[08.1983 - 08.1984] AE82,CE80..MTM |
90430-18007 |
— | ||
| replacement | |||||
|
33101C
|
33101C
90430-18008 Gasket[08.1983 - 08.1984] AE82,CE80..MTM |
90430-18008 |
from US $0.99 |
||
|
33101C
|
33101C
90430-18008 Gasket[08.1984 - 07.1987] AE82,CE80..5F |
90430-18008 |
from US $0.99 |
||
|
33104
|
33104
90341-18006 Plug (No magnet)[08.1983 - 02.1985] AE82..5F |
90341-18006 |
from US $2.76 |
||
|
33104A
|
33104A
90430-18007
Gasket(For Water Hole)
[08.1983 - 08.1984] AE82,CE80..MTM |
90430-18007 |
— | ||
| replacement | |||||
|
33104A
|
33104A
90430-18008 Gasket[08.1983 - 08.1984] AE82,CE80..MTM |
90430-18008 |
from US $0.99 |
||
|
33104A
|
33104A
90430-18008 Gasket[08.1984 - 07.1987] AE82,CE80..5F |
90430-18008 |
from US $0.99 |
||
|
33111
|
33111
33111-12170 Case, Manual Transmission[08.1983 - 08.1986] AE82..5F |
33111-12170 |
US $473.20 |
||
| replacements | |||||
|
33111
|
33111
33111-16071 Case, Manual Transmission[08.1983 - 08.1986] AE82..5F |
33111-16071 |
US $468.83 |
||
|
33111
|
33111
90109-12073 Bolt (For Shift Inter Lock Plate)[08.1983 - 08.1986] AE82..5F |
90109-12073 |
US $3.06 |
||
|
33111
|
33111
90109-18005 Bolt (For Shift Inter Lock Plate)[08.1983 - 08.1986] AE82..5F |
90109-18005 |
US $2.97 |
||
|
33111
|
33111
90430-18008 Gasket[08.1983 - 08.1986] AE82..5F |
90430-18008 |
from US $0.99 |
||
|
33111
|
33111
33111-16040 Case, Manual Transmission[08.1986 - 07.1987] AE82..5F |
33111-16040 |
US $471.74 |
||
| replacements | |||||
|
33111
|
33111
33111-16071 Case, Manual Transmission[08.1986 - 07.1987] AE82..5F |
33111-16071 |
US $468.83 |
||
|
33111
|
33111
90109-12073 Bolt (For Shift Inter Lock Plate)[08.1986 - 07.1987] AE82..5F |
90109-12073 |
US $3.06 |
||
|
33111
|
33111
90109-18005 Bolt (For Shift Inter Lock Plate)[08.1986 - 07.1987] AE82..5F |
90109-18005 |
US $2.97 |
||
|
33111
|
33111
90430-18008 Gasket[08.1986 - 07.1987] AE82..5F |
90430-18008 |
from US $0.99 |
||
|
33111J
|
33111J
90250-08054 Pin, Straight[08.1983 - 07.1987] AE82,CE80..MTM L=23,OD=8 |
90250-08054 |
from US $0.99 |
||
|
33111Q
|
33111Q
90311-34008
Seal, Oil(For Transmission Case)
[08.1983 - 07.1987] AE82..5F |
90311-34008 |
— | ||
| replacement | |||||
|
33111Q
|
33111Q
90311-34042 Oil Seal, Front Drive Shaft, Lh[08.1983 - 07.1987] AE82..5F |
90311-34042 |
from US $7.52 |
||
|
33111U
|
33111U
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)[08.1983 - 07.1987] AE82..5F L=11,OD=11 |
90253-11001 |
US $1.92 |
||
|
33117
|
33117
33117-12011 Protector, Manual Transmission Case[08.1983 - 07.1987] AE82..5F |
33117-12011 |
US $14.56 |
||
| replacement | |||||
|
33117
|
33117
33117-16010
Protector, Manual Transmission Case
[08.1983 - 07.1987] AE82..5F |
33117-16010 |
— | ||
|
33117A
|
33117A
90105-08040
Bolt(For Plate Bolt Lock)
[08.1983 - 07.1987] AE82,CE80..MTM |
90105-08040 |
— | ||
| replacement | |||||
|
33117A
|
33117A
91641-H0820 Bolt[08.1983 - 07.1987] AE82,CE80..MTM |
91641-H0820 |
from US $0.84 |
||
|
33121G
|
33121G
33102-12020 Cover Sub-Assy, Manual Transmission Case[08.1983 - 07.1987] AE82..5F |
33102-12020 |
US $209.66 |
||
| replacement | |||||
|
33121G
|
33121G
33102-12021 Cover Sub-Assy, Manual Transmission Case[08.1983 - 07.1987] AE82..5F |
33102-12021 |
US $131.04 |
||
|
33121H
|
33121H
91611-60835 Bolt(For Clutch Release Cylinder Setting)[08.1983 - 07.1987] AE82..5F |
91611-60835 |
from US $1.44 |
||
|
33122A
|
33122A
33122-12040 Gasket, Manual Transmission Case Cover[08.1983 - 01.1984] AE82..5F |
33122-12040 |
US $2.77 |
||
|
33124C
|
33124C
33124-12010 Pipe, Oil Receiver, No.1(Mtm)[08.1983 - 07.1987] AE82..5F |
33124-12010 |
US $16.02 |
||
|
33124D
|
33124D
33124-12020 Pipe, Oil Receiver, No.2(Mtm)[08.1983 - 07.1987] AE82..5F |
33124-12020 |
US $16.02 |
||
|
33124H
|
33124H
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
[08.1983 - 11.1984] AE82..5F |
91611-60812 |
— | ||
| replacement | |||||
|
33124H
|
33124H
91611-B0812 Bolt[08.1983 - 11.1984] AE82..5F |
91611-B0812 |
from US $0.76 |
||
|
33124H
|
33124H
91611-60820
Bolt(For Transaxle & Engine Setting)
[11.1984 - 07.1987] AE82..5F |
91611-60820 |
— | ||
| replacement | |||||
|
33124H
|
33124H
91611-G0820 Bolt[11.1984 - 07.1987] AE82..5F |
91611-G0820 |
from US $1.31 |
||
|
33131D
|
33131D
33131-12070 Retainer, Bearing, Front(Mtm)[08.1983 - 07.1987] AE82..5F |
33131-12070 |
US $23.88 |
||
| replacement | |||||
|
33131D
|
33131D
33131-12080
Retainer, Bearing, Front(Mtm)
[08.1983 - 07.1987] AE82..5F |
33131-12080 |
— | ||
|
33131E
|
33131E
90149-60028 Screw(For Bearing Retainer Front)[08.1983 - 07.1987] AE82..5F |
90149-60028 |
US $0.52 |
||
|
9161141020
|
9161141020
91611-41020
Bolt(for Transaxle & Engine Setting)
|
91611-41020 |
— | ||
| replacement | |||||
|
9161141020
|
9161141020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.03 |
||
