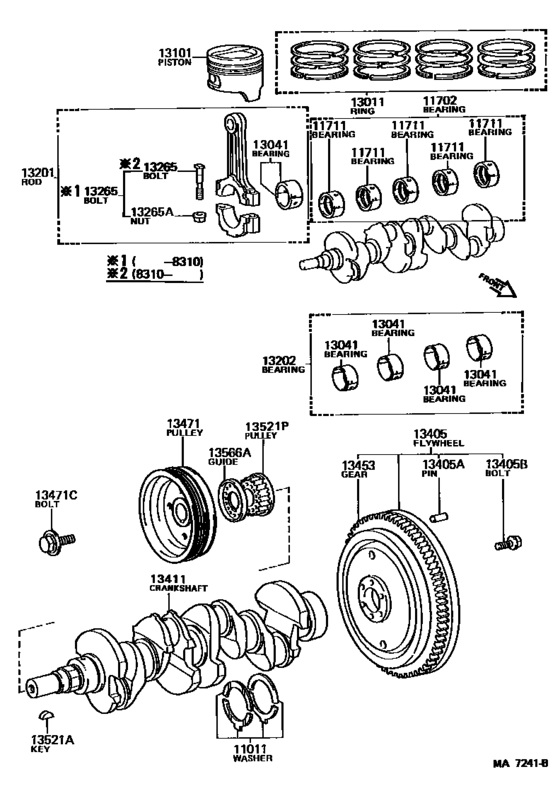

Crankshaft & Piston ([08.1983 - ] (8308- )4ALC) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- DX
- body
- SED
- ENGINE
- 4ALC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1983
- To
- 07.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-15010
Washer Set, Crankshaft Thrust
[08.1983 - 07.1987] 4ALC..AE82 STD |
11011-15010 |
— | ||
| replacement | |||||
|
11011
|
11011
11011-15021 Washer Set, Crankshaft Thrust[08.1983 - 07.1987] 4ALC..AE82 STD |
11011-15021 |
from US $31.46 |
||
|
11702
|
11702
11704-15050 Bearing Set, Crankshaft[08.1983 - 07.1987] 4ALC..AE82 U/S 0.25,U/S 0.25 |
11704-15050 |
US $301.39 |
||
| replacement | |||||
|
11702
|
11702
11704-16010 Bearing Set, Crankshaft[08.1983 - 07.1987] 4ALC..AE82 U/S 0.25,U/S 0.25 |
11704-16010 |
from US $117.74 |
||
|
11711
|
11711
11701-15030-01
Bearing, Crankshaft
[08.1983 - 03.1984] 4ALC..AE82 MARK"1",MARK 1 |
11701-15030-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-16010-01 Bearing, Crankshaft[08.1983 - 03.1984] 4ALC..AE82 MARK"1",MARK 1 |
11701-16010-01 |
from US $20.28 |
||
|
11711
|
11711
11701-15030-02 Bearing, Crankshaft[08.1983 - 03.1984] 4ALC..AE82 MARK"2",MARK 2 |
11701-15030-02 |
US $46.30 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-02 Bearing, Crankshaft[08.1983 - 03.1984] 4ALC..AE82 MARK"2",MARK 2 |
11701-16010-02 |
from US $18.29 |
||
|
11711
|
11711
11701-15030-03 Bearing, Crankshaft[08.1983 - 03.1984] 4ALC..AE82 MARK"3",MARK 3 |
11701-15030-03 |
US $46.30 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-03 Bearing, Crankshaft[08.1983 - 03.1984] 4ALC..AE82 MARK"3",MARK 3 |
11701-16010-03 |
from US $20.73 |
||
|
11711
|
11711
11701-15050-01 Bearing, Crankshaft[07.1984 - 07.1987] 4ALC..AE82 MARK"1",MARK 1 |
11701-15050-01 |
US $46.45 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-01 Bearing, Crankshaft[07.1984 - 07.1987] 4ALC..AE82 MARK"1",MARK 1 |
11701-16010-01 |
from US $20.28 |
||
|
11711
|
11711
11701-15050-02
Bearing, Crankshaft
[07.1984 - 07.1987] 4ALC..AE82 MARK"2",MARK 2 |
11701-15050-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-16010-02 Bearing, Crankshaft[07.1984 - 07.1987] 4ALC..AE82 MARK"2",MARK 2 |
11701-16010-02 |
from US $18.29 |
||
|
11711
|
11711
11701-15050-03 Bearing, Crankshaft[07.1984 - 07.1987] 4ALC..AE82 MARK"3",MARK 3 |
11701-15050-03 |
US $46.45 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-03 Bearing, Crankshaft[07.1984 - 07.1987] 4ALC..AE82 MARK"3",MARK 3 |
11701-16010-03 |
from US $20.73 |
||
|
11711
|
11711
11701-15050-04 Bearing, Crankshaft[08.1986 - 07.1987] 4ALC..AE82 MARK"4",MARK 4 |
11701-15050-04 |
US $46.45 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-04 Bearing, Crankshaft[08.1986 - 07.1987] 4ALC..AE82 MARK"4",MARK 4 |
11701-16010-04 |
from US $20.28 |
||
|
11711
|
11711
11701-15050-05 Bearing, Crankshaft[08.1986 - 07.1987] 4ALC..AE82 MARK"5",MARK 5 |
11701-15050-05 |
US $46.45 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-05 Bearing, Crankshaft[08.1986 - 07.1987] 4ALC..AE82 MARK"5",MARK 5 |
11701-16010-05 |
US $49.62 |
||
|
11711
|
11711
11701-16010-01 Bearing, Crankshaft[03.1984 - 07.1984] 4ALC..AE82 MARK"1",MARK 1 |
11701-16010-01 |
from US $20.28 |
||
|
11711
|
11711
11701-16010-02 Bearing, Crankshaft[03.1984 - 07.1984] 4ALC..AE82 MARK"2",MARK 2 |
11701-16010-02 |
from US $18.29 |
||
|
11711
|
11711
11701-16010-03 Bearing, Crankshaft[03.1984 - 07.1984] 4ALC..AE82 MARK"3",MARK 3 |
11701-16010-03 |
from US $20.73 |
||
|
13011
|
13011
13011-16011 Ring Set, Piston[08.1983 - 07.1987] 4ALC..AE82 STD |
13011-16011 |
US $219.86 |
||
|
13011
|
13011
13013-16011 Ring Set, Piston[08.1983 - 07.1987] 4ALC..AE82 O/S 0.50 |
13013-16011 |
US $219.86 |
||
|
13041
|
13041
13041-15011-01 Bearing, Connecting Rod[08.1983 - 10.1983] 4ALC..AE82 MARK"1",MARK 1 |
13041-15011-01 |
US $37.56 |
||
|
13041
|
13041
13041-15011-02 Bearing, Connecting Rod[08.1983 - 10.1983] 4ALC..AE82 MARK"2",MARK 2 |
13041-15011-02 |
US $37.56 |
||
|
13041
|
13041
13041-15011-03 Bearing, Connecting Rod[08.1983 - 10.1983] 4ALC..AE82 MARK"3",MARK 3 |
13041-15011-03 |
US $37.56 |
||
|
13041
|
13041
13041-15030-01 Bearing, Connecting Rod[10.1983 - 07.1987] 4ALC..AE82 MARK"1",MARK 1 |
13041-15030-01 |
US $33.63 |
||
| replacement | |||||
|
13041
|
13041
13041-15031-01 Bearing, Connecting Rod[10.1983 - 07.1987] 4ALC..AE82 MARK"1",MARK 1 |
13041-15031-01 |
from US $17.57 |
||
|
13041
|
13041
13041-15030-02 Bearing, Connecting Rod[10.1983 - 07.1987] 4ALC..AE82 MARK"2",MARK 2 |
13041-15030-02 |
US $33.63 |
||
| replacement | |||||
|
13041
|
13041
13041-15031-02 Bearing, Connecting Rod[10.1983 - 07.1987] 4ALC..AE82 MARK"2",MARK 2 |
13041-15031-02 |
from US $16.01 |
||
|
13041
|
13041
13041-15030-03 Bearing, Connecting Rod[10.1983 - 07.1987] 4ALC..AE82 MARK"3",MARK 3 |
13041-15030-03 |
US $33.63 |
||
| replacement | |||||
|
13041
|
13041
13041-15031-03 Bearing, Connecting Rod[10.1983 - 07.1987] 4ALC..AE82 MARK"3",MARK 3 |
13041-15031-03 |
US $38 |
||
|
13101
|
13101
13101-16010 Piston Sub-Assy, W/pin[08.1983 - 07.1987] 4ALC..AE82 STD,STD |
13101-16010 |
US $66.68 |
||
| replacement | |||||
|
13101
|
13101
13101-16010-02 Piston Sub-Assy, W/pinW/PIN [08.1983 - 07.1987] 4ALC..AE82 STD,STD |
13101-16010-02 |
from US $66.68 |
||
|
13101
|
13101
13103-16010 Piston Sub-Assy, W/pin[08.1983 - 07.1987] 4ALC..AE82 O/S 0.50,O/S 0.50 |
13103-16010 |
US $87.36 |
||
|
13201
|
13201
13201-19045 Rod Sub-Assy, Connecting[08.1983 - 10.1983] 4ALC..AE82 |
13201-19045 |
US $167.44 |
||
| replacement | |||||
|
13201
|
13201
13201-19056 Rod Sub-Assy, Connecting[08.1983 - 10.1983] 4ALC..AE82 |
13201-19056 |
US $147.06 |
||
|
13201
|
13201
13201-19055
Rod Sub-Assy, Connecting
[10.1983 - 07.1987] 4ALC..AE82 |
13201-19055 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-19056 Rod Sub-Assy, Connecting[10.1983 - 07.1987] 4ALC..AE82 |
13201-19056 |
US $147.06 |
||
|
13202
|
13202
13204-15011 Bearing Set, Connecting Rod[08.1983 - 10.1983] 4ALC..AE82 U/S 0.25 |
13204-15011 |
US $167.44 |
||
|
13202
|
13202
13204-15030
Bearing Set, Connecting Rod (0.25)
[10.1983 - 07.1987] 4ALC..AE82 U/S 0.25,U/S 0.25 |
13204-15030 |
— | ||
| replacement | |||||
|
13202
|
13202
13204-15031 Bearing Set, Connecting Rod (0.25)[10.1983 - 07.1987] 4ALC..AE82 U/S 0.25,U/S 0.25 |
13204-15031 |
US $145.60 |
||
|
13265
|
13265
13265-15020 Bolt, Connecting Rod[10.1983 - 07.1987] 4ALC..AE82 |
13265-15020 |
US $6.41 |
||
| replacements | |||||
|
13265
|
13265
13265-16010 Bolt, Connecting Rod[10.1983 - 07.1987] 4ALC..AE82 |
13265-16010 |
US $8 |
||
|
13265
|
13265
90170-09003 Nut, Hexagon(For Connecting Rod Bolt)[10.1983 - 07.1987] 4ALC..AE82 |
90170-09003 |
US $2.88 |
||
|
13265
|
13265
13265-19015 Bolt, Connecting Rod[08.1983 - 10.1983] 4ALC..AE82 |
13265-19015 |
US $6.70 |
||
|
13265A
|
13265A
90170-08014 Nut, Hexagon(For Connecting Rod Bolt)[08.1983 - 10.1983] 4ALC..AE82 |
90170-08014 |
US $2.34 |
||
|
13265A
|
13265A
90170-09001 Nut, Hexagon(For Connecting Rod Bolt)[10.1983 - 07.1987] 4ALC..AE82 |
90170-09001 |
US $2.72 |
||
|
13405
|
13405
13405-19075 Flywheel Sub-Assy[08.1983 - 07.1987] 4ALC..AE82..5F |
13405-19075 |
US $329.06 |
||
| replacement | |||||
|
13405
|
13405
13405-15030 Flywheel Sub-Assy[08.1983 - 07.1987] 4ALC..AE82..5F |
13405-15030 |
US $292.66 |
||
|
13405A
|
13405A
90250-08120 Pin, Straight, No.1[08.1983 - 07.1987] 4ALC..AE82..5F L=18,OD=8 |
90250-08120 |
from US $1.03 |
||
|
13405B
|
13405B
90105-10042 Bolt, Flywheel Setting[08.1983 - 07.1987] 4ALC..AE82..5F |
90105-10042 |
US $1.76 |
||
|
13411
|
13411
13411-15030 Crankshaft[08.1983 - 01.1987] 4ALC..AE82 |
13411-15030 |
US $1,017.74 |
||
| replacement | |||||
|
13411
|
13411
13411-15900 Crankshaft[08.1983 - 01.1987] 4ALC..AE82 |
13411-15900 |
from US $788.95 |
||
|
13411
|
13411
13411-15040 Crankshaft[01.1987 - 07.1987] 4ALC..AE82 |
13411-15040 |
US $1,017.74 |
||
| replacement | |||||
|
13411
|
13411
13411-15900 Crankshaft[01.1987 - 07.1987] 4ALC..AE82 |
13411-15900 |
from US $788.95 |
||
|
13453
|
13453
13453-10010 Gear, Flywheel Ring[08.1983 - 07.1987] 4ALC..AE82..5F |
13453-10010 |
US $57.26 |
||
|
13471
|
13471
13470-15010 Pulley, CrankshaftCRANKSHAFT [08.1983 - 10.1983] 4ALC..AE82 |
13470-15010 |
US $199.47 |
||
|
13471
|
13471
13470-15020 Pulley, Crankshaft[10.1983 - 07.1987] 4ALC..AE82 |
13470-15020 |
US $199.47 |
||
| replacement | |||||
|
13471
|
13471
13470-15010 Pulley, CrankshaftCRANKSHAFT [10.1983 - 07.1987] 4ALC..AE82 |
13470-15010 |
US $199.47 |
||
|
13471C
|
13471C
90105-12012 Bolt(For Crankshaft Pulley Set)[08.1983 - 01.1986] 4ALC..AE82 |
90105-12012 |
US $4.89 |
||
|
13471C
|
13471C
90119-12101 Bolt(For Crankshaft Pulley Set)[01.1986 - 07.1987] 4ALC..AE82 |
90119-12101 |
US $5.53 |
||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[08.1983 - 09.1986] 4ALC..AE82 |
90280-05010 |
US $4.16 |
||
|
13521A
|
13521A
95161-10519 Key(For Oil Pump Drive Spline)[09.1986 - 07.1987] 4ALC..AE82 |
95161-10519 |
from US $1.68 |
||
|
13521P
|
13521P
13521-15010 Pulley, Crankshaft Timing[08.1983 - 07.1987] 4ALC..AE82 |
13521-15010 |
from US $18.02 |
||
|
13566A
|
13566A
13566-15010 Guide, Timing Belt[08.1983 - 07.1987] 4ALC..AE82 |
13566-15010 |
from US $5.44 |
||
