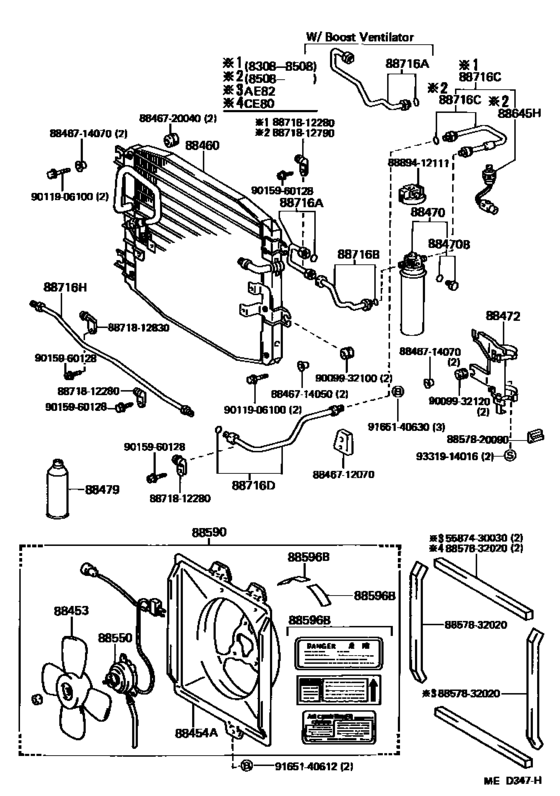

Heating & Air Conditioning - Cooler Piping ([08.1983 - ] (8308- )) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- DX
- body
- SED
- ENGINE
- 4ALC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1983
- To
- 07.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88453
|
88453
16361-28010
Fan, Cooling (For Condenser)
[08.1983 - 08.1985] AE82 |
16361-28010 |
— | ||
|
88453
|
88453
88453-10010
Fan, Cooling (For Condenser)
[08.1985 - 07.1987] AE82..USA HEATER ONLY |
88453-10010 |
— | ||
|
88454A
|
88454A
88454-12050
Shroud, Fan
[08.1983 - 08.1985] AE82 |
88454-12050 |
— | ||
|
88454A
|
88454A
88454-12090
Shroud, Fan
[08.1985 - 07.1987] AE82..USA HEATER ONLY |
88454-12090 |
— | ||
|
88460
|
88460
88460-12250 Condenser Assy, CoolerCOOLER [08.1983 - 08.1985] AE82,CE80..DX,LE,LEL |
88460-12250 |
US $438.26 |
||
| replacement | |||||
|
88460
|
88460
88460-12200 Condenser Assy, Cooler[08.1983 - 08.1985] AE82,CE80..DX,LE,LEL |
88460-12200 |
US $534.35 |
||
|
88460
|
88460
88460-12251 Condenser Assy, CoolerCOOLER [08.1985 - 07.1987] AE82..USA |
88460-12251 |
US $439.71 |
||
| replacement | |||||
|
88460
|
88460
88460-12201 Condenser Assy, Cooler[08.1985 - 07.1987] AE82..USA |
88460-12201 |
US $509.60 |
||
|
88470
|
88470
88470-12061 Receiver & Dryer Assy, CoolerCOOLER [08.1983 - 04.1984] AE82,CE80..DX,LE |
88470-12061 |
US $90.27 |
||
| replacement | |||||
|
88470
|
88470
88470-14010
Receiver & Dryer Assy, Cooler
[08.1983 - 04.1984] AE82,CE80..DX,LE |
88470-14010 |
— | ||
|
88470
|
88470
88470-14010
Receiver & Dryer Assy, Cooler
[04.1984 - 07.1987] AE82,CE80..DX,LE,LEL |
88470-14010 |
— | ||
|
88470B
|
88470B
88475-12020
Bolt, Fuse
[04.1984 - 07.1987] AE82,CE80..DX,LE,LEL |
88475-12020 |
— | ||
|
88472
|
88472
88473-20010
Bracket, Receiver Tank, No.1
[08.1983 - 07.1987] AE82,CE80..DX,LE,LEL |
88473-20010 |
— | ||
|
88479
|
88479
90986-02001
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[08.1983 - 07.1987] AE82,CE80..DX,LE,LEL 400G |
90986-02001 |
— | ||
| replacements | |||||
|
88479
|
88479
90986-02004
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[08.1983 - 07.1987] AE82,CE80..DX,LE,LEL 400G |
90986-02004 |
— | ||
|
88479
|
88479
90986-02005
New Genuine Part
[08.1983 - 07.1987] AE82,CE80..DX,LE,LEL 400G |
90986-02005 |
— | ||
|
88550
|
88550
88550-12080 Motor Assy, Blower (For Condenser)BLOWER (FOR CONDENSER) [08.1983 - 08.1985] AE82,CE80..DX,LE |
88550-12080 |
US $260.62 |
||
|
88550
|
88550
88550-12090 Motor Assy, Blower (For Condenser)[08.1985 - 07.1987] AE82..USA HEATER ONLY |
88550-12090 |
US $230.05 |
||
|
88590
|
88590
88590-12040
Blower Assy, W/shroud
[08.1983 - 08.1984] AE82 |
88590-12040 |
— | ||
| replacement | |||||
|
88590
|
88590
88590-12010
Blower Assy, W/shroud
[08.1983 - 08.1984] AE82 |
88590-12010 |
— | ||
|
88590
|
88590
88590-12090
Blower Assy, W/shroud
[08.1984 - 08.1985] AE82..USA HEATER ONLY |
88590-12090 |
— | ||
| replacement | |||||
|
88590
|
88590
88590-12010
Blower Assy, W/shroud
[08.1984 - 08.1985] AE82..USA HEATER ONLY |
88590-12010 |
— | ||
|
88590
|
88590
88590-12130
Blower Assy, W/shroud
[08.1985 - 07.1987] AE82..USA HEATER ONLY |
88590-12130 |
— | ||
| replacement | |||||
|
88590
|
88590
88590-12140
Blower Assy, W/shroud
[08.1985 - 07.1987] AE82..USA HEATER ONLY |
88590-12140 |
— | ||
|
88596B
|
88596B
88596-12010
Plate, Caution, No.1
[08.1984 - 07.1987] AE82,CE80 AIR CONDITIONER CAUTION |
88596-12010 |
— | ||
| replacement | |||||
|
88596B
|
88596B
88723-12010
Plate, Caution, No.1
[08.1984 - 07.1987] AE82,CE80 AIR CONDITIONER CAUTION |
88723-12010 |
— | ||
|
88596B
|
88596B
88596-12040
Plate, Caution, No.1
[08.1985 - 07.1987] AE82..USA DANGER CAUTION |
88596-12040 |
— | ||
|
88596B
|
88596B
88596-14010
Plate, Caution(For Fan Shroud)
[08.1983 - 08.1985] AE82,CE80..DX,LE,LEL |
88596-14010 |
— | ||
|
88645H
|
88645H
88645-32020
Switch, Pressure No.1
[08.1985 - 07.1987] AE82..USA |
88645-32020 |
— | ||
| replacement | |||||
|
88645H
|
88645H
88645-16050
Switch, Pressure No.1
[08.1985 - 07.1987] AE82..USA |
88645-16050 |
— | ||
|
88716A
|
88716A
88716-12750 Pipe, Cooler Refrigerant Liquid, ACOOLER REFRIGERANT LIQUID, A [08.1984 - 08.1985] AE82..CND; AE82..USA *BV ONLY |
88716-12750 |
US $37.71 |
||
|
88716A
|
88716A
88716-12860 Pipe, Cooler Refrigerant Liquid, ACOOLER REFRIGERANT LIQUID, A [08.1983 - 08.1984] AE82,CE80..DX,LE |
88716-12860 |
US $29.27 |
||
|
88716B
|
88716B
88716-12870 Pipe, Cooler Refrigerant Liquid, ACOOLER REFRIGERANT LIQUID, B [08.1983 - 08.1984] AE82,CE80..DX,LE |
88716-12870 |
US $29.85 |
||
|
88716C
|
88716C
88716-12810 Pipe, Cooler Refrigerant Liquid, CCOOLER REFRIGERANT LIQUID, C [08.1983 - 08.1985] AE82,CE80..DX,LE,LEL |
88716-12810 |
US $126.67 |
||
|
88716C
|
88716C
88716-12850 Pipe, Cooler Refrigerant Liquid, CCOOLER REFRIGERANT LIQUID, C [08.1985 - 07.1987] AE82..USA |
88716-12850 |
US $40.04 |
||
|
88716D
|
88716D
88716-12830 Pipe, Cooler Refrigerant Liquid, DCOOLER REFRIGERANT LIQUID, D [08.1983 - 07.1987] AE82,CE80..DX,LE,LEL |
88716-12830 |
US $32.61 |
||
|
88716H
|
88716H
88716-12820 Pipe, Cooler Refrigerant Liquid, HCOOLER REFRIGERANT LIQUID, H [08.1983 - 07.1987] AE82,CE80..DX,LE,LEL |
88716-12820 |
US $62.90 |
||
|
5587430030
|
5587430030
55874-30030
Adapter, Cowl Side Ventilator Duct
|
55874-30030 |
— | ||
|
8846712070
|
8846712070
88467-12070
Cushion, Cooler Condenser, No.1
|
88467-12070 |
— | ||
|
8846714050
|
8846714050
88467-14050
Cushion, Cooler Condenser, No.1
|
88467-14050 |
— | ||
|
8846714070
|
8846714070
88467-14070
Insulator (For Power Take-Off Cable Bracket)
|
88467-14070 |
— | ||
|
8846720040
|
8846720040
88467-20040
Insulator, Cooler Condenser Mounting
|
88467-20040 |
— | ||
|
8857820090
|
8857820090
88578-20090
Paking, Cooler Air Duct
|
88578-20090 |
— | ||
|
8857832020
|
8857832020
88578-32020
Packing A (For Cooler)
|
88578-32020 |
— | ||
|
8871812280
|
8871812280
88718-12280
Clamp(For Cooler Refrigerant Pipe), No.1
|
88718-12280 |
— | ||
|
8871812790
|
8871812790
88718-12790
Pipe, Cooler Refrigerant Suction, No.2
|
88718-12790 |
— | ||
|
8871812830
|
8871812830
88718-12830
Pipe, Cooler Refrigerant Suction, No.2
|
88718-12830 |
— | ||
|
8889412111
|
8889412111
88894-12111
Cap, Cooler Receiver Tank
|
88894-12111 |
— | ||
|
9009932100
|
9009932100
90099-32100
Cushion, Cooler Condenser, No.2
|
90099-32100 |
— | ||
|
9009932120
|
9009932120
90099-32120
Cushion, Cooler Condenser, No.2
|
90099-32120 |
— | ||
| replacement | |||||
|
9009932120
|
9009932120
90099-32130 Grommet (For Power Take-Off Cable Bracket) |
90099-32130 |
from US $1.54 |
||
|
9011906100
|
9011906100
90119-06100 BOLT |
90119-06100 |
US $1.60 |
||
|
9015960128
|
9015960128
90159-60128 New Genuine Part |
90159-60128 |
US $1.92 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140630
|
9165140630
91651-40630 BOLT |
91651-40630 |
US $1.28 |
||
|
9331914016
|
9331914016
93319-14016 New Genuine Part |
93319-14016 |
US $2.04 |
||
