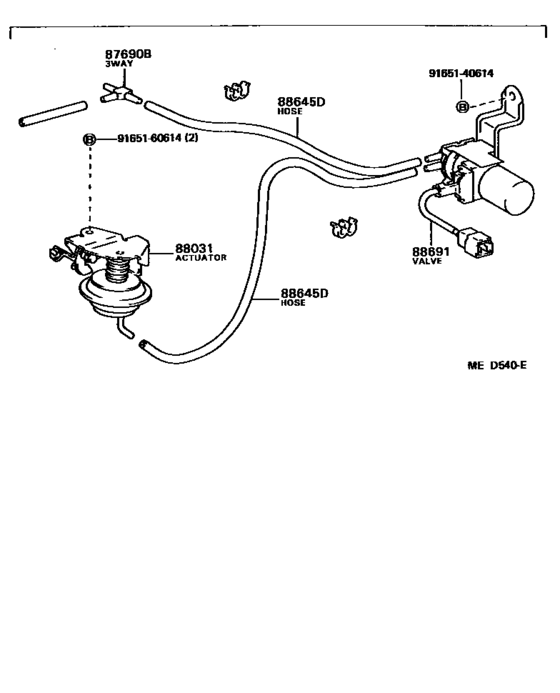

Heating & Air Conditioning - Vacuum Piping ([08.1983 - ] (8308- )AE82) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- DX
- body
- SED
- ENGINE
- 4ALC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1983
- To
- 07.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87690B
|
87690B
90413-04005 Way, 3, No.1 (For Front Drive Shift)[08.1983 - 07.1987] AE82 |
90413-04005 |
from US $3.04 |
||
|
88031
|
88031
88031-12140 Actuator Set, Idle-UpIDLE-UP [08.1983 - 07.1987] AE82 |
88031-12140 |
US $171.81 |
||
|
88645D
|
88645D
95411-10060 Hose, Vacuum[08.1983 - 07.1987] AE82 *H,L=390,MARK=#0 |
95411-10060 |
US $12.23 |
||
| replacement | |||||
|
88645D
|
88645D
90999-92003
Hose, Breather (For Transfer Case)
[08.1983 - 07.1987] AE82 *H,L=390,MARK=#0 |
90999-92003 |
— | ||
|
88645D
|
88645D
95411-19930
Hose(For Carburetor To Manifold)
[08.1983 - 12.1985] AE82 *H,L=260,MARK=#* |
95411-19930 |
— | ||
| replacement | |||||
|
88645D
|
88645D
90999-92002
Air Hose (300 mm)
[08.1983 - 12.1985] AE82 *H,L=260,MARK=#* |
90999-92002 |
— | ||
|
88691
|
88691
88690-12280
Valve, Magnet (For Idle Up Device)
[08.1983 - 08.1985] AE82,CE80..DX,LE,LEL |
88690-12280 |
— | ||
|
88691
|
88691
88690-12281
Valve, Magnet (For Idle Up Device)
[08.1985 - 07.1987] AE82..USA |
88690-12281 |
— | ||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
