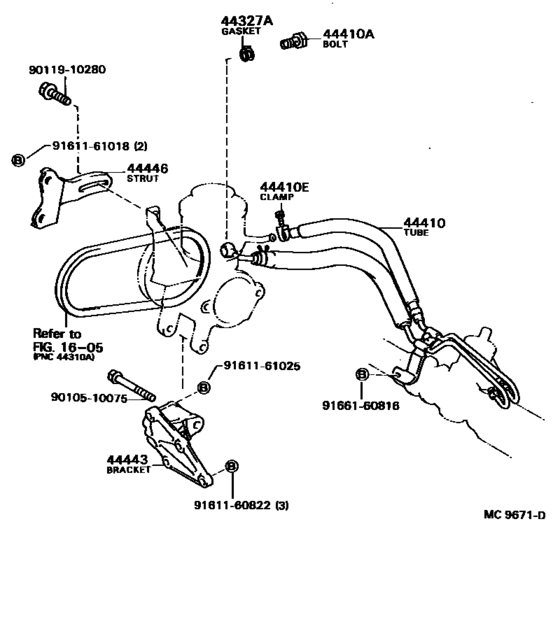

Power Steering Tube ([08.1983 - ] (8308- )AE82) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- DX
- body
- SED
- ENGINE
- 4ALC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1983
- To
- 07.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44327A
|
44327A
44327-12010 Gasket(For Pressure Hose)[08.1983 - 07.1987] AE82,CE80..DX,LE,LEL |
44327-12010 |
from US $4.16 |
||
|
44410
|
44410
44410-12050 Tube Assy, Pressure FeedPRESSURE FEED [08.1983 - 07.1987] AE82 |
44410-12050 |
US $502.32 |
||
| replacement | |||||
|
44410
|
44410
44410-12051 Tube Assy, Pressure Feed[08.1983 - 07.1987] AE82 |
44410-12051 |
US $505.23 |
||
|
44410A
|
44410A
90401-16008 Bolt, Union(For Pressure Feed Tube)[08.1983 - 07.1987] AE82,CE80..DX,LE,LEL |
90401-16008 |
from US $9.76 |
||
|
44410E
|
44410E
90460-01001 Clamp, Oil Cooler Hose[08.1983 - 07.1987] AE82,CE80..DX,LE,LEL |
90460-01001 |
US $9.28 |
||
|
44443
|
44443
44443-12050 Bracket, Pump[08.1983 - 07.1987] AE82 |
44443-12050 |
US $113.57 |
||
|
44446
|
44446
44446-12030 Strut, Adjusting[08.1983 - 07.1987] AE82 |
44446-12030 |
US $21.99 |
||
|
9010510075
|
9010510075
90105-10075 Bolt(For Alternator) |
90105-10075 |
from US $1.50 |
||
|
9011910280
|
9011910280
90119-10280 New Genuine Part |
90119-10280 |
US $4.80 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.19 |
||
|
9161161018
|
9161161018
91611-61018
Bolt (For Transfer Case)Cover No.2
|
91611-61018 |
— | ||
| replacement | |||||
|
9161161018
|
9161161018
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $1.09 |
||
|
9166160816
|
9166160816
91661-60816 Bolt |
91661-60816 |
US $2.08 |
||
