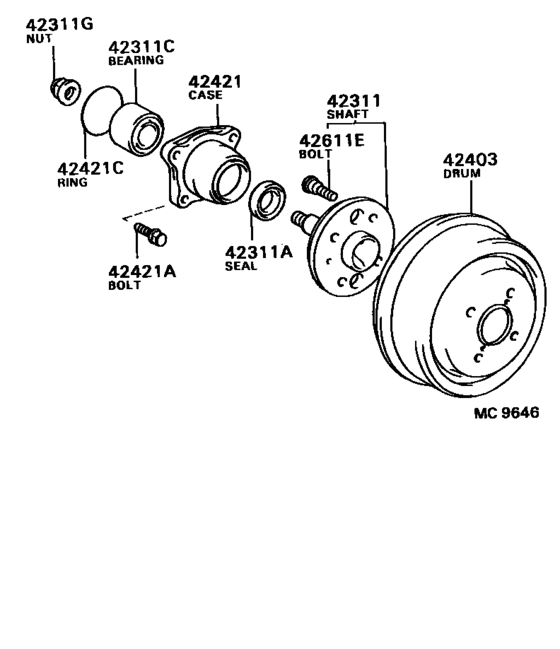

Rear Axle Shaft & Hub ([08.1983 - ] (8308- )) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- DX
- body
- SED
- ENGINE
- 4ALC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1983
- To
- 07.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42311
|
42311
42301-12110 Shaft, Rear AxleREAR AXLE [08.1983 - 08.1984] AE82,CE80 |
42301-12110 |
US $198.02 |
||
|
42311
|
42311
42301-12120 Shaft, Rear AxleREAR AXLE [08.1984 - 07.1987] AE82,CE80 |
42301-12120 |
US $186.37 |
||
|
42311A
|
42311A
90311-41001 Seal, Oil (For Rear Axle Shaft)OIL (FOR REAR AXLE SHAFT) [08.1983 - 09.1985] AE82,CE80 |
90311-41001 |
US $4.37 |
||
| replacement | |||||
|
42311A
|
42311A
90311-41003 Seal, Oil (For Rear Axle Shaft)[08.1983 - 09.1985] AE82,CE80 |
90311-41003 |
US $4.37 |
||
|
42311A
|
42311A
90311-41003 Seal, Oil (For Rear Axle Shaft)[09.1985 - 07.1987] AE82 |
90311-41003 |
US $4.37 |
||
|
42311C
|
42311C
90369-28006 Bearing (For Axle Shaft)[08.1983 - 07.1987] AE82,CE80 |
90369-28006 |
US $93.24 |
||
|
42311G
|
42311G
90179-20003 Nut (For Rear Axle Shaft)[08.1983 - 07.1987] AE82,CE80 |
90179-20003 |
US $8.16 |
||
|
42403
|
42403
42431-20070 Drum Sub-Assy, Rear Brake[08.1983 - 07.1987] AE82,CE80 |
42431-20070 |
US $144.14 |
||
|
42421
|
42421
42421-12010
Case, Rear Axle Bearing
[08.1983 - 07.1987] AE82,CE80 |
42421-12010 |
— | ||
|
42421A
|
42421A
90105-10006 Bolt, Hexagon(For Drive Plate Setting)[08.1983 - 08.1984] AE82,CE80 |
90105-10006 |
US $3.64 |
||
|
42421A
|
42421A
90105-10124 Bolt (For Axle Bearing)[08.1984 - 07.1987] AE82,CE80 |
90105-10124 |
US $3.20 |
||
|
42421C
|
42421C
90301-61002 Ring, O (For Axle Bearing)[08.1983 - 07.1987] AE82,CE80 |
90301-61002 |
from US $2.94 |
||
|
42611E
|
42611E
90942-02047 Bolt, Hub[08.1983 - 07.1987] AE82,CE80 |
90942-02047 |
from US $3.65 |
||
