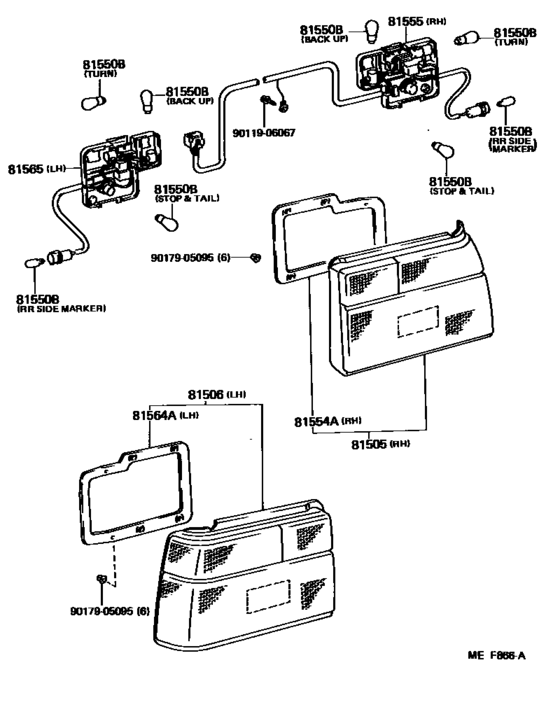

Rear Combination Lamp ([08.1985 - ] (8508- )SED) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- DX
- body
- SED
- ENGINE
- 4ALC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1983
- To
- 07.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81505
|
81505
81505-12770
Lamp Sub-Assy, Rear Combination, Rh
[08.1985 - 07.1987] AE82..SED |
81505-12770 |
— | ||
|
81505
|
81505
81505-19715
Lamp Sub-Assy, Rear Combination, Rh
[08.1983 - 08.1985] AE82,CE80..SED |
81505-19715 |
— | ||
|
81506
|
81506
81506-12690 Lamp Sub-Assy, Rear Combination, LhREAR COMBINATION, LH [08.1985 - 07.1987] AE82..SED |
81506-12690 |
US $199.47 |
||
|
81506
|
81506
81506-19575 Lamp Sub-Assy, Rear Combination, LhREAR COMBINATION, LH [08.1983 - 08.1985] AE82,CE80..SED |
81506-19575 |
US $267.90 |
||
|
81550B
|
81550B
90981-11020 Bulb (For Lower Back Finish Panel Emblem)[08.1983 - 07.1987] AE82,CE80 12V 3.8W,12V 3.8W(RR SIDE MARKER) |
90981-11020 |
from US $2.72 |
||
|
81550B
|
81550B
99132-11270 Bulb, Fog Lamp[08.1983 - 07.1987] AE82,CE80 12V 27W,12V 27W(TURN OR BACK UP) |
99132-11270 |
US $3.36 |
||
|
81550B
|
81550B
99132-21270 Bulb (For Front Turn Signal Lamp)[08.1983 - 07.1987] AE82,CE80 12V 27/8W,12V 27/8W(STOP & TAIL) |
99132-21270 |
US $4.32 |
||
|
81554A
|
81554A
81554-1A150 Gasket, Rear Combination Lamp Body, No.1 RhREAR COMBINATION LAMP BODY, NO.1 RH [08.1983 - 08.1985] AE82,CE80..SED |
81554-1A150 |
US $14.27 |
||
|
81554A
|
81554A
81554-1A310
Gasket, Rear Combination Lamp Body, No.1 Rh
[08.1985 - 07.1987] AE82..SED |
81554-1A310 |
— | ||
|
81555
|
81555
81555-1A060 Socket & Wire Sub-Assy, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.1985 - 07.1987] AE82..SED |
81555-1A060 |
US $94.64 |
||
|
81555
|
81555
81555-1A170 Socket & Wire Sub-Assy, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.1983 - 08.1985] AE82,CE80..SED |
81555-1A170 |
US $59.99 |
||
|
81564A
|
81564A
81554-1A150 Gasket, Rear Combination Lamp Body, No.1 RhREAR COMBINATION LAMP BODY, NO.1 RH [08.1983 - 08.1985] AE82,CE80..SED |
81554-1A150 |
US $14.27 |
||
|
81564A
|
81564A
81554-1A310
Gasket, Rear Combination Lamp Body, No.1 Rh
[08.1985 - 07.1987] AE82..SED |
81554-1A310 |
— | ||
|
81565
|
81565
81565-12870 Socket & Wire Sub-Assy, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1985 - 07.1987] AE82..SED |
81565-12870 |
US $51.40 |
||
|
81565
|
81565
81565-1A170 Socket & Wire Sub-Assy, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1983 - 08.1985] AE82,CE80..SED |
81565-1A170 |
US $59.99 |
||
|
9011906067
|
9011906067
90119-06067 BOLT |
90119-06067 |
US $1.76 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $2.08 |
||
