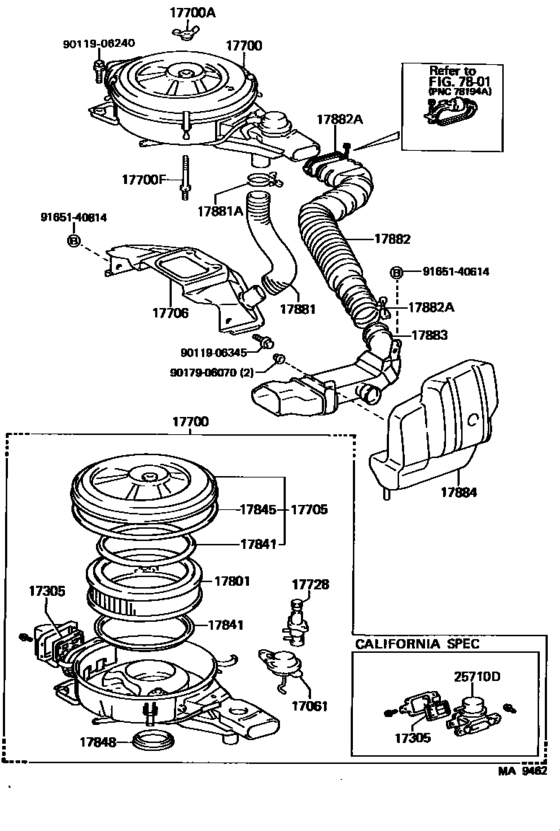

Air Cleaner ([02.1987 - ] (8702- )4ALC) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- D
- ENGINE
- 4ALC
- TRANSMISSION
- ATM
- Model
- COROLLA FX
- From
- 02.1987
- To
- 08.1988
- Vehicle Model
- Corolla FX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17061
|
17061
17061-15030
Diaphragm Sub-Assy
[02.1987 - 08.1988] 4ALC..AE82 |
17061-15030 |
— | ||
|
17305
|
17305
17305-15010 Valve Sub-Assy, Reed[02.1987 - 08.1988] 4ALC..AE82 CALIFORNIA SPEC |
17305-15010 |
US $64.21 |
||
|
17305
|
17305
17305-16010 Valve Sub-Assy, ReedREED [02.1987 - 08.1988] 4ALC..AE82 |
17305-16010 |
US $69.74 |
||
|
17700
|
17700
17700-16190
Cleaner Assy, Air
[02.1987 - 08.1988] 4ALC..AE82 |
17700-16190 |
— | ||
|
17700
|
17700
17700-16240 Cleaner Assy, AirAIR [02.1987 - 08.1988] 4ALC..AE82 CALIFORNIA SPEC |
17700-16240 |
US $490.67 |
||
|
17700A
|
17700A
90175-06003 Nut, Wing(For Air Cleaner)[02.1987 - 08.1988] 4ALC..AE82 |
90175-06003 |
from US $1.23 |
||
|
17700F
|
17700F
90116-06039 Bolt, Stud(For Air Cleaner Setting)[02.1987 - 08.1988] 4ALC..AE82 |
90116-06039 |
US $3.35 |
||
|
17705
|
17705
17705-16050
Cap Sub-Assy, Air Cleaner
[02.1987 - 08.1988] 4ALC..AE82 |
17705-16050 |
— | ||
|
17706
|
17706
17902-16010 Inlet Sub-Assy, Air Cleaner, No.2AIR CLEANER, NO.2 [02.1987 - 08.1988] 4ALC..AE82 |
17902-16010 |
US $158.70 |
||
| replacement | |||||
|
17706
|
17706
17902-16011 Inlet Sub-Assy, Air Cleaner, No.2[02.1987 - 08.1988] 4ALC..AE82 |
17902-16011 |
US $160.16 |
||
|
17728
|
17728
17728-15020
Valve, Thermostatic
[02.1987 - 08.1988] 4ALC..AE82 |
17728-15020 |
— | ||
|
17801
|
17801
17801-15010 Element Sub-Assy, Air Cleaner Filter[02.1987 - 08.1988] 4ALC..AE82 |
17801-15010 |
US $22.34 |
||
|
17841
|
17841
17841-15010
Gasket, Filter Element
[02.1987 - 08.1988] 4ALC..AE82 |
17841-15010 |
— | ||
|
17845
|
17845
17845-61011
Gasket(For Bottom Air Cleaner Filter Case)
[02.1987 - 08.1988] 4ALC..AE82 *G,L=1060 |
17845-61011 |
— | ||
|
17848
|
17848
90430-63001
Gasket, Air Cleaner To Carburetor
[02.1987 - 08.1988] 4ALC..AE82 |
90430-63001 |
— | ||
| replacement | |||||
|
17848
|
17848
17848-10020
Gasket, Air Cleaner To Carburetor
[02.1987 - 08.1988] 4ALC..AE82 |
17848-10020 |
— | ||
|
17881
|
17881
17881-01040
Hose, Air Cleaner, No.1
[07.1987 - 08.1988] 4ALC..AE82 |
17881-01040 |
— | ||
| replacement | |||||
|
17881
|
17881
17881-16210
Hose, Air Cleaner, No.1
[07.1987 - 08.1988] 4ALC..AE82 |
17881-16210 |
— | ||
|
17881
|
17881
17881-16110
Hose, Air Cleaner, No.1
[02.1987 - 07.1987] 4ALC..AE82 |
17881-16110 |
— | ||
| replacement | |||||
|
17881
|
17881
17881-16210
Hose, Air Cleaner, No.1
[02.1987 - 07.1987] 4ALC..AE82 |
17881-16210 |
— | ||
|
17881A
|
17881A
90929-01117 Clamp(For Air Cleaner Hose, No.1)[02.1987 - 08.1988] 4ALC..AE82 |
90929-01117 |
US $7.13 |
||
|
17882
|
17882
17881-12060
Hose, Air Cleaner, No.2
[02.1987 - 08.1988] 4ALC..AE82 |
17881-12060 |
— | ||
|
17882A
|
17882A
90460-01005 Clamp(For Air Cleaner Hose, No.2)[02.1987 - 08.1988] 4ALC..AE82 AIR CLEANER SIDE |
90460-01005 |
US $4.40 |
||
|
17882A
|
17882A
96111-10650 Clamp(For Air Cleaner Inlet, No.1)[02.1987 - 08.1988] 4ALC..AE82 BODY SIDE |
96111-10650 |
from US $2.77 |
||
|
17883
|
17883
17882-12020
Hose, Air Cleaner, No.3
[02.1987 - 08.1988] 4ALC..AE82 |
17882-12020 |
— | ||
|
17884
|
17884
17883-12020 Hose, Air Cleaner, No.4AIR CLEANER, NO.4 [02.1987 - 08.1988] 4ALC..AE82 |
17883-12020 |
US $123.76 |
||
|
25710D
|
25710D
25710-15050
Valve Assy, Air Switching
[02.1987 - 08.1988] 4ALC..AE82 CALIFORNIA SPEC |
25710-15050 |
— | ||
|
9011906240
|
9011906240
90119-06240 New Genuine Part |
90119-06240 |
US $1.75 |
||
| replacement | |||||
|
9011906240
|
9011906240
90119-06965 New Genuine Part |
90119-06965 |
US $0.87 |
||
|
9011906345
|
9011906345
90119-06345 New Genuine Part |
90119-06345 |
US $1.75 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.25 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
