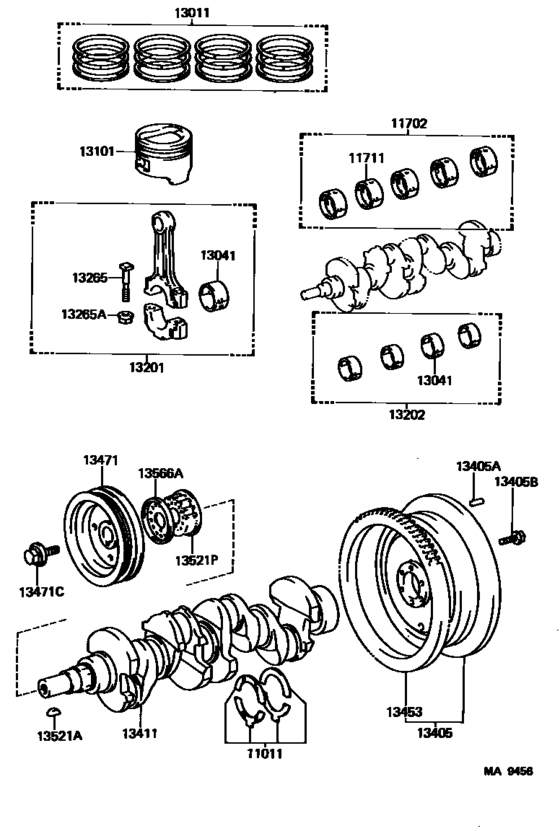

Crankshaft & Piston ([02.1987 - ] (8702- )4ALC) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- D
- ENGINE
- 4ALC
- TRANSMISSION
- ATM
- Model
- COROLLA FX
- From
- 02.1987
- To
- 08.1988
- Vehicle Model
- Corolla FX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-15010
Washer Set, Crankshaft Thrust
[09.1986 - 08.1988] 4A#..AE82 STD |
11011-15010 |
— | ||
| replacement | |||||
|
11011
|
11011
11011-15021 Washer Set, Crankshaft Thrust[09.1986 - 08.1988] 4A#..AE82 STD |
11011-15021 |
from US $31.46 |
||
|
11702
|
11702
11704-15050 Bearing Set, Crankshaft[09.1986 - 08.1988] 4A#..AE82 U/S 0.25,U/S 0.25 |
11704-15050 |
US $301.39 |
||
| replacement | |||||
|
11702
|
11702
11704-16010 Bearing Set, Crankshaft[09.1986 - 08.1988] 4A#..AE82 U/S 0.25,U/S 0.25 |
11704-16010 |
from US $117.74 |
||
|
11711
|
11711
11701-15050-01 Bearing, Crankshaft[09.1986 - 08.1988] 4A#..AE82 MARK"1",MARK 1 |
11701-15050-01 |
US $46.45 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-01 Bearing, Crankshaft[09.1986 - 08.1988] 4A#..AE82 MARK"1",MARK 1 |
11701-16010-01 |
from US $20.28 |
||
|
11711
|
11711
11701-15050-02
Bearing, Crankshaft
[09.1986 - 08.1988] 4A#..AE82 MARK"2",MARK 2 |
11701-15050-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-16010-02 Bearing, Crankshaft[09.1986 - 08.1988] 4A#..AE82 MARK"2",MARK 2 |
11701-16010-02 |
from US $18.29 |
||
|
11711
|
11711
11701-15050-03 Bearing, Crankshaft[09.1986 - 08.1988] 4A#..AE82 MARK"3",MARK 3 |
11701-15050-03 |
US $46.45 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-03 Bearing, Crankshaft[09.1986 - 08.1988] 4A#..AE82 MARK"3",MARK 3 |
11701-16010-03 |
from US $20.73 |
||
|
11711
|
11711
11701-15050-04 Bearing, Crankshaft[09.1986 - 08.1988] 4A#..AE82 MARK"4",MARK 4 |
11701-15050-04 |
US $46.45 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-04 Bearing, Crankshaft[09.1986 - 08.1988] 4A#..AE82 MARK"4",MARK 4 |
11701-16010-04 |
from US $20.28 |
||
|
11711
|
11711
11701-15050-05 Bearing, Crankshaft[09.1986 - 08.1988] 4A#..AE82 MARK"5",MARK 5 |
11701-15050-05 |
US $46.45 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-05 Bearing, Crankshaft[09.1986 - 08.1988] 4A#..AE82 MARK"5",MARK 5 |
11701-16010-05 |
US $49.62 |
||
|
13011
|
13011
13011-16011 Ring Set, Piston[02.1987 - 08.1988] 4ALC..AE82 STD |
13011-16011 |
US $219.86 |
||
|
13011
|
13011
13013-16011 Ring Set, Piston[02.1987 - 08.1988] 4ALC..AE82 O/S 0.50 |
13013-16011 |
US $219.86 |
||
|
13041
|
13041
13041-15030-01 Bearing, Connecting Rod[02.1987 - 08.1988] 4ALC..AE82 MARK"1",MARK 1 |
13041-15030-01 |
US $33.63 |
||
| replacement | |||||
|
13041
|
13041
13041-15031-01 Bearing, Connecting Rod[02.1987 - 08.1988] 4ALC..AE82 MARK"1",MARK 1 |
13041-15031-01 |
from US $17.57 |
||
|
13041
|
13041
13041-15030-02 Bearing, Connecting Rod[02.1987 - 08.1988] 4ALC..AE82 MARK"2",MARK 2 |
13041-15030-02 |
US $33.63 |
||
| replacement | |||||
|
13041
|
13041
13041-15031-02 Bearing, Connecting Rod[02.1987 - 08.1988] 4ALC..AE82 MARK"2",MARK 2 |
13041-15031-02 |
from US $16.01 |
||
|
13041
|
13041
13041-15030-03 Bearing, Connecting Rod[02.1987 - 08.1988] 4ALC..AE82 MARK"3",MARK 3 |
13041-15030-03 |
US $33.63 |
||
| replacement | |||||
|
13041
|
13041
13041-15031-03 Bearing, Connecting Rod[02.1987 - 08.1988] 4ALC..AE82 MARK"3",MARK 3 |
13041-15031-03 |
US $38 |
||
|
13101
|
13101
13101-16010 Piston Sub-Assy, W/pin[02.1987 - 02.1988] 4ALC..AE82 STD,STD |
13101-16010 |
US $66.68 |
||
| replacement | |||||
|
13101
|
13101
13101-16010-02 Piston Sub-Assy, W/pinW/PIN [02.1987 - 02.1988] 4ALC..AE82 STD,STD |
13101-16010-02 |
from US $66.68 |
||
|
13101
|
13101
13101-16010-01 Piston Sub-Assy, W/pinW/PIN [02.1988 - 08.1988] 4ALC..AE82 STD,STD,MARK 1,MARK 1 |
13101-16010-01 |
US $66.68 |
||
|
13101
|
13101
13101-16010-02 Piston Sub-Assy, W/pinW/PIN [02.1988 - 08.1988] 4ALC..AE82 STD,STD,MARK 2,MARK 2 |
13101-16010-02 |
from US $66.68 |
||
|
13101
|
13101
13101-16010-03 Piston Sub-Assy, W/pinW/PIN [02.1988 - 08.1988] 4ALC..AE82 STD,STD,MARK 3,MARK 3 |
13101-16010-03 |
US $66.68 |
||
|
13101
|
13101
13103-16010 Piston Sub-Assy, W/pin[02.1987 - 08.1988] 4ALC..AE82 O/S 0.50,O/S 0.50 |
13103-16010 |
US $87.36 |
||
|
13201
|
13201
13201-19055
Rod Sub-Assy, Connecting
[02.1987 - 08.1988] 4ALC..AE82 |
13201-19055 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-19056 Rod Sub-Assy, Connecting[02.1987 - 08.1988] 4ALC..AE82 |
13201-19056 |
US $147.06 |
||
|
13202
|
13202
13204-15030
Bearing Set, Connecting Rod (0.25)
[02.1987 - 08.1988] 4ALC..AE82 U/S 0.25,U/S 0.25 |
13204-15030 |
— | ||
| replacement | |||||
|
13202
|
13202
13204-15031 Bearing Set, Connecting Rod (0.25)[02.1987 - 08.1988] 4ALC..AE82 U/S 0.25,U/S 0.25 |
13204-15031 |
US $145.60 |
||
|
13265
|
13265
13265-15020 Bolt, Connecting Rod[09.1986 - 08.1987] 4A#..AE82 |
13265-15020 |
US $6.41 |
||
| replacements | |||||
|
13265
|
13265
13265-16010 Bolt, Connecting Rod[09.1986 - 08.1987] 4A#..AE82 |
13265-16010 |
US $8 |
||
|
13265
|
13265
90170-09003 Nut, Hexagon(For Connecting Rod Bolt)[09.1986 - 08.1987] 4A#..AE82 |
90170-09003 |
US $2.88 |
||
|
13265
|
13265
13265-16010 Bolt, Connecting Rod[08.1987 - 08.1988] 4A#..AE82 |
13265-16010 |
US $8 |
||
|
13265A
|
13265A
90170-09001 Nut, Hexagon(For Connecting Rod Bolt)[09.1986 - 08.1987] 4A#..AE82 |
90170-09001 |
US $2.72 |
||
|
13265A
|
13265A
90170-09003 Nut, Hexagon(For Connecting Rod Bolt)[08.1987 - 08.1988] 4A#..AE82 |
90170-09003 |
US $2.88 |
||
|
13411
|
13411
13411-15040 Crankshaft[02.1987 - 08.1988] 4ALC..AE82 |
13411-15040 |
US $1,017.74 |
||
| replacement | |||||
|
13411
|
13411
13411-15900 Crankshaft[02.1987 - 08.1988] 4ALC..AE82 |
13411-15900 |
from US $788.95 |
||
|
13471
|
13471
13470-15020 Pulley, Crankshaft[02.1987 - 08.1988] 4ALC..AE82 |
13470-15020 |
US $199.47 |
||
| replacement | |||||
|
13471
|
13471
13470-15010 Pulley, CrankshaftCRANKSHAFT [02.1987 - 08.1988] 4ALC..AE82 |
13470-15010 |
US $199.47 |
||
|
13471C
|
13471C
90119-12101 Bolt(For Crankshaft Pulley Set)[02.1987 - 08.1988] 4ALC..AE82 |
90119-12101 |
US $5.53 |
||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[09.1987 - 08.1988] 4A#..AE82 |
90280-05010 |
US $4.16 |
||
|
13521A
|
13521A
95161-10519 Key(For Oil Pump Drive Spline)[09.1986 - 09.1987] 4A#..AE82 |
95161-10519 |
from US $1.68 |
||
|
13521P
|
13521P
13521-15010 Pulley, Crankshaft Timing[02.1987 - 08.1988] 4ALC..AE82 |
13521-15010 |
from US $18.56 |
||
|
13566A
|
13566A
13566-15010 Guide, Timing Belt[09.1986 - 08.1988] 4A#..AE82 |
13566-15010 |
from US $5.44 |
||
