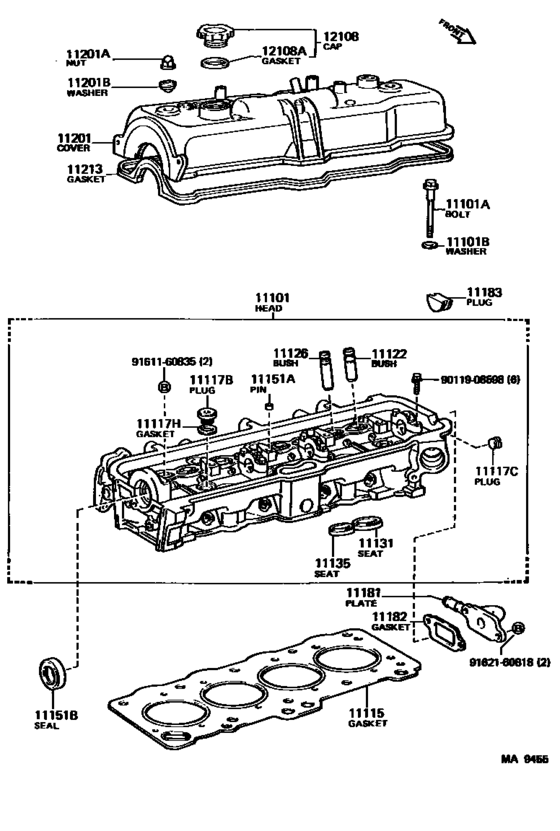

Cylinder Head ([02.1987 - ] (8702- )4ALC) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- D
- ENGINE
- 4ALC
- TRANSMISSION
- ATM
- Model
- COROLLA FX
- From
- 02.1987
- To
- 08.1988
- Vehicle Model
- Corolla FX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-15080 Head Sub-Assy, CylinderCYLINDER [02.1987 - 08.1988] 4ALC..AE82 |
11101-15080 |
US $1,014.83 |
||
|
11101A
|
11101A
90109-10025 Bolt(For Cylinder Head Set)[02.1987 - 08.1988] 4ALC..AE82 |
90109-10025 |
from US $4.41 |
||
|
11101B
|
11101B
90201-10344 Washer, Plate(For Cylinder Head Set)[09.1986 - 08.1988] 4A#..AE82 |
90201-10344 |
US $1.76 |
||
|
11115
|
11115
11115-01030 Gasket, Cylinder HeadCYLINDER HEAD [02.1987 - 08.1988] 4ALC..AE82 |
11115-01030 |
US $75.71 |
||
|
11117B
|
11117B
90341-20002 Plug, W/head Taper Screw, No.1[02.1987 - 08.1988] 4ALC..AE82 |
90341-20002 |
from US $2.88 |
||
|
11117C
|
11117C
90344-54002
Plug, W/head Taper Screw, No.3
[02.1987 - 08.1988] 4ALC..AE82 |
90344-54002 |
— | ||
|
11117H
|
11117H
90430-20004 Gasket(For Cylinder Head Screw Plug)[02.1987 - 08.1988] 4ALC..AE82 |
90430-20004 |
from US $0.99 |
||
|
11122
|
11122
11122-15020 Bush, Intake Valve Guide[02.1987 - 08.1988] 4ALC..AE82 STD,STD |
11122-15020 |
US $12.23 |
||
|
11122
|
11122
11123-15020 Bush, Intake Valve Guide[02.1987 - 08.1988] 4ALC..AE82 O/S 0.05,O/S 0.05 |
11123-15020 |
US $12.23 |
||
|
11126
|
11126
11126-15020 Bush, Intake Valve Guide[02.1987 - 08.1988] 4ALC..AE82 STD,STD |
11126-15020 |
US $12.58 |
||
|
11126
|
11126
11127-15020 Bush, Intake Valve Guide[02.1987 - 08.1988] 4ALC..AE82 O/S 0.05,O/S 0.05 |
11127-15020 |
US $11.94 |
||
|
11131
|
11131
11131-15020 Seat, Intake Valve[02.1987 - 08.1988] 4ALC..AE82 STD,STD |
11131-15020 |
US $13.25 |
||
|
11131
|
11131
11132-15020 Seat, Intake Valve[02.1987 - 08.1988] 4ALC..AE82 O/S 0.03,O/S 0.03 |
11132-15020 |
US $13.40 |
||
|
11135
|
11135
11135-15020 Seat, Exhaust Valve[02.1987 - 08.1988] 4ALC..AE82 STD,STD |
11135-15020 |
US $34.65 |
||
| replacement | |||||
|
11135
|
11135
11135-15021 Seat, Exhaust Valve[02.1987 - 08.1988] 4ALC..AE82 STD,STD |
11135-15021 |
US $17.33 |
||
|
11135
|
11135
11135-15021 Seat, Exhaust Valve[09.1987 - 08.1988] 4ALC..AE82 STD,STD |
11135-15021 |
US $17.33 |
||
|
11135
|
11135
11136-15020 Seat, Exhaust Valve[02.1987 - 08.1988] 4ALC..AE82 O/S 0.03,O/S 0.03 |
11136-15020 |
US $19.36 |
||
| replacement | |||||
|
11135
|
11135
11136-15021 Seat, Exhaust Valve[02.1987 - 08.1988] 4ALC..AE82 O/S 0.03,O/S 0.03 |
11136-15021 |
US $17.33 |
||
|
11151A
|
11151A
90253-11021 Pin, Ring[02.1987 - 08.1988] 4ALC..AE82 L=8,OD=11 |
90253-11021 |
from US $1.46 |
||
|
11151B
|
11151B
90311-35013
Seal, Oil(For Camshaft Setting)
[02.1987 - 08.1988] 4ALC..AE82 |
90311-35013 |
— | ||
| replacement | |||||
|
11151B
|
11151B
90311-35040 Seal, Oil(For Timing Chain Or Belt Cover)[02.1987 - 08.1988] 4ALC..AE82 |
90311-35040 |
from US $5.60 |
||
|
11181
|
11181
11181-15050 Plate, Cylinder Head, RearCYLINDER HEAD, REAR [02.1987 - 08.1988] 4ALC..AE82 |
11181-15050 |
US $22.71 |
||
|
11182
|
11182
11182-15011
Gasket, Cylinder Head Rear Plate
[02.1987 - 08.1988] 4ALC..AE82 |
11182-15011 |
— | ||
| replacement | |||||
|
11182
|
11182
11182-15012
Gasket, Cylinder Head Rear Plate
[02.1987 - 08.1988] 4ALC..AE82 |
11182-15012 |
— | ||
|
11183
|
11183
11183-15010 Plug, Semicircular[02.1987 - 08.1988] 4ALC..AE82 |
11183-15010 |
US $8.56 |
||
|
11201
|
11201
11210-15040 Cover Sub-Assy, Cylinder Head[02.1987 - 08.1988] 4ALC..AE82 |
11210-15040 |
US $183.46 |
||
|
11201A
|
11201A
90176-08007 Nut, Cap(For Cylinder Head Cover)[02.1987 - 08.1988] 4ALC..AE82 |
90176-08007 |
from US $1.52 |
||
|
11201B
|
11201B
90210-09001
Washer, Seal(For Cylinder Head Cover)
[02.1987 - 08.1988] 4ALC..AE82 |
90210-09001 |
— | ||
| replacement | |||||
|
11201B
|
11201B
90210-09019 Washer, Seal(For Cylinder Head Cover)[02.1987 - 08.1988] 4ALC..AE82 |
90210-09019 |
from US $1.29 |
||
|
11213
|
11213
11213-15040 Gasket, Cylinder Head Cover[02.1987 - 08.1988] 4ALC..AE82 |
11213-15040 |
US $29.85 |
||
|
12108
|
12108
12180-13030
Cap Sub-Assy, Oil Filler
[09.1986 - 05.1987] 4A#..AE82 |
12180-13030 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[09.1986 - 05.1987] 4A#..AE82 |
12180-55010 |
from US $10.08 |
||
|
12108
|
12108
12180-62010
Cap Sub-Assy, Oil Filler
[05.1987 - 08.1988] 4ALC..AE82 |
12180-62010 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-65011 Cap Sub-Assy, Oil Filler[05.1987 - 08.1988] 4ALC..AE82 |
12180-65011 |
from US $14.20 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[09.1986 - 08.1988] 4A#..AE82 |
90430-37140 |
from US $1.23 |
||
|
9011908598
|
9011908598
90119-08598 New Genuine Part |
90119-08598 |
US $2.33 |
||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.44 |
||
|
9162160818
|
9162160818
91621-60818
Bolt(For Automatic Transmission Case Protector)
|
91621-60818 |
— | ||
| replacement | |||||
|
9162160818
|
9162160818
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.11 |
||
