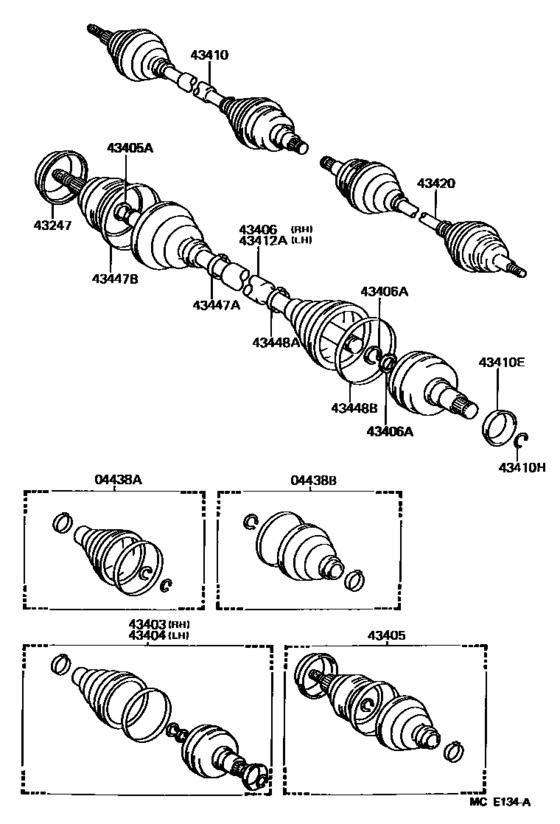

Front Drive Shaft ([02.1987 - ] (8702- )D) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- D
- ENGINE
- 4ALC
- TRANSMISSION
- ATM
- Model
- COROLLA FX
- From
- 02.1987
- To
- 08.1988
- Vehicle Model
- Corolla FX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438A
|
04438A
04438-01010
Boot Kit, Front Drive Shaft Inboard Joint
[02.1987 - 08.1988] AE82..D |
04438-01010 |
— | ||
|
04438B
|
04438B
04438-01020
Boot Kit, Front Drive Shaft Outboard Joint
[02.1987 - 08.1988] AE82..D |
04438-01020 |
— | ||
|
43247
|
43247
43247-01010
Deflector, Front Wheel Bearing Dust, No.2
[02.1987 - 08.1988] AE82..D |
43247-01010 |
— | ||
| replacement | |||||
|
43247
|
43247
43247-02030
Deflector, Front Wheel Bearing Dust, Rh No.2
[02.1987 - 08.1988] AE82..D |
43247-02030 |
— | ||
|
43403
|
43403
43047-09010
Joint Set, Front Axle Inboard, Rh
[02.1987 - 08.1988] AE82..D |
43047-09010 |
— | ||
| replacement | |||||
|
43403
|
43403
43047-09020
Joint Sub-Assy, Front Axle Inboard, Rh
[02.1987 - 08.1988] AE82..D |
43047-09020 |
— | ||
|
43404
|
43404
43048-09010
Joint Set, Front Axle Inboard, Lh
[02.1987 - 08.1988] AE82..D |
43048-09010 |
— | ||
| replacement | |||||
|
43404
|
43404
43048-09020
Joint Sub-Assy, Front Axle Inboard, Lh
[02.1987 - 08.1988] AE82..D |
43048-09020 |
— | ||
|
43405
|
43405
43405-09010
Shaft Sub-Assy, Front Axle Outer
[02.1987 - 08.1988] AE82..D |
43405-09010 |
— | ||
|
43405A
|
43405A
90080-52004 Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)[02.1987 - 08.1988] AE82..D |
90080-52004 |
US $2.33 |
||
|
43406
|
43406
43406-01010
Shaft Sub-Assy, Front Axle Pipe
[02.1987 - 08.1988] AE82..D |
43406-01010 |
— | ||
|
43406A
|
43406A
90080-52005
Ring,shaft Snap (For Front Axle Pipe Shaft)
[02.1987 - 08.1988] AE82..D |
90080-52005 |
— | ||
|
43410
|
43410
43410-01010
Shaft Assy, Front Drive, Rh
[02.1987 - 08.1988] AE82..D |
43410-01010 |
— | ||
| replacement | |||||
|
43410
|
43410
43410-01030
Shaft Assy, Front Drive, Rh
[02.1987 - 08.1988] AE82..D |
43410-01030 |
— | ||
|
43410E
|
43410E
41336-01010
Cover, Front Drive Shaft Dust, Rh
[02.1987 - 08.1988] AE82..D |
41336-01010 |
— | ||
|
43410H
|
43410H
90080-52003
Ring, Hole Snap (For Front Drive Shaft)
[02.1987 - 08.1988] AE82..D |
90080-52003 |
— | ||
|
43412A
|
43412A
43412-01010
Shaft, Front Axle, Lh
[02.1987 - 08.1988] AE82..D |
43412-01010 |
— | ||
|
43420
|
43420
43420-01010
Shaft Assy, Front Drive, Lh
[02.1987 - 08.1988] AE82..D |
43420-01010 |
— | ||
| replacement | |||||
|
43420
|
43420
43420-01030
Shaft Assy, Front Drive, Lh
[02.1987 - 08.1988] AE82..D |
43420-01030 |
— | ||
|
43447A
|
43447A
90080-46032
Clamp, No.1 (For Front Axle Outboard Joint Boot Setting)
[02.1987 - 08.1988] AE82..D |
90080-46032 |
— | ||
| replacement | |||||
|
43447A
|
43447A
90080-46051
Clamp, No.1 (For Front Axle Outboard Joint Boot Setting)
[02.1987 - 08.1988] AE82..D |
90080-46051 |
— | ||
|
43447B
|
43447B
90080-46031
Clamp, No.2 (For Front Axle Outboard Joint Boot Setting)
[02.1987 - 08.1988] AE82..D |
90080-46031 |
— | ||
| replacement | |||||
|
43447B
|
43447B
90080-46049
Clamp, No.2 (For Front Axle Outboard Joint Boot Setting)
[02.1987 - 08.1988] AE82..D |
90080-46049 |
— | ||
|
43448A
|
43448A
90080-46032
Clamp, No.1 (For Front Axle Outboard Joint Boot Setting)
[02.1987 - 08.1988] AE82..D |
90080-46032 |
— | ||
| replacement | |||||
|
43448A
|
43448A
90080-46051
Clamp, No.1 (For Front Axle Outboard Joint Boot Setting)
[02.1987 - 08.1988] AE82..D |
90080-46051 |
— | ||
|
43448B
|
43448B
90080-46031
Clamp, No.2 (For Front Axle Outboard Joint Boot Setting)
[02.1987 - 08.1988] AE82..D |
90080-46031 |
— | ||
| replacement | |||||
|
43448B
|
43448B
90080-46049
Clamp, No.2 (For Front Axle Outboard Joint Boot Setting)
[02.1987 - 08.1988] AE82..D |
90080-46049 |
— | ||
