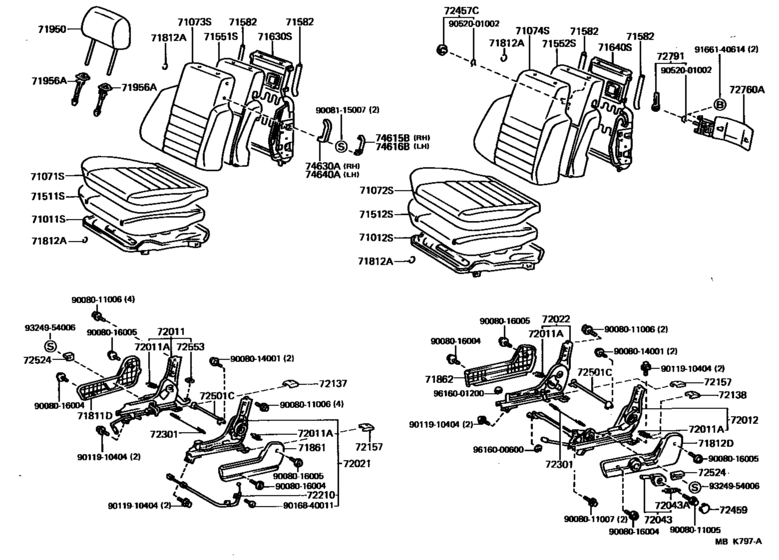

Front Seat & Seat Track ([11.1987 - 02.1988] (8609- )GTS ; (8711-8802)D) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- D
- ENGINE
- 4ALC
- TRANSMISSION
- ATM
- Model
- COROLLA FX
- From
- 02.1987
- To
- 08.1988
- Vehicle Model
- Corolla FX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71011S
|
71011S
71011-12190 Frame Sub-Assy, Front Seat Cushion, Rh[09.1986 - 08.1988] AE82 |
71011-12190 |
US $149.97 |
||
|
71012S
|
71012S
71011-12190 Frame Sub-Assy, Front Seat Cushion, Rh[09.1986 - 08.1988] AE82..D,Q |
71011-12190 |
US $149.97 |
||
|
71012S
|
71012S
71011-12200
Frame Sub-Assy, Front Seat Cushion, Rh
[11.1987 - 02.1988] AE82..D W/SPORTS SEAT |
71011-12200 |
— | ||
|
71071S
|
71071S
71071-02010-J7
Cover, Front Seat Cushion, Rh(For Separate Type)
[11.1987 - 02.1988] AE82..D W/SEMI SPORTS SEAT,DARK BLUE,DARK BLUE |
71071-02010-J7 |
— | ||
|
71071S
|
71071S
71071-02010-R7
Cover, Front Seat Cushion, Rh(For Separate Type)
[11.1987 - 02.1988] AE82..D W/SEMI SPORTS SEAT,CHARCOAL,CHARCOAL |
71071-02010-R7 |
— | ||
|
71071S
|
71071S
71071-02020-R3
Cover, Front Seat Cushion, Rh(For Separate Type)
[11.1987 - 02.1988] AE82..D W/SPORTS SEAT,CHARCOAL,CHARCOAL |
71071-02020-R3 |
— | ||
|
71071S
|
71071S
71071-02020-T0
Cover, Front Seat Cushion, Rh(For Separate Type)
[11.1987 - 02.1988] AE82..D W/SPORTS SEAT,DARK BLUE,DARK BLUE |
71071-02020-T0 |
— | ||
|
71071S
|
71071S
71071-02030-E6
Cover, Front Seat Cushion, Rh(For Separate Type)
[02.1987 - 06.1987] AE82..D DARK BLUE,DARK BLUE |
71071-02030-E6 |
— | ||
|
71071S
|
71071S
71071-02030-P6
Cover, Front Seat Cushion, Rh(For Separate Type)
[02.1987 - 06.1987] AE82..D CHARCOAL,CHARCOAL |
71071-02030-P6 |
— | ||
|
71071S
|
71071S
71071-02031-E6
Cover, Front Seat Cushion, Rh(For Separate Type)
[06.1987 - 08.1988] AE82..D DARK BLUE,DARK BLUE |
71071-02031-E6 |
— | ||
|
71071S
|
71071S
71071-02031-P6
Cover, Front Seat Cushion, Rh(For Separate Type)
[06.1987 - 08.1988] AE82..D CHARCOAL,CHACOAL |
71071-02031-P6 |
— | ||
|
71071S
|
71071S
71071-02040-E8
Cover, Front Seat Cushion, Rh(For Separate Type)
[02.1987 - 08.1988] AE82..D LE PACKAGE,DARK BLUE,DARK BLUE |
71071-02040-E8 |
— | ||
|
71071S
|
71071S
71071-02040-P1
Cover, Front Seat Cushion, Rh(For Separate Type)
[02.1987 - 08.1988] AE82..D LE PACKAGE,CHARCOAL,CHARCOAL |
71071-02040-P1 |
— | ||
|
71072S
|
71072S
71071-02010-J7
Cover, Front Seat Cushion, Rh(For Separate Type)
[11.1987 - 02.1988] AE82..D W/SEMI SPORTS SEAT,DARK BLUE,DARK BLUE |
71071-02010-J7 |
— | ||
|
71072S
|
71072S
71071-02010-R7
Cover, Front Seat Cushion, Rh(For Separate Type)
[11.1987 - 02.1988] AE82..D W/SEMI SPORTS SEAT,CHARCOAL,CHARCOAL |
71071-02010-R7 |
— | ||
|
71072S
|
71072S
71071-02030-E6
Cover, Front Seat Cushion, Rh(For Separate Type)
[02.1987 - 06.1987] AE82..D DARK BLUE,DARK BLUE |
71071-02030-E6 |
— | ||
|
71072S
|
71072S
71071-02030-P6
Cover, Front Seat Cushion, Rh(For Separate Type)
[02.1987 - 06.1987] AE82..D CHARCOAL,CHARCOAL |
71071-02030-P6 |
— | ||
|
71072S
|
71072S
71071-02031-E6
Cover, Front Seat Cushion, Rh(For Separate Type)
[06.1987 - 08.1988] AE82..D DARK BLUE,DARK BLUE |
71071-02031-E6 |
— | ||
|
71072S
|
71072S
71071-02031-P6
Cover, Front Seat Cushion, Rh(For Separate Type)
[06.1987 - 08.1988] AE82..D CHARCOAL,CHACOAL |
71071-02031-P6 |
— | ||
|
71072S
|
71072S
71071-02040-E8
Cover, Front Seat Cushion, Rh(For Separate Type)
[02.1987 - 08.1988] AE82..D LE PACKAGE,DARK BLUE,DARK BLUE |
71071-02040-E8 |
— | ||
|
71072S
|
71072S
71071-02040-P1
Cover, Front Seat Cushion, Rh(For Separate Type)
[02.1987 - 08.1988] AE82..D LE PACKAGE,CHARCOAL,CHARCOAL |
71071-02040-P1 |
— | ||
|
71072S
|
71072S
71072-02010-R3
Cover, Front Seat Cushion, Lh(For Separate Type)
[11.1987 - 02.1988] AE82..D W/SPORTS SEAT,CHARCOAL,CHARCOAL |
71072-02010-R3 |
— | ||
|
71072S
|
71072S
71072-02010-T0
Cover, Front Seat Cushion, Lh(For Separate Type)
[11.1987 - 02.1988] AE82..D W/SPORTS SEAT,DARK BLUE,DARK BLUE |
71072-02010-T0 |
— | ||
|
71073S
|
71073S
71073-02010-J7
Cover, Front Seat Back, Rh(For Separate Type)
[11.1987 - 02.1988] AE82..D W/SEMI SPORTS SEAT,DARK BLUE,DARK BLUE |
71073-02010-J7 |
— | ||
|
71073S
|
71073S
71073-02010-R7
Cover, Front Seat Back, Rh(For Separate Type)
[11.1987 - 02.1988] AE82..D W/SEMI SPORTS SEAT,CHARCOAL,CHARCOAL |
71073-02010-R7 |
— | ||
|
71073S
|
71073S
71073-02020-R3
Cover, Front Seat Back, Rh(For Separate Type)
[11.1987 - 02.1988] AE82..D W/SPORTS SEAT,CHARCOAL,CHARCOAL |
71073-02020-R3 |
— | ||
|
71073S
|
71073S
71073-02020-T0
Cover, Front Seat Back, Rh(For Separate Type)
[11.1987 - 02.1988] AE82..D W/SPORTS SEAT,DARK BLUE,DARK BLUE |
71073-02020-T0 |
— | ||
|
71073S
|
71073S
71073-02030-E6
Cover, Front Seat Back, Rh(For Separate Type)
[02.1987 - 06.1987] AE82..D DARK BLUE,DARK BLUE |
71073-02030-E6 |
— | ||
|
71073S
|
71073S
71073-02030-P6
Cover, Front Seat Back, Rh(For Separate Type)
[02.1987 - 06.1987] AE82..D CHARCOAL,CHARCOAL |
71073-02030-P6 |
— | ||
|
71073S
|
71073S
71073-02031-E6
Cover, Front Seat Back, Rh(For Separate Type)
[06.1987 - 08.1988] AE82..D DARK BLUE,DARK BLUE |
71073-02031-E6 |
— | ||
|
71073S
|
71073S
71073-02031-P6
Cover, Front Seat Back, Rh(For Separate Type)
[06.1987 - 08.1988] AE82..D CHARCOAL,CHACOAL |
71073-02031-P6 |
— | ||
|
71073S
|
71073S
71073-02040-E8
Cover, Front Seat Back, Rh(For Separate Type)
[02.1987 - 08.1988] AE82..D LE PACKAGE,DARK BLUE,DARK BLUE |
71073-02040-E8 |
— | ||
|
71073S
|
71073S
71073-02040-P1
Cover, Front Seat Back, Rh(For Separate Type)
[02.1987 - 08.1988] AE82..D LE PACKAGE,CHARCOAL,CHARCOAL |
71073-02040-P1 |
— | ||
|
71074S
|
71074S
71073-02010-J7
Cover, Front Seat Back, Rh(For Separate Type)
[11.1987 - 02.1988] AE82..D W/SEMI SPORTS SEAT,DARK BLUE,DARK BLUE |
71073-02010-J7 |
— | ||
|
71074S
|
71074S
71073-02010-R7
Cover, Front Seat Back, Rh(For Separate Type)
[11.1987 - 02.1988] AE82..D W/SEMI SPORTS SEAT,CHARCOAL,CHARCOAL |
71073-02010-R7 |
— | ||
|
71074S
|
71074S
71074-02020-R3
Cover, Front Seat Back, Lh(For Separate Type)
[11.1987 - 02.1988] AE82..D W/SPORTS SEAT,CHARCOAL,CHARCOAL |
71074-02020-R3 |
— | ||
|
71074S
|
71074S
71074-02020-T0
Cover, Front Seat Back, Lh(For Separate Type)
[11.1987 - 02.1988] AE82..D W/SPORTS SEAT,DARK BLUE,DARK BLUE |
71074-02020-T0 |
— | ||
|
71074S
|
71074S
71074-02030-E6
Cover, Front Seat Back, Lh(For Separate Type)
[02.1987 - 06.1987] AE82..D DARK BLUE,DARK BLUE |
71074-02030-E6 |
— | ||
|
71074S
|
71074S
71074-02030-P6
Cover, Front Seat Back, Lh(For Separate Type)
[02.1987 - 06.1987] AE82..D CHARCOAL,CHARCOAL |
71074-02030-P6 |
— | ||
|
71074S
|
71074S
71074-02031-E6
Cover, Front Seat Back, Lh(For Separate Type)
[06.1987 - 08.1988] AE82..D DARK BLUE,DARK BLUE |
71074-02031-E6 |
— | ||
|
71074S
|
71074S
71074-02031-P6
Cover, Front Seat Back, Lh(For Separate Type)
[06.1987 - 08.1988] AE82..D CHARCOAL,CHACOAL |
71074-02031-P6 |
— | ||
|
71074S
|
71074S
71074-02040-E8
Cover, Front Seat Back, Lh(For Separate Type)
[02.1987 - 08.1988] AE82..D LE PACKAGE,DARK BLUE,DARK BLUE |
71074-02040-E8 |
— | ||
|
71074S
|
71074S
71074-02040-P1
Cover, Front Seat Back, Lh(For Separate Type)
[02.1987 - 08.1988] AE82..D LE PACKAGE,CHARCOAL,CHARCOAL |
71074-02040-P1 |
— | ||
|
71511S
|
71511S
71511-01010
Pad, Front Seat Cushion, Rh(For Separate Type)
[09.1986 - 08.1988] AE82 |
71511-01010 |
— | ||
|
71512S
|
71512S
71511-01010
Pad, Front Seat Cushion, Rh(For Separate Type)
[09.1986 - 08.1988] AE82 |
71511-01010 |
— | ||
|
71551S
|
71551S
71551-01010
Pad, Front Seat Back, Rh(For Separate Type)
[02.1987 - 08.1988] AE82..D |
71551-01010 |
— | ||
|
71551S
|
71551S
71551-02010
Pad, Front Seat Back, Rh(For Separate Type)
[11.1987 - 02.1988] AE82..D W/SEMI SPORTS SEAT&SPORTS SEAT |
71551-02010 |
— | ||
|
71552S
|
71552S
71551-01010
Pad, Front Seat Back, Rh(For Separate Type)
[02.1987 - 08.1988] AE82..D |
71551-01010 |
— | ||
|
71552S
|
71552S
71551-02010
Pad, Front Seat Back, Rh(For Separate Type)
[11.1987 - 02.1988] AE82..D W/SEMI SPORTS SEAT&SPORTS SEAT |
71551-02010 |
— | ||
|
71582
|
71582
71582-02010
Pad, Front Seat Back Corner, B
[11.1987 - 02.1988] AE82..D W/SEMI SPORTS SEAT&SPORTS SEAT |
71582-02010 |
— | ||
|
71630S
|
71630S
71630-01010
Spring Assy, Front Seat Back, Rh(For Separate Type)
[02.1987 - 08.1988] AE82..D |
71630-01010 |
— | ||
|
71630S
|
71630S
71640-16020
Spring Assy, Front Seat Back, Lh(For Separate Type)
[11.1987 - 02.1988] AE82..D W/SEMI SPORTS SEAT&SPORTS SEAT |
71640-16020 |
— | ||
|
71640S
|
71640S
71630-01010
Spring Assy, Front Seat Back, Rh(For Separate Type)
[02.1987 - 08.1988] AE82..D |
71630-01010 |
— | ||
|
71640S
|
71640S
71640-12290
Spring Assy, Front Seat Back, Lh(For Separate Type)
[11.1987 - 02.1988] AE82..D W/SPORTS SEAT |
71640-12290 |
— | ||
|
71640S
|
71640S
71640-16020
Spring Assy, Front Seat Back, Lh(For Separate Type)
[11.1987 - 02.1988] AE82..D W/SEMI SPORTS SEAT |
71640-16020 |
— | ||
|
71811D
|
71811D
71811-02010-J9
Shield, Front Seat Cushion, Rh
[09.1986 - 08.1988] AE82 DARK BLUE,DARK BLUE |
71811-02010-J9 |
— | ||
|
71811D
|
71811D
71811-02010-P8
Shield, Front Seat Cushion, Rh
[09.1986 - 08.1988] AE82 CHARCOAL,CHARCOAL |
71811-02010-P8 |
— | ||
|
71812A
|
71812A
90080-46007
Ring, Hog, Small (For Front Seat)
[09.1986 - 08.1988] AE82 |
90080-46007 |
— | ||
|
71812D
|
71812D
71812-01010-J9
Shield, Front Seat Cushion, Lh
[09.1986 - 08.1988] AE82..D,Q DARK BLUE,DARK BLUE |
71812-01010-J9 |
— | ||
|
71812D
|
71812D
71812-01010-P8
Shield, Front Seat Cushion, Lh
[09.1986 - 08.1988] AE82..D,Q CHARCOAL,CHARCOAL |
71812-01010-P8 |
— | ||
|
71812D
|
71812D
71812-01020-J9
Shield, Front Seat Cushion, Lh
[11.1987 - 02.1988] AE82..D W/SPORTS SEAT,DARK BLUE,DARK BLUE |
71812-01020-J9 |
— | ||
|
71812D
|
71812D
71812-01020-P8
Shield, Front Seat Cushion, Lh
[11.1987 - 02.1988] AE82..D W/SPORTS SEAT,CHARCOAL,CHARCOAL |
71812-01020-P8 |
— | ||
|
71861
|
71861
71861-02010-J9
Shield, Front Seat Cushion, Inner Rh
[09.1986 - 08.1988] AE82 DARK BLUE,DARK BLUE |
71861-02010-J9 |
— | ||
|
71861
|
71861
71861-02010-P8
Shield, Front Seat Cushion, Inner Rh
[09.1986 - 08.1988] AE82 CHARCOAL,CHARCOAL |
71861-02010-P8 |
— | ||
|
71862
|
71862
71862-01010-J9
Shield, Front Seat Cushion, Inner Lh
[09.1986 - 08.1988] AE82..D,Q DARK BLUE,DARK BLUE |
71862-01010-J9 |
— | ||
|
71862
|
71862
71862-01010-P8
Shield, Front Seat Cushion, Inner Lh
[09.1986 - 08.1988] AE82..D,Q CHARCOAL,CHARCOAL |
71862-01010-P8 |
— | ||
|
71862
|
71862
71862-01020-J9
Shield, Front Seat Cushion, Inner Lh
[11.1987 - 02.1988] AE82..D W/SPORTS SEAT,DARK BLUE,DARK BLUE |
71862-01020-J9 |
— | ||
|
71862
|
71862
71862-01020-P8
Shield, Front Seat Cushion, Inner Lh
[11.1987 - 02.1988] AE82..D W/SPORTS SEAT,CHARCOAL,CHARCOAL |
71862-01020-P8 |
— | ||
|
71950
|
71950
71910-02010-R4
Headrest Assy, Front Seat
[11.1987 - 02.1988] AE82..D W/SPORTS SEAT,CHARCOAL,CHARCOAL |
71910-02010-R4 |
— | ||
|
71950
|
71950
71910-02010-T1
Headrest Assy, Front Seat
[11.1987 - 02.1988] AE82..D W/SPORTS SEAT,DARK BLUE,DARK BLUE |
71910-02010-T1 |
— | ||
|
71950
|
71950
71910-02020-R4
Headrest Assy, Front Seat
[11.1987 - 02.1988] AE82..D W/SEMI SPORTS SEAT,CHARCOAL,CHARCOAL |
71910-02020-R4 |
— | ||
|
71950
|
71950
71910-02020-T1
Headrest Assy, Front Seat
[11.1987 - 02.1988] AE82..D W/SEMI SPORTS SEAT,DARK BLUE,DARK BLUE |
71910-02020-T1 |
— | ||
|
71950
|
71950
71910-02040-A0
Headrest Assy, Front Seat
[02.1987 - 08.1988] AE82..D CHARCOAL,CHARCOAL |
71910-02040-A0 |
— | ||
|
71950
|
71950
71910-02040-K0
Headrest Assy, Front Seat
[02.1987 - 08.1988] AE82..D DARK BLUE,DARK BLUE |
71910-02040-K0 |
— | ||
|
71950
|
71950
71910-02050-E8
Headrest Assy, Front Seat
[02.1987 - 08.1988] AE82..D LE PACKAGE,DARK BLUE,DARK BLUE |
71910-02050-E8 |
— | ||
|
71950
|
71950
71910-02050-P1
Headrest Assy, Front Seat
[02.1987 - 08.1988] AE82..D LE PACKAGE,CHARCOAL,CHARCOAL |
71910-02050-P1 |
— | ||
|
71956A
|
71956A
71930-01010-J9
Support, Front Seat Headrest
[09.1986 - 08.1988] AE82 W/LOCK,DARK BLUE,DARK BLUE |
71930-01010-J9 |
— | ||
|
71956A
|
71956A
71930-01010-P8
Support, Front Seat Headrest
[09.1986 - 08.1988] AE82 W/LOCK,CHARCOAL,CHARCOAL |
71930-01010-P8 |
— | ||
|
71956A
|
71956A
71931-01010-J9
Support, Front Seat Headrest
[09.1986 - 08.1988] AE82 W/O LOCK,DARK BLUE,DARK BLUE |
71931-01010-J9 |
— | ||
|
71956A
|
71956A
71931-01010-P8
Support, Front Seat Headrest
[09.1986 - 08.1988] AE82 W/O LOCK,CHARCOAL,CHARCOAL |
71931-01010-P8 |
— | ||
|
72011
|
72011
72011-02010
Adjuster Sub-Assy, Front Seat, Outer Rh
[09.1986 - 08.1988] AE82 |
72011-02010 |
— | ||
|
72011A
|
72011A
90506-14039 Spring, Tension (For Front Seat Adjuster Outer)[09.1986 - 08.1988] AE82 |
90506-14039 |
US $2.77 |
||
|
72012
|
72012
72012-12030 Adjuster Sub-Assy, Front Seat, Outer LhFRONT SEAT, OUTER LH [09.1986 - 08.1988] AE82..D,Q |
72012-12030 |
US $256.26 |
||
|
72012
|
72012
72012-12060 Adjuster Sub-Assy, Front Seat, Outer LhFRONT SEAT, OUTER LH [12.1987 - 02.1988] AE82..D SPORTS SEAT |
72012-12060 |
US $409.14 |
||
|
72021
|
72021
72021-02010
Adjuster Sub-Assy, Front Seat, Inner Rh
[09.1986 - 08.1988] AE82 |
72021-02010 |
— | ||
|
72022
|
72022
72022-12030 Adjuster Sub-Assy, Front Seat, Inner LhFRONT SEAT, INNER LH [09.1986 - 08.1988] AE82..D,Q |
72022-12030 |
US $235.87 |
||
|
72022
|
72022
72022-12080 Adjuster Sub-Assy, Front Seat, Inner LhFRONT SEAT, INNER LH [12.1987 - 02.1988] AE82..D SPORTS SEAT |
72022-12080 |
US $256.26 |
||
|
72043
|
72043
72043-01010-J9
Lever Sub-Assy, Seat Lifter
[11.1987 - 02.1988] AE82..D W/SPORTS SEAT,DARK BLUE,DARK BLUE |
72043-01010-J9 |
— | ||
|
72043
|
72043
72043-01010-P8
Lever Sub-Assy, Seat Lifter
[11.1987 - 02.1988] AE82..D W/SPORTS SEAT,CHARCOAL,CHARCOAL |
72043-01010-P8 |
— | ||
|
72043A
|
72043A
90506-04001 Spring, Tension (For Seat Lifter Lever)[11.1987 - 02.1988] AE82..D W/SPORTS SEAT |
90506-04001 |
US $2.18 |
||
|
72137
|
72137
72137-01010-J9
Cover, Seat Track, Outer Rh
[09.1986 - 08.1988] AE82 DARK BLUE,DARK BLUE |
72137-01010-J9 |
— | ||
| replacement | |||||
|
72137
|
72137
72137-01010-P7
Cover, Seat Track, Outer Rh
[09.1986 - 08.1988] AE82 DARK BLUE,DARK BLUE |
72137-01010-P7 |
— | ||
|
72137
|
72137
72137-01010-P8
Cover, Seat Track, Outer Rh
[09.1986 - 08.1988] AE82 CHARCOAL,CHARCOAL |
72137-01010-P8 |
— | ||
| replacement | |||||
|
72137
|
72137
72137-01010-P7
Cover, Seat Track, Outer Rh
[09.1986 - 08.1988] AE82 CHARCOAL,CHARCOAL |
72137-01010-P7 |
— | ||
|
72138
|
72138
72138-01010-J9
Cover, Seat Track, Outer Lh
[09.1986 - 08.1988] AE82 DARK BLUE,DARK BLUE |
72138-01010-J9 |
— | ||
| replacement | |||||
|
72138
|
72138
72138-01010-P7
Cover, Seat Track, Outer Lh
[09.1986 - 08.1988] AE82 DARK BLUE,DARK BLUE |
72138-01010-P7 |
— | ||
|
72138
|
72138
72138-01010-P8
Cover, Seat Track, Outer Lh
[09.1986 - 08.1988] AE82 CHARCOAL,CHARCOAL |
72138-01010-P8 |
— | ||
| replacement | |||||
|
72138
|
72138
72138-01010-P7
Cover, Seat Track, Outer Lh
[09.1986 - 08.1988] AE82 CHARCOAL,CHARCOAL |
72138-01010-P7 |
— | ||
|
72157
|
72157
72137-01010-J9
Cover, Seat Track, Outer Rh
[09.1986 - 08.1988] AE82 LH,DARK BLUE,DARK BLUE |
72137-01010-J9 |
— | ||
| replacement | |||||
|
72157
|
72157
72137-01010-P7
Cover, Seat Track, Outer Rh
[09.1986 - 08.1988] AE82 LH,DARK BLUE,DARK BLUE |
72137-01010-P7 |
— | ||
|
72157
|
72157
72137-01010-P8
Cover, Seat Track, Outer Rh
[09.1986 - 08.1988] AE82 LH,CHARCOAL,CHARCOAL |
72137-01010-P8 |
— | ||
| replacement | |||||
|
72157
|
72157
72137-01010-P7
Cover, Seat Track, Outer Rh
[09.1986 - 08.1988] AE82 LH,CHARCOAL,CHARCOAL |
72137-01010-P7 |
— | ||
|
72157
|
72157
72138-01010-J9
Cover, Seat Track, Outer Lh
[09.1986 - 08.1988] AE82 RH,DARK BLUE,DARK BLUE |
72138-01010-J9 |
— | ||
| replacement | |||||
|
72157
|
72157
72138-01010-P7
Cover, Seat Track, Outer Lh
[09.1986 - 08.1988] AE82 RH,DARK BLUE,DARK BLUE |
72138-01010-P7 |
— | ||
|
72157
|
72157
72138-01010-P8
Cover, Seat Track, Outer Lh
[09.1986 - 08.1988] AE82 RH,CHARCOAL,CHARCOAL |
72138-01010-P8 |
— | ||
| replacement | |||||
|
72157
|
72157
72138-01010-P7
Cover, Seat Track, Outer Lh
[09.1986 - 08.1988] AE82 RH,CHARCOAL,CHARCOAL |
72138-01010-P7 |
— | ||
|
72210
|
72210
72210-02010
Cable Assy, Seat Track Control
[09.1986 - 08.1988] AE82 |
72210-02010 |
— | ||
|
72301
|
72301
72301-12060 Wire Sub-Assy, Seat Track EqualizingSEAT TRACK EQUALIZING [09.1986 - 08.1988] AE82 |
72301-12060 |
US $4.22 |
||
|
72457C
|
72457C
72351-02010-J9
Knob, Side Support Adjuster
[11.1987 - 02.1988] AE82..D W/SPORTS SEAT,DARK BLUE,DARK BLUE |
72351-02010-J9 |
— | ||
|
72457C
|
72457C
72351-02010-P8
Knob, Side Support Adjuster
[11.1987 - 02.1988] AE82..D W/SPORTS SEAT,CHARCOAL,CHARCOAL |
72351-02010-P8 |
— | ||
|
72459
|
72459
72459-01010-J9
Cap, Vertical Seat Adjuster Knob
[11.1987 - 02.1988] AE82..D W/SPORTS SEAT,DARK BLUE,DARK BLUE |
72459-01010-J9 |
— | ||
|
72459
|
72459
72459-01010-P8
Cap, Vertical Seat Adjuster Knob
[11.1987 - 02.1988] AE82..D W/SPORTS SEAT,CHARCOAL,CHARCOAL |
72459-01010-P8 |
— | ||
|
72501C
|
72501C
72501-12030 Pipe Sub-Assy, Reclining ConnectingRECLINING CONNECTING [09.1986 - 08.1988] AE82 |
72501-12030 |
US $32.03 |
||
|
72524
|
72524
72525-01010-J9
Handle, Reclining Adjuster Release
[09.1986 - 08.1988] AE82 RH,DARK BLUE,DARK BLUE |
72525-01010-J9 |
— | ||
| replacement | |||||
|
72524
|
72524
72525-01010-P8
Handle, Reclining Adjuster Release
[09.1986 - 08.1988] AE82 RH,DARK BLUE,DARK BLUE |
72525-01010-P8 |
— | ||
|
72524
|
72524
72525-01010-P8
Handle, Reclining Adjuster Release
[09.1986 - 08.1988] AE82 RH,CHARCOAL,CHARCOAL |
72525-01010-P8 |
— | ||
|
72524
|
72524
72526-01010-J9
Handle, Reclining Adjuster Release
[09.1986 - 08.1988] AE82 LH,DARK BLUE,DARK BLUE |
72526-01010-J9 |
— | ||
| replacement | |||||
|
72524
|
72524
72526-12030-C0 Handle, Reclining Adjuster ReleaseRECLINING ADJUSTER RELEASE, LH [09.1986 - 08.1988] AE82 LH,DARK BLUE,DARK BLUE |
72526-12030-C0 |
US $14.88 |
||
|
72524
|
72524
72526-01010-P8
Handle, Reclining Adjuster Release
[09.1986 - 08.1988] AE82 LH,CHARCOAL,CHARCOAL |
72526-01010-P8 |
— | ||
| replacement | |||||
|
72524
|
72524
72526-12030-C0 Handle, Reclining Adjuster ReleaseRECLINING ADJUSTER RELEASE, LH [09.1986 - 08.1988] AE82 LH,CHARCOAL,CHARCOAL |
72526-12030-C0 |
US $14.88 |
||
|
72553
|
72553
72553-12030
Cover, Reclining Pedal
[09.1986 - 08.1988] AE82 |
72553-12030 |
— | ||
|
72760A
|
72760A
72760-12050
Adjuster Assy, Lumbar Support
[11.1987 - 02.1988] AE82..D W/SPORTS SEAT |
72760-12050 |
— | ||
|
72791
|
72791
72791-01010-J9
Lever, Lumbar Support
[11.1987 - 02.1988] AE82..D W/SPORTS SEAT,DARK BLUE,DARK BLUE |
72791-01010-J9 |
— | ||
|
72791
|
72791
72791-01010-P8
Lever, Lumbar Support
[11.1987 - 02.1988] AE82..D W/SPORTS SEAT,CHARCOAL,CHARCOAL |
72791-01010-P8 |
— | ||
|
74615B
|
74615B
74615-02010-J9
Escutcheon, Assist Grip, Rh
[11.1987 - 02.1988] AE82..D W/SEMI SPORTS&SPORTS,DARK BLUE,DARK BLUE |
74615-02010-J9 |
— | ||
|
74615B
|
74615B
74615-02010-P8
Escutcheon, Assist Grip, Rh
[11.1987 - 02.1988] AE82..D W/SEMI SPORTS&SPORTS,CHARCOAL,CHARCOAL |
74615-02010-P8 |
— | ||
|
74616B
|
74616B
74616-02010-J9
Escution, Assist Grip, Lh
[11.1987 - 02.1988] AE82..D W/SEMI SPORTS&SPORTS,DARK BLUE,DARK BLUE |
74616-02010-J9 |
— | ||
|
74616B
|
74616B
74616-02010-P8
Escution, Assist Grip, Lh
[11.1987 - 02.1988] AE82..D W/SEMI SPORTS&SPORTS,CHARCOAL,CHARCOAL |
74616-02010-P8 |
— | ||
|
74630A
|
74630A
74630-02010-J9
Grip Sub-Assy, Assist, Rh
[11.1987 - 02.1988] AE82..D W/SEMI SPORTS&SPORTS,DARK BLUE,DARK BLUE |
74630-02010-J9 |
— | ||
|
74630A
|
74630A
74630-02010-P8
Grip Sub-Assy, Assist, Rh
[11.1987 - 02.1988] AE82..D W/SEMI SPORTS&SPORTS,CHARCOAL,CHARCOAL |
74630-02010-P8 |
— | ||
|
74640A
|
74640A
74640-02010-J9
Grip Sub-Assy, Assist, Lh
[11.1987 - 02.1988] AE82..D W/SEMI SPORTS&SPORTS,DARK BLUE,DARK BLUE |
74640-02010-J9 |
— | ||
| replacement | |||||
|
74640A
|
74640A
74640-02010-C0 Grip Sub-Assy, Assist, Lh[11.1987 - 02.1988] AE82..D W/SEMI SPORTS&SPORTS,DARK BLUE,DARK BLUE |
74640-02010-C0 |
US $29.41 |
||
|
74640A
|
74640A
74640-02010-P8
Grip Sub-Assy, Assist, Lh
[11.1987 - 02.1988] AE82..D W/SEMI SPORTS&SPORTS,CHARCOAL,CHARCOAL |
74640-02010-P8 |
— | ||
| replacement | |||||
|
74640A
|
74640A
74640-02010-C0 Grip Sub-Assy, Assist, Lh[11.1987 - 02.1988] AE82..D W/SEMI SPORTS&SPORTS,CHARCOAL,CHARCOAL |
74640-02010-C0 |
US $29.41 |
||
|
9008011005
|
9008011005
90080-11005
New Genuine Part
|
90080-11005 |
— | ||
|
9008011006
|
9008011006
90080-11006
New Genuine Part
|
90080-11006 |
— | ||
|
9008011007
|
9008011007
90080-11007
New Genuine Part
|
90080-11007 |
— | ||
|
9008014001
|
9008014001
90080-14001
New Genuine Part
|
90080-14001 |
— | ||
|
9008016004
|
9008016004
90080-16004
New Genuine Part
|
90080-16004 |
— | ||
|
9008016005
|
9008016005
90080-16005
New Genuine Part
|
90080-16005 |
— | ||
|
9008115007
|
9008115007
90081-15007
New Genuine Part
|
90081-15007 |
— | ||
|
9011910404
|
9011910404
90119-10404 New Genuine Part |
90119-10404 |
US $3.20 |
||
|
9016840011
|
9016840011
90168-40011 SCREW |
90168-40011 |
US $1.22 |
||
|
9052001002
|
9052001002
90520-01002
Ring, Shaft Snap(For Vent Window Control)
|
90520-01002 |
— | ||
| replacement | |||||
|
9052001002
|
9052001002
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle) |
90520-01274 |
from US $1.11 |
||
|
9166140614
|
9166140614
91661-40614
New Genuine Part
|
91661-40614 |
— | ||
| replacement | |||||
|
9166140614
|
9166140614
91661-A0614 New Genuine Part |
91661-A0614 |
US $1.76 |
||
|
9324954006
|
9324954006
93249-54006 Screw |
93249-54006 |
US $1.76 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
|
9616001200
|
9616001200
96160-01200 Ring, E(For Clutch Release Cable) |
96160-01200 |
from US $1.56 |
||
