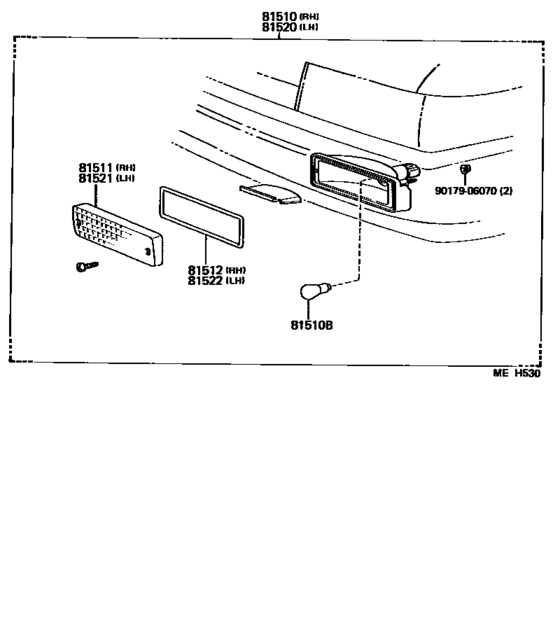

Front Turn Signal Lamp ([09.1986 - ] (8609- )) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- D
- ENGINE
- 4ALC
- TRANSMISSION
- ATM
- Model
- COROLLA FX
- From
- 02.1987
- To
- 08.1988
- Vehicle Model
- Corolla FX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81510
|
81510
81510-80028 Lamp Assy, Front Turn Signal, RhFRONT TURN SIGNAL, RH [09.1986 - 08.1988] AE82 |
81510-80028 |
US $61.88 |
||
|
81510B
|
81510B
99132-11270 Bulb, Fog Lamp[09.1986 - 08.1988] AE82 12V 27W,12V 27W |
99132-11270 |
US $3.36 |
||
|
81511
|
81511
81511-22221 Lens, Front Turn Signal Lamp, Rh[09.1986 - 08.1988] AE82 |
81511-22221 |
from US $19 |
||
|
81512
|
81512
81512-14140 Gasket, Front Turn Signal Lamp Lens[09.1986 - 08.1988] AE82 |
81512-14140 |
from US $4.80 |
||
|
81520
|
81520
81520-80028
Lamp Assy, Front Turn Signal, Lh
[09.1986 - 08.1988] AE82 |
81520-80028 |
— | ||
|
81521
|
81521
81521-22221 Lens, Front Turn Signal Lamp, Lh[09.1986 - 08.1988] AE82 |
81521-22221 |
from US $16.13 |
||
|
81522
|
81522
81512-14140 Gasket, Front Turn Signal Lamp Lens[09.1986 - 08.1988] AE82 |
81512-14140 |
from US $4.80 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
