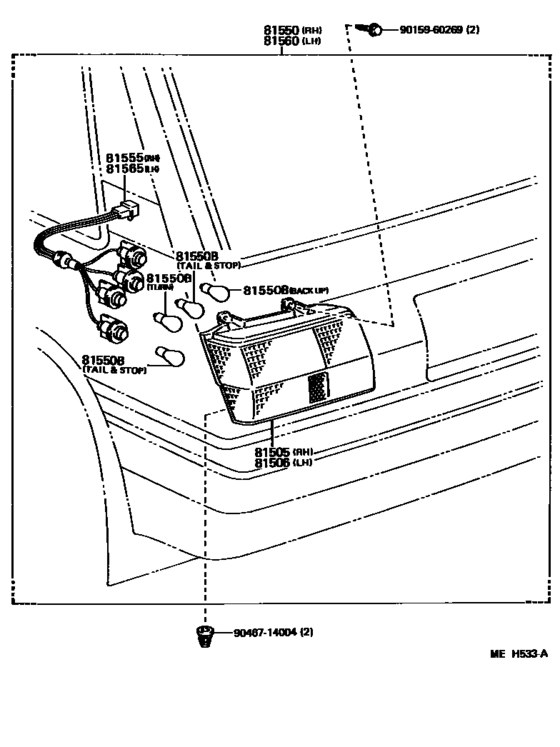

Rear Combination Lamp ([09.1986 - ] (8609- )) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- D
- ENGINE
- 4ALC
- TRANSMISSION
- ATM
- Model
- COROLLA FX
- From
- 02.1987
- To
- 08.1988
- Vehicle Model
- Corolla FX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81505
|
81505
81505-02010
Lamp Sub-Assy, Rear Combination, Rh
[09.1986 - 08.1988] AE82 |
81505-02010 |
— | ||
|
81506
|
81506
81506-02010
Lamp Sub-Assy, Rear Combination, Lh
[09.1986 - 08.1988] AE82 |
81506-02010 |
— | ||
|
81550
|
81550
81550-02010
Lamp Assy, Rear Combination, Rh
[09.1986 - 08.1988] AE82 |
81550-02010 |
— | ||
|
81550B
|
81550B
99132-11270 Bulb, Fog Lamp[09.1986 - 08.1988] AE82 12V 27W,12V 27W(TURN OR BACK UP) |
99132-11270 |
US $3.36 |
||
|
81550B
|
81550B
99132-21270 Bulb (For Front Turn Signal Lamp)[09.1986 - 08.1988] AE82 12V 27/8W,12V 27/8W(TAIL & STOP) |
99132-21270 |
US $4.32 |
||
|
81555
|
81555
81555-02010
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[09.1986 - 08.1988] AE82 |
81555-02010 |
— | ||
|
81560
|
81560
81560-02010
Lamp Assy, Rear Combination, Lh
[09.1986 - 08.1988] AE82 |
81560-02010 |
— | ||
|
81565
|
81565
81555-02010
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[01.1987 - 08.1988] AE82 |
81555-02010 |
— | ||
|
9015960269
|
9015960269
90159-60269 New Genuine Part |
90159-60269 |
US $1.60 |
||
| replacement | |||||
|
9015960269
|
9015960269
90159-60359 New Genuine Part |
90159-60359 |
US $2.08 |
||
|
9046714004
|
9046714004
90467-14004 CLIP |
90467-14004 |
from US $0.94 |
||
