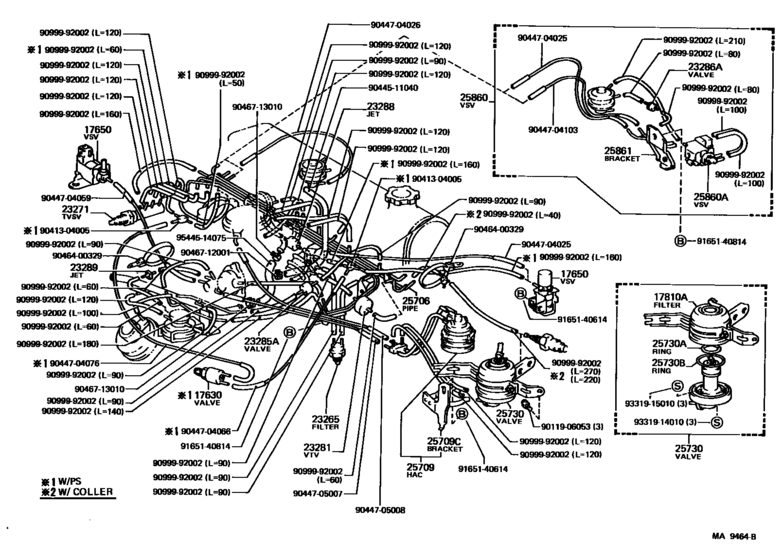

Vacuum Piping ([02.1987 - ] (8702- )4ALC) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- D
- ENGINE
- 4ALC
- TRANSMISSION
- ATM
- Model
- COROLLA FX
- From
- 02.1987
- To
- 08.1988
- Vehicle Model
- Corolla FX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17630
|
17630
17630-15030 Valve Assy, Air Control[02.1987 - 08.1988] 4ALC..AE82 W/PS |
17630-15030 |
US $189.28 |
||
|
17650
|
17650
89570-12301 Valve Assy, Vacuum SwitchingVACUUM SWITCHING [02.1987 - 08.1988] 4ALC..AE82 EVAPO |
89570-12301 |
US $132.50 |
||
|
17650
|
17650
90910-12007
Valve Assy, Vacuum Switching
[02.1987 - 08.1988] 4ALC..AE82 IDLE-UP |
90910-12007 |
— | ||
|
17810A
|
17810A
17810-16010 Filter Assy, AirAIR [02.1987 - 08.1988] 4ALC..AE82 |
17810-16010 |
US $125.22 |
||
| replacement | |||||
|
17810A
|
17810A
17810-15020
Filter Assy, Air
[02.1987 - 08.1988] 4ALC..AE82 |
17810-15020 |
— | ||
|
23265
|
23265
90917-11023 Filter, Gas, No.1[02.1987 - 08.1988] 4ALC..AE82 |
90917-11023 |
from US $23.41 |
||
|
23271
|
23271
90925-02076
Valve, Thermostatic Vacuum Switching, No.1
[02.1987 - 08.1988] 4ALC..AE82 |
90925-02076 |
— | ||
|
23281
|
23281
90925-01014
Valve, Vacuum Transmitting, No.1
[09.1986 - 09.1987] 4A#..AE82 |
90925-01014 |
— | ||
|
23285A
|
23285A
90917-10049 Valve, Check, No.1[09.1986 - 08.1988] 4A#..AE82 |
90917-10049 |
from US $5.97 |
||
|
23286A
|
23286A
90917-10049 Valve, Check, No.1[02.1987 - 08.1988] 4ALC..AE82..ATM |
90917-10049 |
from US $5.97 |
||
|
23288
|
23288
90925-04012 Jet, No.1[02.1987 - 08.1988] 4ALC..AE82 |
90925-04012 |
US $13.25 |
||
|
23289
|
23289
90925-04034 Jet, No.1[02.1987 - 08.1988] 4ALC..AE82 |
90925-04034 |
US $10.63 |
||
|
25706
|
25706
25706-16121 Pipe Sub-Assy, Vacuum Transmitting, No.1VACUUM TRANSMITTING, NO.1 [02.1987 - 08.1988] 4ALC..AE82 |
25706-16121 |
US $90.27 |
||
|
25706
|
25706
25706-16141 Pipe Sub-Assy, Vacuum Transmitting, No.1[02.1987 - 08.1988] 4ALC..AE82 CALIFORNIA SPEC |
25706-16141 |
US $90.27 |
||
|
25709
|
25709
25708-01040 Valve Sub-Assy, High Altitude Compensator[07.1988 - 08.1988] 4ALC..AE82 |
25708-01040 |
US $246.06 |
||
| replacements | |||||
|
25709
|
25709
17302-16060
Hose Sub-assy, Air
[07.1988 - 08.1988] 4ALC..AE82 |
17302-16060 |
— | ||
|
25709
|
25709
17302-16070
Hose Sub-assy, Air
[07.1988 - 08.1988] 4ALC..AE82 |
17302-16070 |
— | ||
|
25709
|
25709
25708-16070 Pipe Sub-assy, Vacuum Transmitting, No.3[07.1988 - 08.1988] 4ALC..AE82 |
25708-16070 |
US $243.15 |
||
|
25709
|
25709
25708-16010
Valve Sub-Assy, High Altitude Compensator
[02.1987 - 07.1988] 4ALC..AE82 |
25708-16010 |
— | ||
|
25709C
|
25709C
25792-16020 Bracket, High Altitude CompensatorHIGH ALTITUDE COMPENSATOR [02.1987 - 08.1988] 4ALC..AE82 |
25792-16020 |
US $6.84 |
||
|
25730
|
25730
25730-16040 Valve Assy, Electric Bleed Air ControlELECTRIC BLEED AIR CONTROL [02.1987 - 08.1988] 4ALC..AE82 |
25730-16040 |
US $441.17 |
||
| replacement | |||||
|
25730
|
25730
25730-16110 Valve Assy, Electric Bleed Air Control[02.1987 - 08.1988] 4ALC..AE82 |
25730-16110 |
US $439.71 |
||
|
25730A
|
25730A
90096-80002
Ring, O, No.1(For Electric Bleed Air Control Valve)
[02.1987 - 08.1988] 4ALC..AE82 |
90096-80002 |
— | ||
|
25730B
|
25730B
90099-06032
Ring, O, No.2(For Electric Bleed Air Control Valve)
[02.1987 - 08.1988] 4ALC..AE82 |
90099-06032 |
— | ||
|
25860
|
25860
25860-01030
Valve Assy, Vacuum Switching, No.1
[02.1987 - 08.1988] 4ALC..AE82..ATM |
25860-01030 |
— | ||
|
25860
|
25860
25860-01040
Valve Assy, Vacuum Switching, No.1
[02.1987 - 08.1988] 4ALC..AE82..ATM CALIFORNIA SPEC |
25860-01040 |
— | ||
|
25860A
|
25860A
90080-91020
Valve, Vacuum Switching, No.1
[02.1987 - 08.1988] 4ALC..AE82..ATM |
90080-91020 |
— | ||
|
25861
|
25861
25861-01010
Bracket, Vacuum Switching Valve
[02.1987 - 08.1988] 4ALC..AE82..ATM |
25861-01010 |
— | ||
|
25861
|
25861
25861-01020
Bracket, Vacuum Switching Valve
[02.1987 - 08.1988] 4ALC..AE82..ATM CALIFORNIA SPEC |
25861-01020 |
— | ||
|
9011906053
|
9011906053
90119-06053 New Genuine Part |
90119-06053 |
US $0.96 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
from US $3.04 |
||
|
9044511040
|
9044511040
90445-11040
Hose, No.1(For Idle-Up)
|
90445-11040 |
— | ||
|
9044704025
|
9044704025
90447-04025 New Genuine Part |
90447-04025 |
US $3.64 |
||
|
9044704026
|
9044704026
90447-04026 New Genuine Part |
90447-04026 |
US $3.64 |
||
|
9044704059
|
9044704059
90447-04059 New Genuine Part |
90447-04059 |
US $3.64 |
||
|
9044704066
|
9044704066
90447-04066 New Genuine Part |
90447-04066 |
US $3.64 |
||
|
9044704076
|
9044704076
90447-04076 New Genuine Part |
90447-04076 |
US $24.61 |
||
|
9044704103
|
9044704103
90447-04103 New Genuine Part |
90447-04103 |
US $7.43 |
||
|
9044705007
|
9044705007
90447-05007 New Genuine Part |
90447-05007 |
US $3.49 |
||
|
9044705008
|
9044705008
90447-05008 New Genuine Part |
90447-05008 |
US $3.49 |
||
|
9046400329
|
9046400329
90464-00329 Clamp (For Fuel Lid Lock Control Cable) |
90464-00329 |
US $2.62 |
||
| replacement | |||||
|
9046400329
|
9046400329
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.62 |
||
|
9046712001
|
9046712001
90467-12001 Clip(For Carburetor Fuel Hose) |
90467-12001 |
US $2.18 |
||
| replacement | |||||
|
9046712001
|
9046712001
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.68 |
||
|
9046713010
|
9046713010
90467-13010 Clip(For Ventilation Hose No.2) |
90467-13010 |
US $2.48 |
||
| replacement | |||||
|
9046713010
|
9046713010
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.50 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.25 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9331914010
|
9331914010
93319-14010 SCREW |
93319-14010 |
from US $0.90 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
|
9544514075
|
9544514075
95445-14075
New Genuine Part
|
95445-14075 |
— | ||
