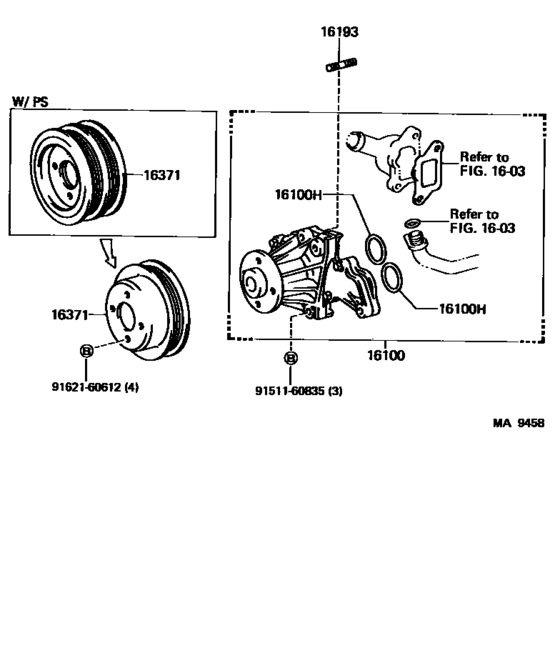

Water Pump ([02.1987 - ] (8702- )4ALC) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- D
- ENGINE
- 4ALC
- TRANSMISSION
- ATM
- Model
- COROLLA FX
- From
- 02.1987
- To
- 08.1988
- Vehicle Model
- Corolla FX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-19105 Pump Assy, Engine Water[02.1987 - 08.1988] 4ALC..AE82 |
16100-19105 |
US $117.94 |
||
| replacement | |||||
|
16100
|
16100
16100-19106
Pump Assy, Engine Water
[02.1987 - 08.1988] 4ALC..AE82 |
16100-19106 |
— | ||
|
16100H
|
16100H
96711-24035
Ring, O(For Water Pump)
[09.1986 - 08.1988] 4A#..AE82 |
96711-24035 |
— | ||
| replacement | |||||
|
16100H
|
16100H
96761-24035 Ring, O(For Water Pump)[09.1986 - 08.1988] 4A#..AE82 |
96761-24035 |
from US $2.79 |
||
|
16193
|
16193
92122-60816 Bolt, Stud(For Water Pump Set)[09.1986 - 08.1988] 4A#..AE82 |
92122-60816 |
US $1.31 |
||
|
16371
|
16371
16371-15050
Pulley, Fan
[02.1987 - 08.1988] 4ALC..AE82 W/PS |
16371-15050 |
— | ||
| replacement | |||||
|
16371
|
16371
16371-15071 Pulley, Fan[02.1987 - 08.1988] 4ALC..AE82 W/PS |
16371-15071 |
US $37.27 |
||
|
16371
|
16371
16371-15060 Pulley, Fan[02.1987 - 08.1988] 4ALC..AE82 |
16371-15060 |
US $21.26 |
||
|
9151160835
|
9151160835
91511-60835
Bolt(For Cylinder Head Set Sub)
|
91511-60835 |
— | ||
| replacement | |||||
|
9151160835
|
9151160835
90105-08200 Bolt(For Cylinder Head Set Sub) |
90105-08200 |
from US $1.42 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.68 |
||
