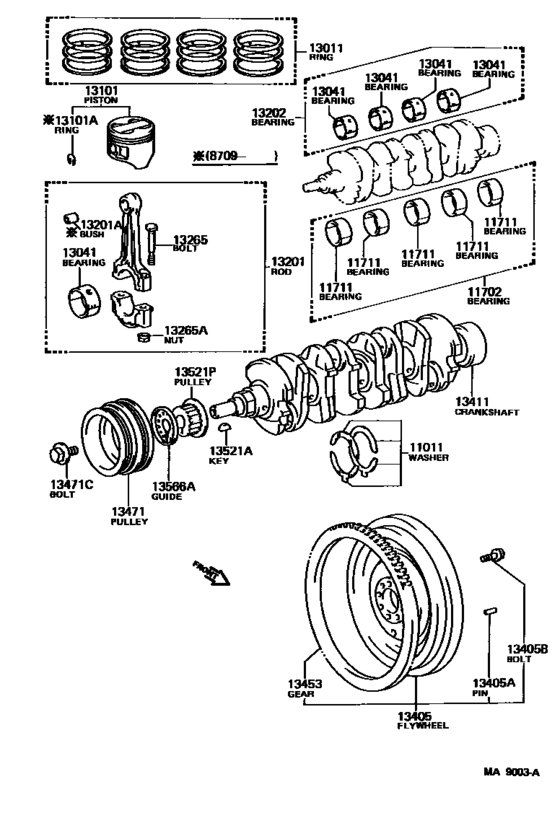

Crankshaft & Piston ([09.1986 - ] (8609- )4AGELC) Diagram Toyota COROLLA
- Year
- 1986 - 1988
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- GTS
- ENGINE
- 4AGELC
- TRANSMISSION
- ATM
- Model
- COROLLA FX
- From
- 09.1986
- To
- 08.1988
- Vehicle Model
- Corolla FX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-15010
Washer Set, Crankshaft Thrust
[09.1986 - 08.1988] 4A#..AE82 STD |
11011-15010 |
— | ||
| replacement | |||||
|
11011
|
11011
11011-15021 Washer Set, Crankshaft Thrust[09.1986 - 08.1988] 4A#..AE82 STD |
11011-15021 |
from US $31.46 |
||
|
11702
|
11702
11704-15050 Bearing Set, Crankshaft[09.1986 - 08.1988] 4A#..AE82 U/S 0.25,U/S 0.25 |
11704-15050 |
US $301.39 |
||
| replacement | |||||
|
11702
|
11702
11704-16010 Bearing Set, Crankshaft[09.1986 - 08.1988] 4A#..AE82 U/S 0.25,U/S 0.25 |
11704-16010 |
from US $117.18 |
||
|
11711
|
11711
11701-15050-01 Bearing, Crankshaft[09.1986 - 08.1988] 4A#..AE82 MARK"1",MARK 1 |
11701-15050-01 |
US $46.45 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-01 Bearing, Crankshaft[09.1986 - 08.1988] 4A#..AE82 MARK"1",MARK 1 |
11701-16010-01 |
from US $20.20 |
||
|
11711
|
11711
11701-15050-02
Bearing, Crankshaft
[09.1986 - 08.1988] 4A#..AE82 MARK"2",MARK 2 |
11701-15050-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-16010-02 Bearing, Crankshaft[09.1986 - 08.1988] 4A#..AE82 MARK"2",MARK 2 |
11701-16010-02 |
from US $18.29 |
||
|
11711
|
11711
11701-15050-03 Bearing, Crankshaft[09.1986 - 08.1988] 4A#..AE82 MARK"3",MARK 3 |
11701-15050-03 |
US $46.45 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-03 Bearing, Crankshaft[09.1986 - 08.1988] 4A#..AE82 MARK"3",MARK 3 |
11701-16010-03 |
from US $20.73 |
||
|
11711
|
11711
11701-15050-04 Bearing, Crankshaft[09.1986 - 08.1988] 4A#..AE82 MARK"4",MARK 4 |
11701-15050-04 |
US $46.45 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-04 Bearing, Crankshaft[09.1986 - 08.1988] 4A#..AE82 MARK"4",MARK 4 |
11701-16010-04 |
from US $20.20 |
||
|
11711
|
11711
11701-15050-05 Bearing, Crankshaft[09.1986 - 08.1988] 4A#..AE82 MARK"5",MARK 5 |
11701-15050-05 |
US $46.45 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-05 Bearing, Crankshaft[09.1986 - 08.1988] 4A#..AE82 MARK"5",MARK 5 |
11701-16010-05 |
US $49.62 |
||
|
13011
|
13011
13011-16070
Ring Set, Piston
[09.1986 - 05.1987] 4AGELC..AE82 STD,STD |
13011-16070 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-16170 Ring Set, Piston[09.1986 - 05.1987] 4AGELC..AE82 STD,STD |
13011-16170 |
US $234.72 |
||
|
13011
|
13011
13011-16170 Ring Set, Piston[05.1987 - 08.1988] 4AGELC..AE82 STD,STD |
13011-16170 |
US $234.72 |
||
|
13011
|
13011
13013-16170
Ring Set, Piston
[09.1986 - 08.1988] 4AGELC..AE82 O/S 0.50,O/S 0.50 |
13013-16170 |
— | ||
|
13041
|
13041
13041-16040-01 Bearing, Connecting Rod[09.1986 - 09.1987] 4AGELC..AE82 MARK"1",MARK 1 |
13041-16040-01 |
US $33.29 |
||
|
13041
|
13041
13041-16040-02 Bearing, Connecting Rod[09.1986 - 09.1987] 4AGELC..AE82 MARK"2",MARK 2 |
13041-16040-02 |
US $33.29 |
||
|
13041
|
13041
13041-16040-03 Bearing, Connecting Rod[09.1986 - 09.1987] 4AGELC..AE82 MARK"3",MARK 3 |
13041-16040-03 |
US $33.29 |
||
|
13041
|
13041
13041-16070-01
Bearing, Connecting Rod
[09.1987 - 08.1988] 4AGELC..AE82 MARK"1",MARK 1 |
13041-16070-01 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-16071-01 Bearing, Connecting Rod[09.1987 - 08.1988] 4AGELC..AE82 MARK"1",MARK 1 |
13041-16071-01 |
US $18.09 |
||
|
13041
|
13041
13041-16070-02
Bearing, Connecting Rod
[09.1987 - 08.1988] 4AGELC..AE82 MARK"2",MARK 2 |
13041-16070-02 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-16071-02 Bearing, Connecting Rod[09.1987 - 08.1988] 4AGELC..AE82 MARK"2",MARK 2 |
13041-16071-02 |
US $18.09 |
||
|
13041
|
13041
13041-16070-03 Bearing, Connecting Rod[09.1987 - 08.1988] 4AGELC..AE82 MARK"3",MARK 3 |
13041-16070-03 |
US $25.48 |
||
| replacement | |||||
|
13041
|
13041
13041-16071-03 Bearing, Connecting Rod[09.1987 - 08.1988] 4AGELC..AE82 MARK"3",MARK 3 |
13041-16071-03 |
from US $18.09 |
||
|
13101
|
13101
13101-16020
Piston Sub-Assy, W/pin
[09.1986 - 09.1987] 4AGELC..AE82 STD,STD |
13101-16020 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-16020-02
Piston Sub-Assy, W/pin
[09.1986 - 09.1987] 4AGELC..AE82 STD,STD |
13101-16020-02 |
— | ||
|
13101
|
13101
13101-16070 Piston Sub-Assy, W/pin[09.1987 - 02.1988] 4AGELC..AE82 STD,STD |
13101-16070 |
US $91.73 |
||
| replacement | |||||
|
13101
|
13101
13101-16070-02
Piston Sub-Assy, W/pin
[09.1987 - 02.1988] 4AGELC..AE82 STD,STD |
13101-16070-02 |
— | ||
|
13101
|
13101
13101-16070-01 Piston Sub-Assy, W/pin[02.1988 - 08.1988] 4AGELC..AE82 STD,STD,MARK 1,MARK1 |
13101-16070-01 |
US $91.73 |
||
|
13101
|
13101
13101-16070-02
Piston Sub-Assy, W/pin
[02.1988 - 08.1988] 4AGELC..AE82 STD,STD,MARK 2,MARK2 |
13101-16070-02 |
— | ||
|
13101
|
13101
13101-16070-03 Piston Sub-Assy, W/pin[02.1988 - 08.1988] 4AGELC..AE82 STD,STD,MARK 3,MARK3 |
13101-16070-03 |
US $91.73 |
||
|
13101
|
13101
13103-16020
Piston Sub-Assy, W/pin
[09.1986 - 09.1987] 4AGELC..AE82 O/S 0.50 |
13103-16020 |
— | ||
|
13101
|
13101
13103-16070
Piston Sub-Assy, W/pin
[09.1987 - 08.1988] 4AGELC..AE82 O/S 0.50,O/S 0.50 |
13103-16070 |
— | ||
|
13101A
|
13101A
90521-23005 Ring, Hole Snap(For Piston Pin)[09.1987 - 08.1988] 4AGELC..AE82 |
90521-23005 |
US $1.49 |
||
|
13201
|
13201
13201-19065 Rod Sub-Assy, Connecting[09.1986 - 09.1987] 4AGELC..AE82 |
13201-19065 |
US $158.70 |
||
| replacement | |||||
|
13201
|
13201
13201-19066 Rod Sub-Assy, Connecting[09.1986 - 09.1987] 4AGELC..AE82 |
13201-19066 |
US $147.06 |
||
|
13201
|
13201
13201-19095
Rod Sub-Assy, Connecting
[09.1987 - 08.1988] 4AGELC..AE82 |
13201-19095 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-19096
Rod Sub-Assy, Connecting
[09.1987 - 08.1988] 4AGELC..AE82 |
13201-19096 |
— | ||
|
13201A
|
13201A
90999-73111
Bush(For Connecting Rod Small End)
[09.1987 - 08.1988] 4AGELC..AE82 |
90999-73111 |
— | ||
|
13202
|
13202
13204-16040 Bearing Set, Connecting Rod[09.1986 - 09.1987] 4AGELC..AE82 U/S 0.25,U/S 0.25 |
13204-16040 |
US $101.92 |
||
|
13202
|
13202
13204-16070 Bearing Set, Connecting Rod[09.1987 - 08.1988] 4AGELC..AE82 U/S 0.25,U/S 0.25 |
13204-16070 |
US $147.06 |
||
| replacement | |||||
|
13202
|
13202
13204-16071 Bearing Set, Connecting Rod[09.1987 - 08.1988] 4AGELC..AE82 U/S 0.25,U/S 0.25 |
13204-16071 |
US $91.73 |
||
|
13265
|
13265
13265-15020 Bolt, Connecting Rod[09.1986 - 08.1987] 4A#..AE82 |
13265-15020 |
US $6.41 |
||
| replacements | |||||
|
13265
|
13265
13265-16010 Bolt, Connecting Rod[09.1986 - 08.1987] 4A#..AE82 |
13265-16010 |
US $8 |
||
|
13265
|
13265
90170-09003 Nut, Hexagon(For Connecting Rod Bolt)[09.1986 - 08.1987] 4A#..AE82 |
90170-09003 |
US $2.88 |
||
|
13265
|
13265
13265-16010 Bolt, Connecting Rod[08.1987 - 08.1988] 4A#..AE82 |
13265-16010 |
US $8 |
||
|
13265A
|
13265A
90170-09001 Nut, Hexagon(For Connecting Rod Bolt)[09.1986 - 08.1987] 4A#..AE82 |
90170-09001 |
US $2.72 |
||
|
13265A
|
13265A
90170-09003 Nut, Hexagon(For Connecting Rod Bolt)[08.1987 - 08.1988] 4A#..AE82 |
90170-09003 |
US $2.88 |
||
|
13411
|
13411
13401-16010
Crankshaft
[09.1986 - 09.1987] 4AGELC..AE82 |
13401-16010 |
— | ||
|
13411
|
13411
13401-16020 Crankshaft[09.1987 - 08.1988] 4AGELC..AE82 |
13401-16020 |
US $1,225.36 |
||
|
13471
|
13471
13470-16030
Pulley, Crankshaft
[09.1986 - 08.1988] 4AGELC..AE82 |
13470-16030 |
— | ||
|
13471C
|
13471C
90119-12127 Bolt(For Crankshaft Pulley Set)[09.1986 - 08.1988] 4AGELC..AE82 |
90119-12127 |
US $3.84 |
||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[09.1987 - 08.1988] 4A#..AE82 |
90280-05010 |
US $4.16 |
||
|
13521A
|
13521A
95161-10519 Key(For Oil Pump Drive Spline)[09.1986 - 09.1987] 4A#..AE82 |
95161-10519 |
from US $1.68 |
||
|
13521P
|
13521P
13521-16010 Pulley, Crankshaft Timing[09.1986 - 08.1988] 4AGELC..AE82 |
13521-16010 |
from US $19.23 |
||
|
13566A
|
13566A
13566-15010 Guide, Timing Belt[09.1986 - 08.1988] 4A#..AE82 |
13566-15010 |
from US $5.44 |
||
