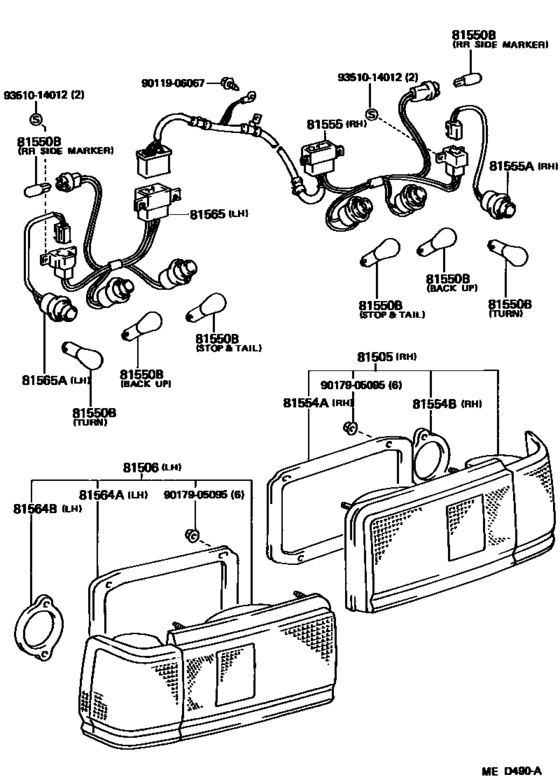

Rear Combination Lamp ([08.1983 - ] (8308- )LB) Diagram Toyota COROLLA
- Year
- 1983 - 1984
- Sales region
- Europe
- Frame
- AE82
- grade
- LE
- body
- LB
- ENGINE
- 4ALC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1983
- To
- 08.1984
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81505
|
81505
81505-19735
Lamp Sub-Assy, Rear Combination, Rh
[08.1983 - 07.1987] AE82,CE80..LB |
81505-19735 |
— | ||
|
81506
|
81506
81506-19595 Lamp Sub-Assy, Rear Combination, LhREAR COMBINATION, LH [08.1983 - 07.1987] AE82,CE80..LB |
81506-19595 |
US $199.47 |
||
|
81550B
|
81550B
90981-11020 Bulb (For Lower Back Finish Panel Emblem)[08.1983 - 07.1987] AE82,CE80 12V 3.8W,12V 3.8W(RR SIDE MARKER) |
90981-11020 |
from US $2.72 |
||
|
81550B
|
81550B
99132-11270 Bulb, Fog Lamp[08.1983 - 07.1987] AE82,CE80 12V 27W,12V 27W(TURN OR BACK UP) |
99132-11270 |
US $3.36 |
||
|
81550B
|
81550B
99132-21270 Bulb (For Front Turn Signal Lamp)[08.1983 - 07.1987] AE82,CE80 12V 27/8W,12V 27/8W(STOP & TAIL) |
99132-21270 |
US $4.32 |
||
|
81554A
|
81554A
81554-1A180
Gasket, Rear Combination Lamp Body, No.1 Rh
[08.1983 - 07.1987] AE82,CE80..LB |
81554-1A180 |
— | ||
|
81554B
|
81554B
81552-1A180
Gasket, Rear Combination Lamp Body, No.2 Rh
[08.1983 - 07.1987] AE82,CE80..LB |
81552-1A180 |
— | ||
|
81555
|
81555
81555-1A200
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.1983 - 08.1985] AE82,CE80..LB |
81555-1A200 |
— | ||
|
81555A
|
81555A
81558-1A200
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.1983 - 07.1987] AE82,CE80..LB |
81558-1A200 |
— | ||
|
81564A
|
81564A
81554-1A180
Gasket, Rear Combination Lamp Body, No.1 Rh
[08.1983 - 07.1987] AE82,CE80..LB |
81554-1A180 |
— | ||
|
81564B
|
81564B
81552-1A180
Gasket, Rear Combination Lamp Body, No.2 Rh
[08.1983 - 07.1987] AE82,CE80..LB |
81552-1A180 |
— | ||
|
81565
|
81565
81565-1A200 Socket & Wire Sub-Assy, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1983 - 08.1985] AE82,CE80..LB |
81565-1A200 |
US $27.52 |
||
|
81565A
|
81565A
81558-1A200
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.1983 - 07.1987] AE82,CE80..LB |
81558-1A200 |
— | ||
|
9011906067
|
9011906067
90119-06067 BOLT |
90119-06067 |
US $1.76 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $1.93 |
||
|
9351014012
|
9351014012
93510-14012 New Genuine Part |
93510-14012 |
US $1.49 |
||
| replacement | |||||
|
9351014012
|
9351014012
93540-A4014 SCREW TAPPING |
93540-A4014 |
US $1.60 |
||
