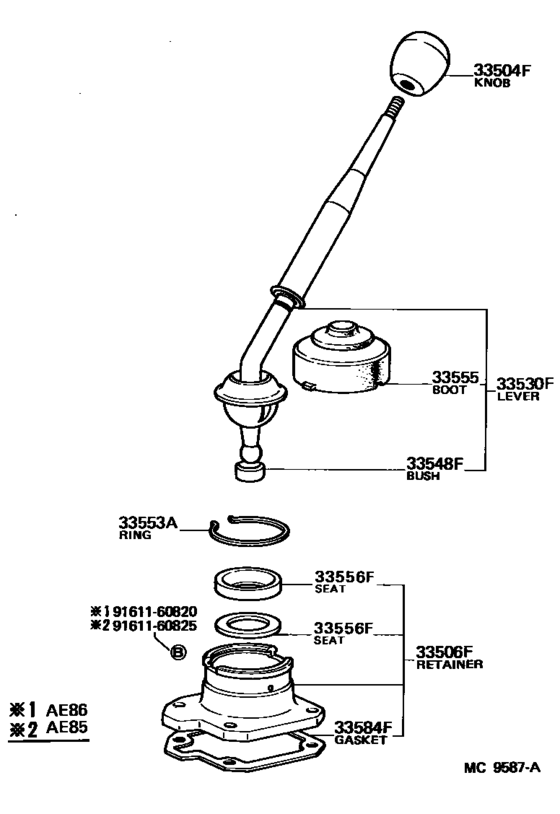

Shift Lever & Retainer ([05.1983 - ] (8305- )5F) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- Japan
- Frame
- AE85
- grade
- GL
- ENGINE
- 3AU
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 05.1983
- To
- 04.1987
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Corolla Levin
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-10020-01
Knob Sub-Assy, Shift Lever
[05.1983 - 01.1984] AE85..5F..GL BLACK,BLACK,TRIM2# |
33504-10020-01 |
— | ||
| replacement | |||||
|
33504F
|
33504F
33504-14050-B8 Knob Sub-Assy, Shift Lever (Black)[05.1983 - 01.1984] AE85..5F..GL BLACK,BLACK,TRIM2# |
33504-14050-B8 |
from US $38.20 |
||
|
33504F
|
33504F
33504-14070-01
Knob Sub-Assy, Shift Lever
[01.1984 - 04.1987] AE85..5F..GL BLACK,BLACK,TRIM2# |
33504-14070-01 |
— | ||
| replacement | |||||
|
33504F
|
33504F
33504-14050-B8 Knob Sub-Assy, Shift Lever (Black)[01.1984 - 04.1987] AE85..5F..GL BLACK,BLACK,TRIM2# |
33504-14050-B8 |
from US $38.20 |
||
|
33506F
|
33506F
33570-14021 Retainer Sub-Assy, Control Shift Lever (For Floor Shift)[05.1983 - 04.1987] AE8#..5F |
33570-14021 |
US $54.42 |
||
|
33530F
|
33530F
33530-12330
Lever Assy, Shift (For Floor Shift)
[05.1983 - 04.1987] AE85..5F |
33530-12330 |
— | ||
|
33548F
|
33548F
33548-14010 Bush, Shift Lever[05.1983 - 04.1987] AE8#..5F |
33548-14010 |
from US $5.28 |
||
|
33553A
|
33553A
90521-49003 Ring, Snap (For Shift Lever Spring Sheet)[05.1983 - 04.1987] AE8#..5F |
90521-49003 |
from US $1.68 |
||
|
33555
|
33555
33555-12090 Boot, Shift Lever[05.1983 - 04.1987] AE8#..5F |
33555-12090 |
from US $9.44 |
||
|
33556F
|
33556F
33556-14010 Seat, Transmission Shift Lever Ball[05.1983 - 04.1987] AE8#..5F T=13.5 |
33556-14010 |
from US $5.05 |
||
|
33556F
|
33556F
33556-14020 Seat, Transmission Shift Lever Ball[05.1983 - 04.1987] AE8#..5F T=3.0 |
33556-14020 |
from US $3.41 |
||
|
33584F
|
33584F
33584-20010 Gasket, Control Shift Lever Retainer (For Floor Shift)[05.1983 - 04.1987] AE8#..5F |
33584-20010 |
from US $0.75 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.31 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
