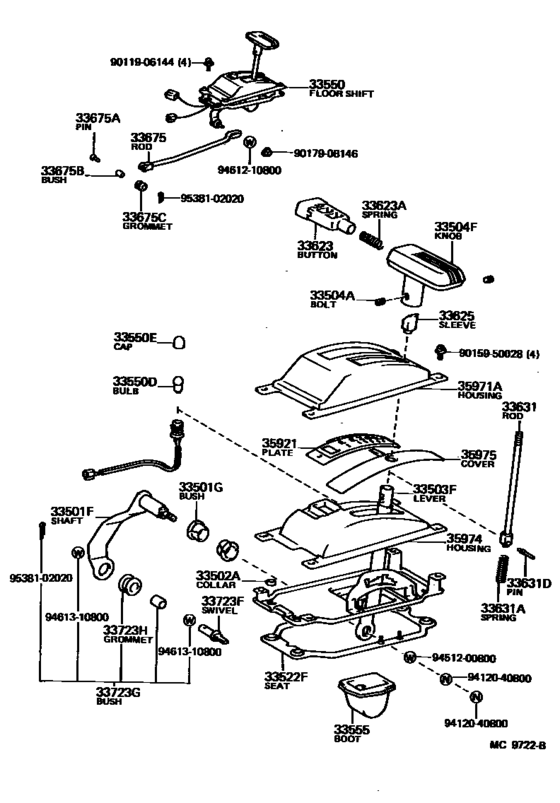

Shift Lever & Retainer ([05.1983 - 05.1985] (8305-8505)4FC) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- Japan
- Frame
- AE85
- grade
- GL
- ENGINE
- 3AU
- TRANSMISSION
- ATM
- Model
- COROLLA LEVIN/COUPE
- From
- 05.1983
- To
- 04.1987
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla Levin
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33501F
|
33501F
33501-12150 Shaft Sub-Assy, Control (For Floor Shift)CONTROL (FOR FLOOR SHIFT) [05.1983 - 04.1987] AE8#..4FC |
33501-12150 |
US $26.35 |
||
|
33501G
|
33501G
90385-16008 Bush (For Floor Shift Control Shaft)[08.1985 - 04.1987] AE8#..4FC |
90385-16008 |
US $9.76 |
||
|
33501G
|
33501G
90385-16045 Bush (For Floor Shift Control Shaft)[05.1983 - 08.1985] AE8#..4FC |
90385-16045 |
from US $1.74 |
||
|
33502A
|
33502A
90387-06005 Collar (For Floor Shift Setting)[05.1983 - 04.1987] AE8#..4FC |
90387-06005 |
US $3.64 |
||
|
33503F
|
33503F
33503-12160
Lever Sub-Assy, Shift(For Floor Shift)
[05.1983 - 05.1985] AE85..4FC |
33503-12160 |
— | ||
|
33503F
|
33503F
33503-12290 Lever Sub-Assy, Shift(For Floor Shift)SHIFT(FOR FLOOR SHIFT) [05.1985 - 04.1987] AE8#..4FC |
33503-12290 |
US $62.90 |
||
|
33504A
|
33504A
90113-05034 Bolt Or Pin (For Shift Lever Knob Setting)[05.1983 - 05.1985] AE85..4FC |
90113-05034 |
US $4.16 |
||
|
33504A
|
33504A
90159-40109 Bolt Or Pin (For Shift Lever Knob Setting)[05.1985 - 04.1987] AE8#..4FC |
90159-40109 |
US $1.28 |
||
|
33504F
|
33504F
33542-24030-01 Knob Sub-Assy, Shift Lever[05.1983 - 05.1985] AE85..4FC BLACK,BLACK,TRIM2# |
33542-24030-01 |
US $74.48 |
||
|
33504F
|
33504F
33542-32040-01 Knob Sub-Assy, Shift Lever[05.1985 - 04.1987] AE8#..4FC BLACK,BLACK,TRIM2# |
33542-32040-01 |
US $65.81 |
||
| replacement | |||||
|
33504F
|
33504F
33542-32040-11
Knob Sub-Assy, Shift Lever
[05.1985 - 04.1987] AE8#..4FC BLACK,BLACK,TRIM2# |
33542-32040-11 |
— | ||
|
33522F
|
33522F
33522-12060 Seat, Shift Lever Plate (For Floor Shift)SHIFT LEVER PLATE (FOR FLOOR SHIFT) [05.1983 - 04.1987] AE8#..4FC |
33522-12060 |
US $20.97 |
||
|
33550
|
33550
33550-12280
Floor Shift Assy, Transmission
[05.1983 - 05.1985] AE85..4FC |
33550-12280 |
— | ||
|
33550
|
33550
33550-12380 Floor Shift Assy, TransmissionTRANSMISSION [05.1985 - 04.1987] AE8#..4FC |
33550-12380 |
US $575.12 |
||
|
33550D
|
33550D
99132-11017 Bulb, Position Indicator Lamp[05.1983 - 04.1987] AE8#..4FC １２Ｖ １．７Ｗ,12V 1.7W |
99132-11017 |
US $2.18 |
||
|
33550E
|
33550E
90339-09001 Cap, Position Indicator Lamp[05.1983 - 04.1987] AE8#..4FC |
90339-09001 |
US $1.92 |
||
|
33555
|
33555
33555-12080
Boot, Shift Lever
[05.1983 - 04.1987] AE8#..4FC |
33555-12080 |
— | ||
|
33623
|
33623
33623-16020-01 Button, Shift Lever KnobSHIFT LEVER KNOB [05.1985 - 04.1987] AE8#..4FC BLACK,BLACK,TRIM2# |
33623-16020-01 |
US $31.60 |
||
| replacement | |||||
|
33623
|
33623
33623-16020-11 Button, Shift Lever Knob[05.1985 - 04.1987] AE8#..4FC BLACK,BLACK,TRIM2# |
33623-16020-11 |
US $31.60 |
||
|
33623
|
33623
33623-22060 Button, Shift Lever Knob[05.1983 - 05.1985] AE85..4FC |
33623-22060 |
US $17.76 |
||
| replacement | |||||
|
33623
|
33623
33623-30040-01 Button, Shift Lever Knob[05.1983 - 05.1985] AE85..4FC |
33623-30040-01 |
US $18.70 |
||
|
33623A
|
33623A
90501-07009 Spring, Compression (For Shift Lever Knob)[05.1983 - 04.1987] AE8#..4FC |
90501-07009 |
from US $4.49 |
||
|
33625
|
33625
33625-22020 Sleeve, Shift Lever Knob[05.1983 - 05.1985] AE85..4FC |
33625-22020 |
US $12.48 |
||
|
33625
|
33625
33625-32010 Sleeve, Shift Lever Knob[05.1985 - 04.1987] AE8#..4FC |
33625-32010 |
US $10.05 |
||
|
33631
|
33631
33631-12051
Rod, Detent
[05.1983 - 05.1985] AE85..4FC |
33631-12051 |
— | ||
|
33631
|
33631
33631-12080
Rod, Detent
[05.1985 - 04.1987] AE8#..4FC |
33631-12080 |
— | ||
|
33631A
|
33631A
90501-07005 Spring, Compression (For Detent Rod)[05.1983 - 04.1987] AE8#..4FC |
90501-07005 |
US $6.87 |
||
|
33631D
|
33631D
90256-04001 Pin, Slotted Spring (For Detent Rod)[05.1983 - 04.1987] AE8#..4FC |
90256-04001 |
US $3.19 |
||
|
33675
|
33675
33702-12040 Rod, Transmission Control (For Floor Shift)TRANSMISSION CONTROL (FOR FLOOR SHIFT) [05.1983 - 04.1987] AE8#..4FC |
33702-12040 |
US $17.91 |
||
|
33675A
|
33675A
90240-08043 Pin, W/hole (For Transmission Control Rod)W/HOLE (FOR MANUAL VALVE LEVER) [05.1983 - 04.1987] AE8#..4FC |
90240-08043 |
US $3.49 |
||
|
33675B
|
33675B
90387-08022 Bush (For Transmission Control Rod)[05.1983 - 04.1987] AE8#..4FC |
90387-08022 |
US $2.48 |
||
|
33675C
|
33675C
90480-17013 Grommet[05.1983 - 04.1987] AE8#..4FC |
90480-17013 |
from US $3.57 |
||
|
33723F
|
33723F
33723-22010 Swivel, Connecting Rod (For Column Shift)[05.1983 - 04.1987] AE8#..4FC |
33723-22010 |
from US $10.24 |
||
|
33723G
|
33723G
90389-08005 Bushing(For Gear Selecting Rod)[05.1985 - 04.1987] AE8#..4FC |
90389-08005 |
from US $1.79 |
||
|
33723G
|
33723G
90999-99017 Bush (For Transmission Control Rod)[05.1983 - 05.1985] AE85..4FC |
90999-99017 |
from US $3.08 |
||
|
33723H
|
33723H
90480-17177 Grommet (For Transmission Control Rod)[05.1983 - 04.1987] AE8#..4FC |
90480-17177 |
from US $2.40 |
||
|
35921
|
35921
35921-12220 Plate, Control Position Indicator[05.1983 - 05.1985] AE85..4FC |
35921-12220 |
US $62.03 |
||
|
35921
|
35921
35921-12240 Plate, Control Position IndicatorCONTROL POSITION INDICATOR [05.1985 - 04.1987] AE8#..4FC |
35921-12240 |
US $56.35 |
||
|
35971A
|
35971A
35971-12070-01 Support, Position IndicatorPOSITION INDICATOR [05.1983 - 05.1985] AE85..4FC BLACK,BLACK,TRIM2# |
35971-12070-01 |
US $30.28 |
||
|
35974
|
35974
35974-12060 Housing, Position Indicator, LowerPOSITION INDICATOR, LOWER [05.1983 - 05.1985] AE85..4FC |
35974-12060 |
US $26.35 |
||
|
35975
|
35975
35975-12090 Cover, Slide (For Position Indicator)SLIDE (FOR POSITION INDICATOR) [05.1983 - 05.1985] AE85..4FC |
35975-12090 |
US $19.22 |
||
|
35975
|
35975
35975-12120 Cover, Slide (For Position Indicator)SLIDE (FOR POSITION INDICATOR) [05.1985 - 04.1987] AE8#..4FC |
35975-12120 |
US $19.22 |
||
|
9011906144
|
9011906144
90119-06144 Bolt, Hexagon (For Shift Lever Plate) |
90119-06144 |
US $0.61 |
||
|
9015950028
|
9015950028
90159-50028 New Genuine Part |
90159-50028 |
US $2.33 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
US $1.28 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.70 |
||
|
9538102020
|
9538102020
95381-02020 PIN |
95381-02020 |
US $0.96 |
||
