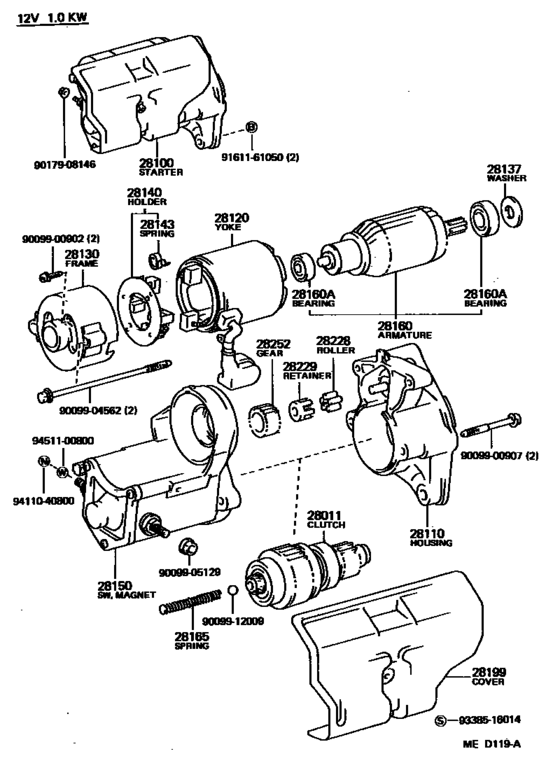

Starter ([08.1983 - ] (8308- )4AG#..LHD..EUR) Diagram Toyota COROLLA
- Year
- 1985 - 1986
- Sales region
- General
- Frame
- AE86
- grade
- GT
- ENGINE
- 4AGEC
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 02.1985
- To
- 08.1986
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla Coupe
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-26042
Clutch Sub-Assy, Starter
[08.1983 - 04.1987] 4AG#..AE86..LHD..EUR 12V 1.0KW |
28011-26042 |
— | ||
|
28100
|
28100
28100-15130 Starter Assy[08.1983 - 04.1987] 4AG#..AE86..LHD..EUR 12V 1.0KW,12V 1.0KW |
28100-15130 |
US $1,351.17 |
||
| replacement | |||||
|
28100
|
28100
28100-15180
Starter Assy
[08.1983 - 04.1987] 4AG#..AE86..LHD..EUR 12V 1.0KW,12V 1.0KW |
28100-15180 |
— | ||
|
28110
|
28110
28110-15130 Housing Assy, Starter Drive[08.1983 - 04.1987] 4AG#..AE86..LHD..EUR 12V 1.0KW |
28110-15130 |
US $94.64 |
||
|
28120
|
28120
28120-26071
Yoke Assy, Starter
[08.1983 - 04.1987] 4AG#..AE86..LHD..EUR 12V 1.0KW |
28120-26071 |
— | ||
|
28130
|
28130
28130-13010 Frame Assy, Starter Commutator End[08.1983 - 04.1987] 4AG#..AE86..LHD..EUR 12V 1.0KW |
28130-13010 |
US $21.11 |
||
|
28140
|
28140
28140-26070 Holder Assy, Starter Brush[08.1983 - 04.1987] 4AG#..AE86..LHD..EUR 12V 1.0KW |
28140-26070 |
from US $16.77 |
||
|
28143
|
28143
90099-17112
Spring, Starter Brush
[08.1983 - 04.1987] 4AG#..AE86..LHD..EUR 12V 1.0KW |
90099-17112 |
— | ||
|
28150
|
28150
28150-13011 Switch Assy, Magnet Starter[08.1983 - 04.1987] 4AG#..AE86..LHD..EUR 12V 1.0KW |
28150-13011 |
US $347.98 |
||
|
28160
|
28160
28160-26070 Armature Assy, Starter[08.1983 - 04.1987] 4AG#..AE86..LHD..EUR 12V 1.0KW |
28160-26070 |
US $324.69 |
||
| replacement | |||||
|
28160
|
28160
28160-26071
Armature Assy, Starter
[08.1983 - 04.1987] 4AG#..AE86..LHD..EUR 12V 1.0KW |
28160-26071 |
— | ||
|
28160A
|
28160A
28253-45020
Bearing, Starter Armature
[08.1983 - 04.1987] 4AG#..AE86..LHD..EUR 12V 1.0KW,SMALL TYPE |
28253-45020 |
— | ||
|
28160A
|
28160A
90099-10113
Bearing, Starter Armature
[08.1983 - 04.1987] 4AG#..AE86..LHD..EUR 12V 1.0KW,LARGE TYPE |
90099-10113 |
— | ||
|
28165
|
28165
28165-26040
Spring, Starter Magnet Switch Return
[08.1983 - 04.1987] 4AG#..AE86..LHD..EUR 12V 1.0KW |
28165-26040 |
— | ||
|
28199
|
28199
28199-15130
Cover, Starter
[08.1983 - 04.1987] 4AG#..AE86..LHD..EUR 12V 1.0KW |
28199-15130 |
— | ||
| replacement | |||||
|
28199
|
28199
28199-63050
Cover, Starter
[08.1983 - 04.1987] 4AG#..AE86..LHD..EUR 12V 1.0KW |
28199-63050 |
— | ||
|
28228
|
28228
28228-26040
Roller, Starter Idle Gear Clutch
[08.1983 - 04.1987] 4AG#..AE86..LHD..EUR 12V 1.0KW |
28228-26040 |
— | ||
|
28229
|
28229
28229-26040
Retainer, Starter Idle Gear
[08.1983 - 04.1987] 4AG#..AE86..LHD..EUR 12V 1.0KW |
28229-26040 |
— | ||
|
28252
|
28252
28254-45020
Pinion, Starter Drive
[08.1983 - 04.1987] 4AG#..AE86..LHD..EUR 12V 1.0KW |
28254-45020 |
— | ||
|
9009900902
|
9009900902
90099-00902
Screw, W/washer(For Bearing Cover Setting)
|
90099-00902 |
— | ||
|
9009900907
|
9009900907
90099-00907
New Genuine Part
|
90099-00907 |
— | ||
|
9009904562
|
9009904562
90099-04562
BOLT
|
90099-04562 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9161161050
|
9161161050
91611-61050
Bolt(For Transaxle & Engine Setting)
|
91611-61050 |
— | ||
| replacement | |||||
|
9161161050
|
9161161050
91612-61050 Bolt(For Transaxle & Engine Setting) |
91612-61050 |
from US $1.29 |
||
|
9338516014
|
9338516014
93385-16014 New Genuine Part |
93385-16014 |
US $1.28 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.94 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
